220957 Series

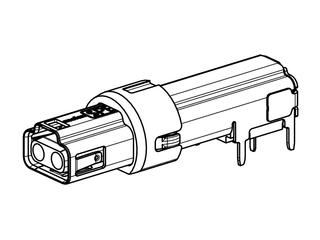

T1 Industrial Single-Pair Ethernet (SPE) PCB Jack, M12, Right-Angle, IP67
Manufacturer: Molex
Catalog
T1 Industrial Single-Pair Ethernet (SPE) PCB Jack, M12, Right-Angle, IP67
Beta
⌘K
T1 Industrial Single-Pair Ethernet (SPE) PCB Jack, M12, Right-Angle, IP67
T1 Industrial Single-Pair Ethernet (SPE) PCB Jack, M12, Right-Angle, IP67
T1 Industrial Single-Pair Ethernet (SPE) PCB Jack, M12, Right-Angle, IP67
| Part | Features | Length [x] | Length [x] | Connector Type | Style | Shielding | Mounting Type | Cable Type | Color | Number of Positions/Contacts | Contact Finish | Contact Material | Number of Rows | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Ports | LED Color | Orientation | Termination | Tab Direction | Ingress Protection | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

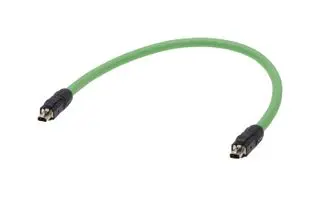

 Molex | Latch Lock Molded Plugs | 1 m | 3.28 ft | Plug to Plug | Industrial Environments - IP20 | Shielded | Free Hanging (In-Line) | Round Cable | Green | 2P2C Single Pair Ethernet (SPE) | |||||||||||||

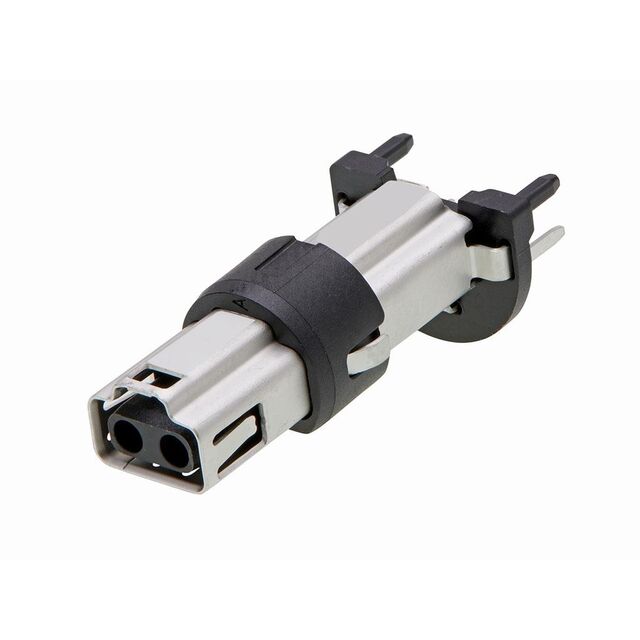

 Molex | Jack | Unshielded | Panel Mount Through Hole | 2P2C Single Pair Ethernet (SPE) | Gold | Brass | 1 | Polyamide (PA) Nylon | -20 C | 80 C | 1 | Does Not Contain LED | 90 ° | Solder | |||||||||

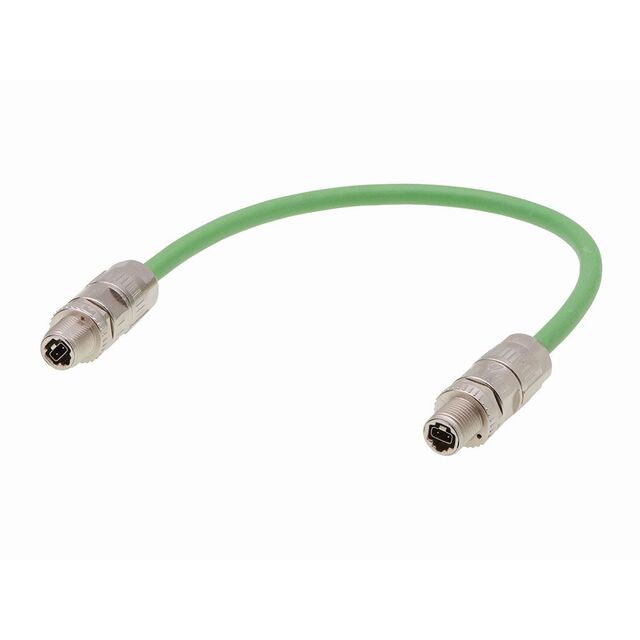

 Molex | Molded Plugs | 1 m | 3.28 ft | Plug to Plug | Industrial Environments - IP65/IP67 | Shielded | Free Hanging (In-Line) | Round Cable | Green | 2P2C Single Pair Ethernet (SPE) | |||||||||||||
 Molex | Jack | Unshielded | Panel Mount Through Hole | 2P2C Single Pair Ethernet (SPE) | Gold | Brass | 1 | Polyamide (PA) Nylon | -25 °C | 80 C | 1 | Does Not Contain LED | Solder | User Selectable | IP67 - Dust Tight Waterproof | Straight | |||||||
 Molex | Jack | Unshielded | Panel Mount Through Hole | 2P2C Single Pair Ethernet (SPE) | Nickel | Brass | 1 | -40 °C | 85 °C | 1 | Does Not Contain LED | 90 ° | Solder | IP67 - Dust Tight Waterproof |
