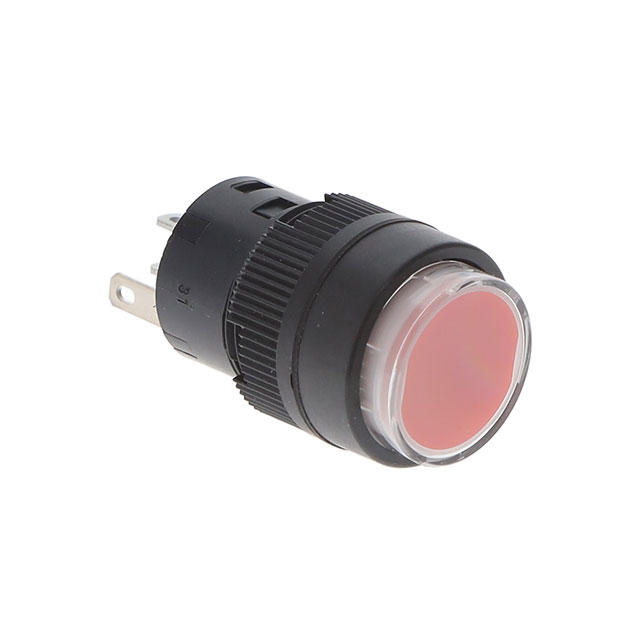

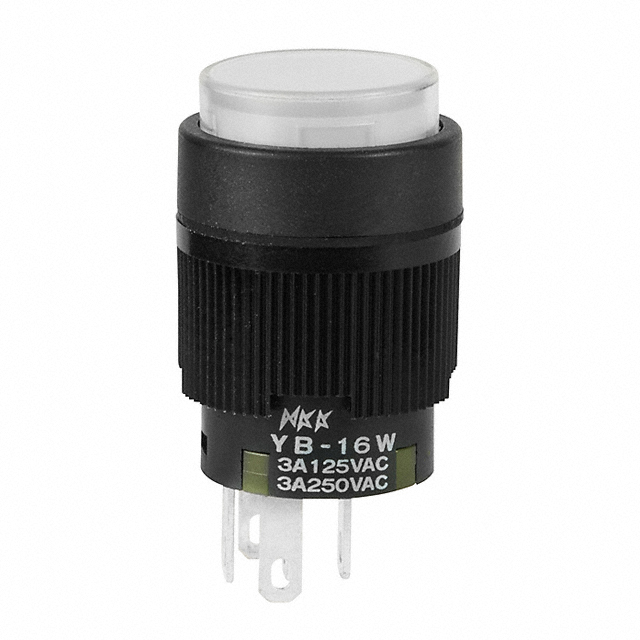

YB16WC Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH PUSH SPDT 0.4VA 28V
| Part | Mechanical Life | Electrical Life | Circuit | Color - Actuator/Cap | Voltage Rating - DC | Voltage Rating - AC | Actuator Marking | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Panel Cutout Dimensions [diameter] | Type | Features | Ingress Protection | Switch Function | Actuator Type | Mounting Type | Illumination Voltage (Nominal) | Illumination Type, Color | Color - Actuator/Cap [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 200000 Cycles | 100000 Cycles | SPDT | White | 28 V | 28 V | No Marking | 0.4 VA | -25 °C | 70 °C | Solder Quick Connect - 0.110" (2.8mm) | 16 mm | Standard | Tactile Feedback | IP65 - Dust Tight Water Resistant | On-On | Button Round | Panel Mount Front | |||
 NKK Switches | 200000 Cycles | 100000 Cycles | SPDT | Clear | 30 V | 125 V | No Marking | 3 A | -25 °C | 50 °C | Solder Quick Connect - 0.110" (2.8mm) | 16 mm | Illuminated Standard | Tactile Feedback | IP65 - Dust Tight Water Resistant | On-On | Button Round | Panel Mount Front | 3.6 VDC | Blue LED | |
 NKK Switches | 200000 Cycles | 100000 Cycles | SPDT | Clear | 30 V | 125 V | No Marking | 3 A | -25 °C | 50 °C | Solder Quick Connect - 0.110" (2.8mm) | 16 mm | Illuminated Standard | Tactile Feedback | IP65 - Dust Tight Water Resistant | On-On | Button Round | Panel Mount Front | 12 VDC | LED Red | |
 NKK Switches | 200000 Cycles | 100000 Cycles | SPDT | Clear | 28 V | 28 V | No Marking | 0.4 VA | -25 °C | 50 °C | Solder Quick Connect - 0.110" (2.8mm) | 16 mm | Illuminated Standard | Tactile Feedback | IP65 - Dust Tight Water Resistant | On-On | Button Round | Panel Mount Front | 12 VDC | Green/Red LED | |
NKK Switches | 200000 Cycles | 100000 Cycles | SPDT | Clear | 28 V | 28 V | No Marking | 0.4 VA | -25 °C | 50 °C | Solder Quick Connect - 0.110" (2.8mm) | 16 mm | Illuminated Standard | Tactile Feedback | IP65 - Dust Tight Water Resistant | On-On | Button Round | Panel Mount Front | 12 VDC | LED Red | |
NKK Switches | 200000 Cycles | 100000 Cycles | SPDT | Clear | 30 V | 125 V | No Marking | 3 A | -25 °C | 50 °C | Solder Quick Connect - 0.110" (2.8mm) | 16 mm | Illuminated Standard | Tactile Feedback | IP65 - Dust Tight Water Resistant | On-On | Button Round | Panel Mount Front | 24 V | Green LED | |
NKK Switches | 200000 Cycles | 100000 Cycles | SPDT | Clear | 28 V | 28 V | No Marking | 0.4 VA | -25 °C | 50 °C | Solder Quick Connect - 0.110" (2.8mm) | 16 mm | Illuminated Standard | Tactile Feedback | IP65 - Dust Tight Water Resistant | On-On | Button Round | Panel Mount Front | 12 VDC | Amber LED | |
NKK Switches | 200000 Cycles | 100000 Cycles | SPDT | Clear | 30 V | 125 V | No Marking | 3 A | -25 °C | 50 °C | Solder Quick Connect - 0.110" (2.8mm) | 16 mm | Illuminated Standard | Tactile Feedback | IP65 - Dust Tight Water Resistant | On-On | Button Round | Panel Mount Front | 12 VDC | Amber LED | |
NKK Switches | 200000 Cycles | 100000 Cycles | SPDT | 28 V | 28 V | No Marking | 0.4 VA | -25 °C | 50 °C | Solder Quick Connect - 0.110" (2.8mm) | 16 mm | Illuminated Standard | Tactile Feedback | IP65 - Dust Tight Water Resistant | On-On | Button Round | Panel Mount Front | 12 VAC | Blue Incandescent | Blue | |
NKK Switches | 200000 Cycles | 100000 Cycles | SPDT | Clear | 30 V | 125 V | No Marking | 3 A | -25 °C | 50 °C | Solder Quick Connect - 0.110" (2.8mm) | 16 mm | Illuminated Standard | Tactile Feedback | IP65 - Dust Tight Water Resistant | On-On | Button Round | Panel Mount Front | 2 VDC | Amber LED |
