PS9332L2 Series

2.0 A Output Current, High CMR, IGBT Gate Drive, Active Miller Clamp, 8-PIN SDIP Photocoupler

Manufacturer: Renesas Electronics Corporation

Catalog

2.0 A Output Current, High CMR, IGBT Gate Drive, Active Miller Clamp, 8-PIN SDIP Photocoupler

Part	Mounting Type	Number of Channels	Voltage - Forward (Vf) (Typ)	Technology	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Pulse Width Distortion (Max) [Max]	Supplier Device Package	Package / Case	Package / Case	Package / Case	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Common Mode Transient Immunity (Min) [Min]	Propagation Delay tpLH / tpHL (Max) [Max]	Current - Peak Output	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Package / Case [y]	Package / Case [y]

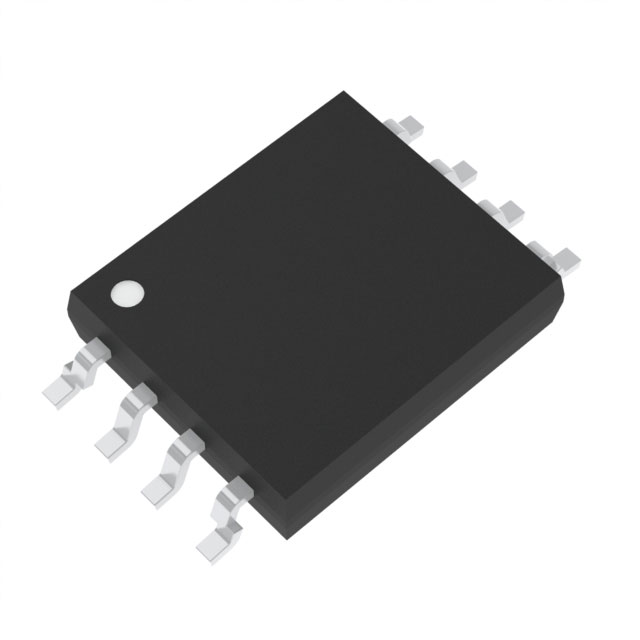

Renesas Electronics Corporation PS9332L-V-E3-AX	Surface Mount	1	1.56 V	Optical Coupling	1.5 A	1.5 A	15 V	30 V	75 ns	8-SOIC	6.8 mm	0.268 in	8-SOIC	25 mA	125 °C	-40 °C	CSA SEMKO UL VDE	50 kV/çs	200 ns	2 A	17 ns	17 ns
Renesas Electronics Corporation PS9332L-V-AX	Surface Mount	1	1.56 V	Optical Coupling	1.5 A	1.5 A	15 V	30 V	75 ns	8-SOIC	6.8 mm	0.268 in	8-SOIC	25 mA	125 °C	-40 °C	CSA UL VDE	50 kV/çs	200 ns	2 A	17 ns	17 ns
Renesas Electronics Corporation PS9332L2-E3-AX	Surface Mount	1	1.56 V	Optical Coupling	1.5 A	1.5 A	15 V	30 V	75 ns	8-SOIC	6.8 mm	0.268 in	8-SOIC	25 mA	125 °C	-40 °C	CSA SEMKO UL VDE	50 kV/çs	200 ns	2 A	17 ns	17 ns

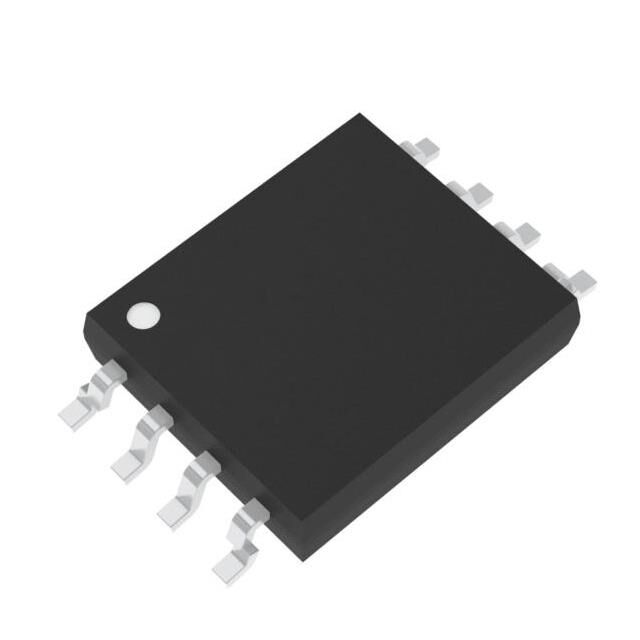

Renesas Electronics Corporation PS9332L-E3-AX	Surface Mount	1	1.56 V	Optical Coupling	1.5 A	1.5 A	15 V	30 V	75 ns	8-SOIC	6.8 mm	0.268 in	8-SOIC	25 mA	125 °C	-40 °C	CSA SEMKO UL VDE	50 kV/çs	200 ns	2 A	17 ns	17 ns
Renesas Electronics Corporation PS9332L-AX	Surface Mount	1	1.56 V	Optical Coupling	1.5 A	1.5 A	15 V	30 V	75 ns	8-SOIC	6.8 mm	0.268 in	8-SOIC	25 mA	125 °C	-40 °C	CSA UL VDE	50 kV/çs	200 ns	2 A	17 ns	17 ns
Renesas Electronics Corporation PS9332L2-V-E3-AX	Surface Mount	1	1.56 V	Optical Coupling	1.5 A	1.5 A	15 V	30 V	75 ns	8-SDIP Gull Wing			8-SOIC	25 mA	125 °C	-40 °C	CSA SEMKO UL VDE	50 kV/çs	200 ns	2 A	17 ns	17 ns	0.268 in	6.81 mm

Catalog

2.0 A Output Current, High CMR, IGBT Gate Drive, Active Miller Clamp, 8-PIN SDIP Photocoupler

Description

The PS9332L and PS9332L2 are optical coupled isolators containing a GaAlAs LED on the input side and a photo diode, a signal processing circuit and a power output transistor on the output side on one chip. The PS9332L and PS9332L2 are designed specifically for high common mode transient immunity (CMR), high output current, active miller clamp and high switching speed. The PS9332L and PS9332L2 are suitable for driving IGBTs and MOS FETs.
