TDA361 Series
Manufacturer: NXP USA Inc.
Beta
⌘K
IC REG LINEAR 9V/5V/3.3V 9-PDBS
| Part | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Operating Temperature (Min) | Operating Temperature (Max) | Output Configuration | Number of Regulators | Package Name | Current - Output (Value 2) | Current - Output (Value 1) | Current - Output (Value 3) | Package / Case | Protection Features | PSRR | Output Type | Mounting Type | Voltage Dropout (Max) (Alt) | Voltage Dropout (Max) | Current - Quiescent (Iq) | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

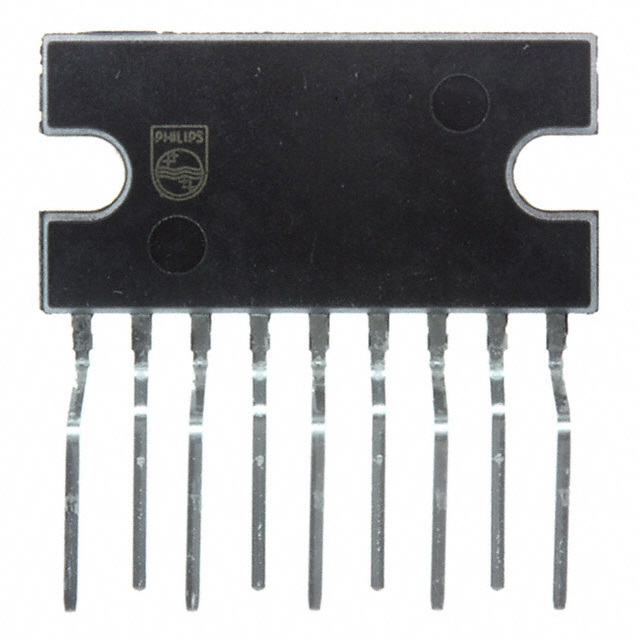

 NXP USA Inc. | 17.5 V | 3.3 V 5 V 9 V | -40 °C | 85 °C | Positive | 3 | 9-PDBS | 600 mA | 1.3 A | 300 mA | 9-SIP Formed Leads | Load Dump Over Current Over Temperature Short Circuit Transient Voltage | 70 dB | Fixed | Through Hole | 1.5 V | 1 V | 40 µA | Enable Hold |
