PPTC302 Series

Catalog

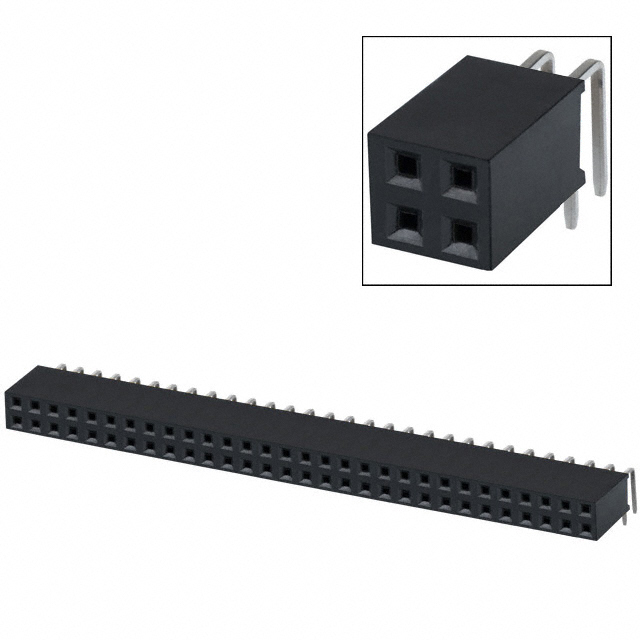

CONN HDR 60POS 0.1 TIN PCB R/A

Part	Contact Shape	Contact Material	Insulation Material	Number of Rows [custom]	Contact Finish - Post	Fastening Type	Termination	Number of Positions	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Mounting Type	Material Flammability Rating	Insulation Color	Voltage Rating	Current Rating (Amps)	Contact Type	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Sullins Connector Solutions PPTC302LJBN	Square	Phosphor Bronze	Polyester	2	Tin	Push-Pull	Solder	60	0.2 in	5.08 mm	0.1 "	2.54 mm	All	-40 C	105 ░C	0.124 in	3.15 mm	Right Angle Through Hole	UL94 V-0	Black	250 V	3 A	Female Socket	Header	0.1 in	2.54 mm
Sullins Connector Solutions PPTC302LJBN-RC	Square	Phosphor Bronze	Polyester	2	Tin	Push-Pull	Solder	60	0.2 in	5.08 mm	0.1 "	2.54 mm	All	-40 C	105 ░C	0.124 in	3.15 mm	Right Angle Through Hole	UL94 V-0	Black	250 V	3 A	Female Socket	Header	0.1 in	2.54 mm
