C146 21R015 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K
CONN HOOD CPLNG BOTTOM SZA10 M25
| Part | Style | Thread Size | Ingress Protection | Housing Material | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Lock Location | Operating Temperature [Min] | Operating Temperature [Max] | Features | Size | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Tuchel Industrial | Bottom Entry Top or Bottom Entry | M25 | IP65 - Dust Tight Water Resistant | Aluminum Alloy Die Cast | 59 mm | 1.161 in | 2.461 " | 2.323 in | 62.5 mm | 29.5 mm | Locking Clip (1) on Hood Top | -40 C | 100 °C | Cable to Cable | A10 | Hood - Coupling |

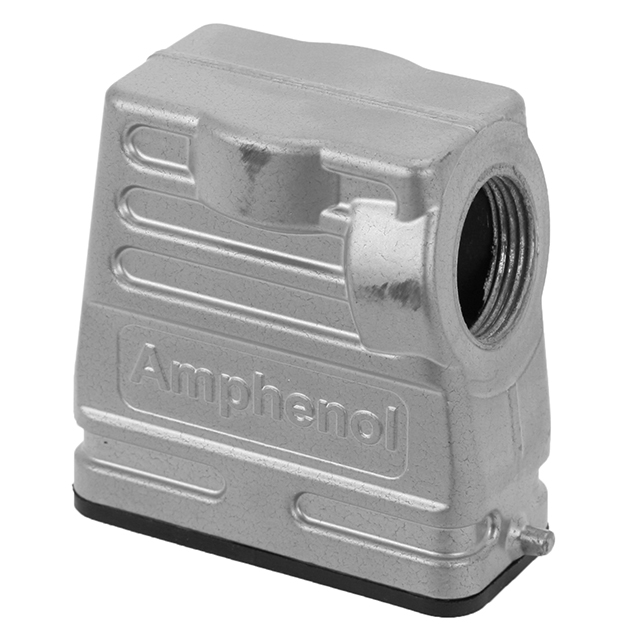

 Amphenol Tuchel Industrial | Side Entry | M25 | IP65 - Dust Tight Water Resistant | Aluminum Alloy Die Cast | 64.5 mm | 1.161 in | 2.461 " | 2.539 " | 62.5 mm | 29.5 mm | Locking Clip (1) on Base Bottom | -40 C | 100 °C | A10 | Hood |
