T 3303 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN RCPT FMALE 4P SILVER SOLDER

Part	Current Rating (Amps)	Fastening Type	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Shielding	Contact Finish - Mating	Color	Number of Positions	Orientation	Primary Material	Mounting Type	Termination	Ingress Protection	Voltage Rating	Shell Material	Connector Type	Contact Shape	Contact Type	Contact Size	Note	Insert Material	Material Flammability Rating	Mounting Feature	Housing Color	Type
Amphenol Tuchel Industrial T 3303 430	10 A	Threaded	M16-4	-40 C	100 °C	Nickel	Shielded	Silver	Silver	4	Keyed	Metal	Panel Mount Through Hole	Solder	IP40	250 V	Die Cast	Receptacle Female Sockets

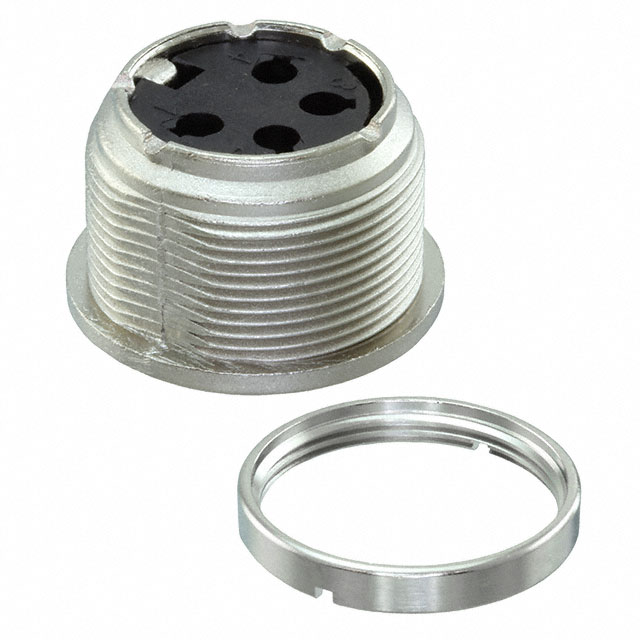

Amphenol Tuchel Industrial T 3303 550		Threaded	M16-4	-40 C	100 °C	Nickel	Shielded			4	Keyed		Panel Mount		IP40		Die Cast	Receptacle Housing	Circular	Crimp	1.5 mm	Contacts Not Included	Thermoplastic	UL94 V-0	Bulkhead - Rear Side Nut	Silver	For Female Sockets

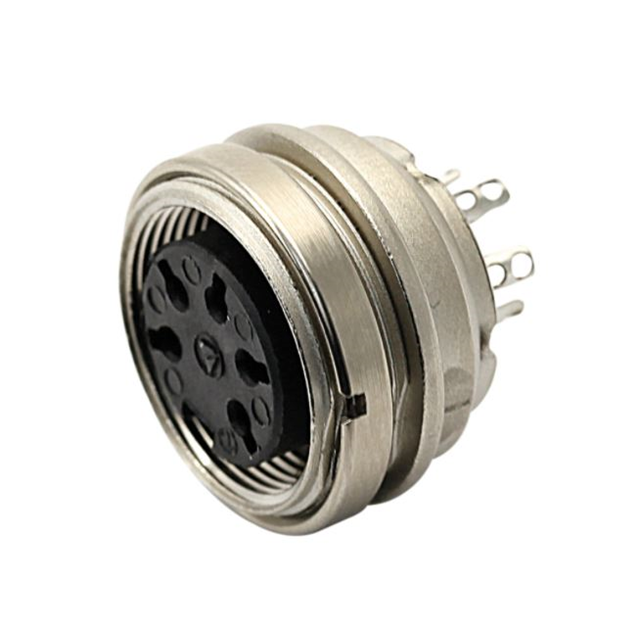

Amphenol Tuchel Industrial T 3303 118	10 A	Threaded	M16-4	-40 C	100 °C	Nickel	Shielded	Gold	Silver	4	Keyed	Metal	Panel Mount		IP40	250 V	Die Cast	Receptacle Female Sockets

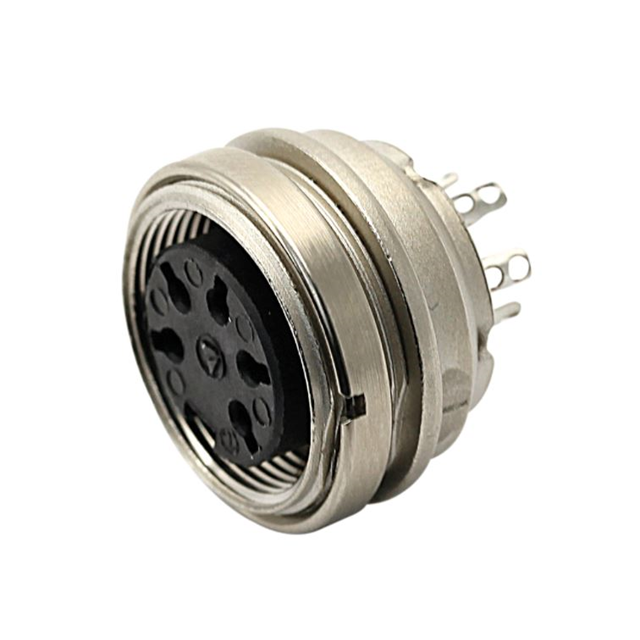

Amphenol Tuchel Industrial T 3303 150		Threaded	M16-4	-40 C	100 °C	Nickel	Shielded			4	Keyed		Panel Mount		IP40		Die Cast	Receptacle Housing	Circular	Crimp	1.5 mm	Contacts Not Included	Thermoplastic	UL94 V-0	Bulkhead - Front Side Nut	Silver	For Female Sockets
Amphenol Tuchel Industrial T 3303 420	10 A	Threaded	M16-4	-40 C	100 °C	Nickel	Shielded	Silver	Silver	4	Keyed	Metal	Panel Mount Through Hole	Solder	IP40	250 V	Die Cast	Receptacle Female Sockets
Amphenol Tuchel Industrial T 3303 300	10 A	Threaded	M16-4	-40 C	100 °C	Nickel	Shielded	Silver	Silver	4	Keyed	Metal	Panel Mount Through Hole	Solder	IP40	250 V	Die Cast	Receptacle Female Sockets
