TPS7A2033 Series
Manufacturer: Texas Instruments
Beta
⌘K
300-MA, ULTRA-LOW-NOISE, LOW-IQ,
| Part | PSRR [Max] | PSRR [Min] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Output Configuration | Voltage - Output (Min/Fixed) | Package / Case | Protection Features | Current - Output | Output Type | Voltage Dropout (Max) [Max] | Number of Regulators | Control Features | Voltage - Input (Max) [Max] | Supplier Device Package | Current - Quiescent (Iq) | Current - Supply (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

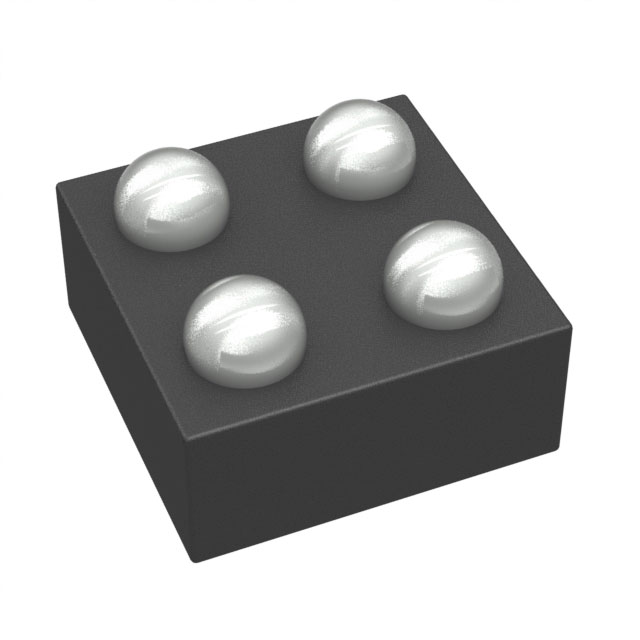

 Texas Instruments | 65 dB | 40 dB | Surface Mount | -40 °C | 125 ¯C | Positive | 3.3 V | 4-BGA DSBGA | Over Current Over Temperature Under Voltage Lockout (UVLO) | 300 mA | 1.81 mOhm | 0.14 V | 1 | Enable Soft Start | 6 V | 4-DSBGA (0.6x0.6) | 15 µA | |
 Texas Instruments | 65 dB | 40 dB | Surface Mount | -40 °C | 125 ¯C | Positive | 3.3 V | 4-XDFN Exposed Pad | Over Current Over Temperature Under Voltage Lockout (UVLO) | 300 mA | 1.81 mOhm | 0.14 V | 1 | Enable | 6 V | 4-X2SON (1x1) | 15 µA | 2 mA |
 Texas Instruments | 65 dB | 40 dB | Surface Mount | -40 °C | 125 ¯C | Positive | 3.3 V | SC-74A SOT-753 | Over Current Over Temperature Under Voltage Lockout (UVLO) | 300 mA | 1.81 mOhm | 0.14 V | 1 | Enable | 6 V | SOT-23-5 | 15 µA | 2 mA |
