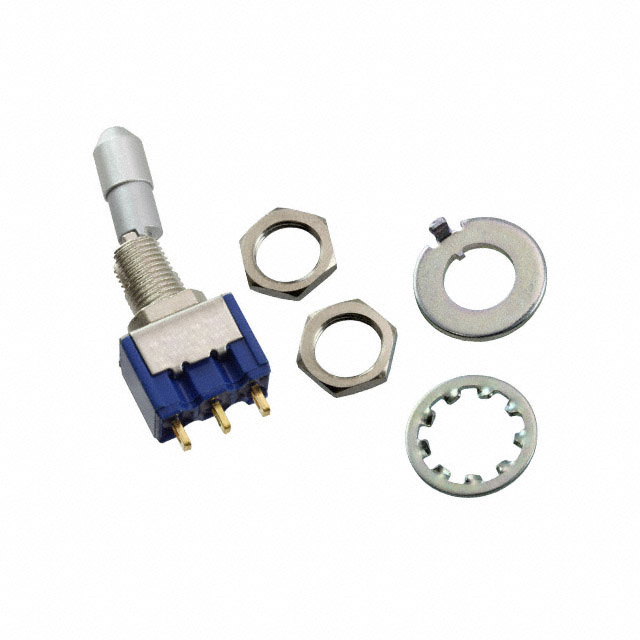

8E1011 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH TOGGLE SPDT 25MA 20V
| Part | Electrical Life | Current Rating (Amps) | Termination Style | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Switch Function | Mounting Type | Actuator Length [x] | Illumination | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Circuit | Features | Bushing Thread | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 50000 Cycles | 25 mA | Solder Lug | 20 V | 6.5 mm | On-On | Panel Mount | 16.5 mm | Non-Illuminated | 85 °C | -30 ░C | Locking Lever | SPDT | Sealed - Flux Protection | 1/4-40 | |
 Nidec Components Corporation | 50000 Cycles | 4 A 6 A | Solder Lug | 30 V | 6.5 mm | On-On | Panel Mount | 16.5 mm | Non-Illuminated | 85 °C | -30 ░C | Locking Lever | SPDT | Sealed - Flux Protection | 1/4-40 | 125 V |
