EAS-3 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

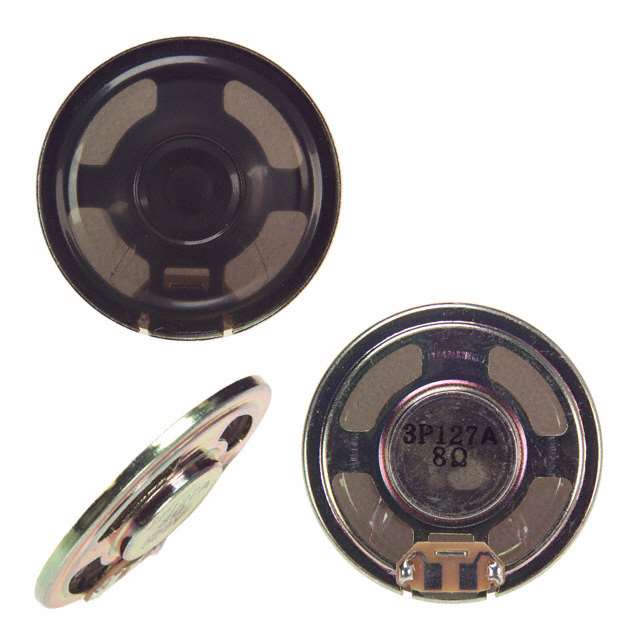

SPEAKER 8OHM 300MW TOP PORT 80DB
| Part | Power - Rated | Frequency Range [Max] | Frequency Range [Min] | Efficiency - Testing | Shape | Impedance | Technology | Type | Frequency - Self Resonant | Size / Dimension [diameter] | Size / Dimension [diameter] | Termination | Efficiency - Type | Port Location | Height - Seated (Max) | Height - Seated (Max) [Max] | Efficiency - dBA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 300 mW | 4 kHz | 530 Hz | 1 mW | Round | 8 Ohms | Magnetic | General Purpose | 530 Hz | 1.417 in | 36 mm | Solder Pads | Sound Pressure Level (SPL) | Top | 4 mm | 0.157 in | 80 dBA |
 Panasonic Electronic Components | 500 mW | 4 kHz | 550 Hz | 1 mW | Round | 8 Ohms | Magnetic | General Purpose | 550 Hz | 1.417 in | 36 mm | Solder Pads | Sound Pressure Level (SPL) | Top | 4 mm | 0.157 in | 84 dBA |
