634-M44 Series
Manufacturer: EDAC Inc.
Beta
⌘K
HIGH DENSITY D-SUB CONNECTORS ROHS COMPLIANT: YES
| Part | Contact Material | Color | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Flange Feature | Flange Feature | Shell Size, Connector Layout | Backset Spacing | Backset Spacing | Contact Finish Thickness | Material Flammability Rating | Current Rating (Amps) | Contact Type | Number of Rows [custom] | Contact Finish | Features | Connector Style | Connector Type | Number of Positions | Termination | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

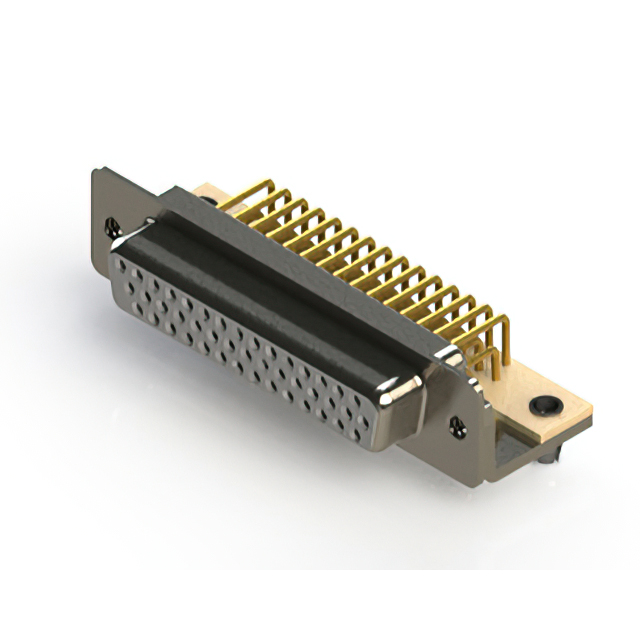

 EDAC Inc. | Copper Alloy | White | Nylon 9T Polyamide (PA9T) | -55 C | 125 °C | Board Edge Right Angle Through Hole | Housing/Shell | 4-40 | 3 | 8.89 mm | 0.35 in | Flash | UL94 V-0 | 5 A | Signal | 3 | Gold | Board Lock Mounting Brackets Shielded | D-Sub High Density | Receptacle Female Sockets | 44 | Solder | |||

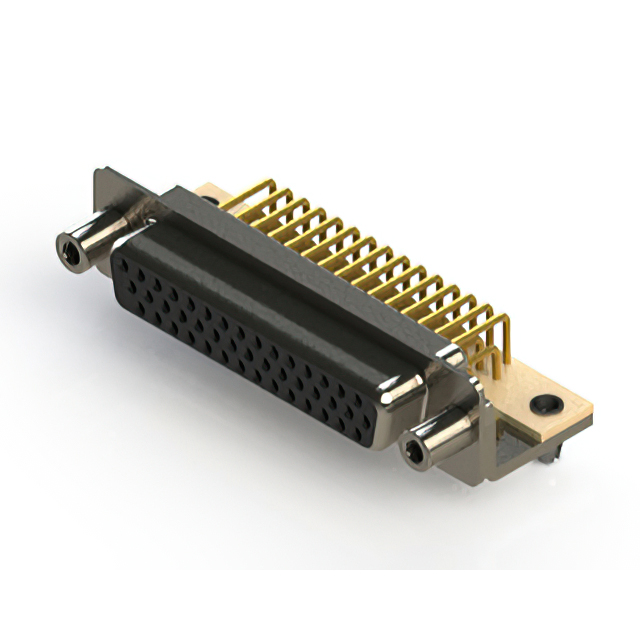

 EDAC Inc. | Copper Alloy | Black | Nylon 9T Polyamide (PA9T) | -55 C | 125 °C | Board Edge Right Angle Through Hole | Housing/Shell | 4-40 | 3 | 8.89 mm | 0.35 in | UL94 V-0 | 5 A | Signal | 3 | Gold | Board Lock Mounting Brackets Shielded | D-Sub High Density | Receptacle Female Sockets | 44 | Solder | Nickel Plated Steel | 0.38 µm | 15 µin | |

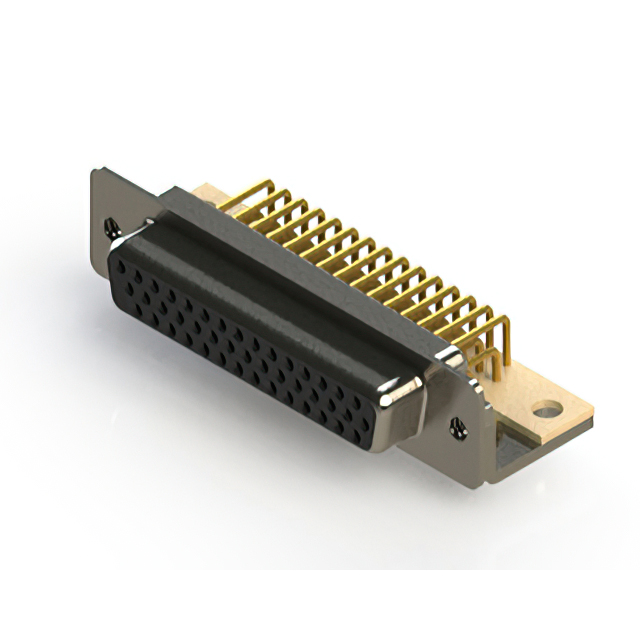

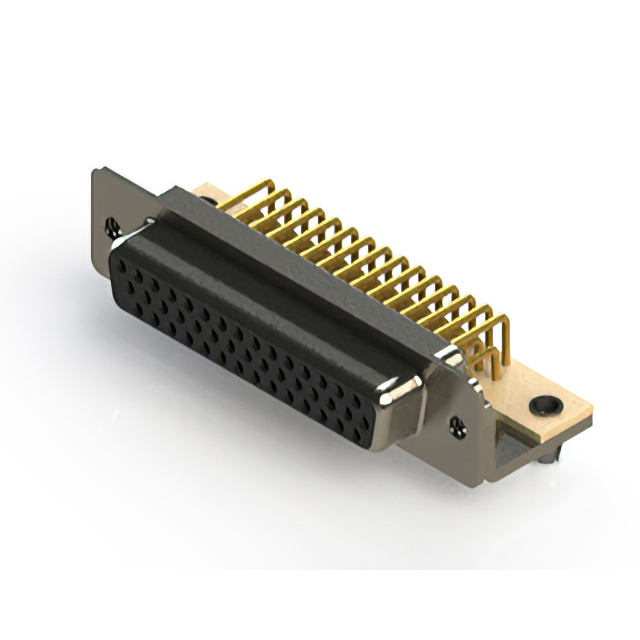

 EDAC Inc. | Copper Alloy | Black | Nylon 9T Polyamide (PA9T) | -55 C | 125 °C | Board Edge Right Angle Through Hole | Housing/Shell | 4-40 | 3 | 8.89 mm | 0.35 in | Flash | UL94 V-0 | 5 A | Signal | 3 | Gold | Shielded | D-Sub High Density | Receptacle Female Sockets | 44 | Solder | Nickel Plated Steel | ||

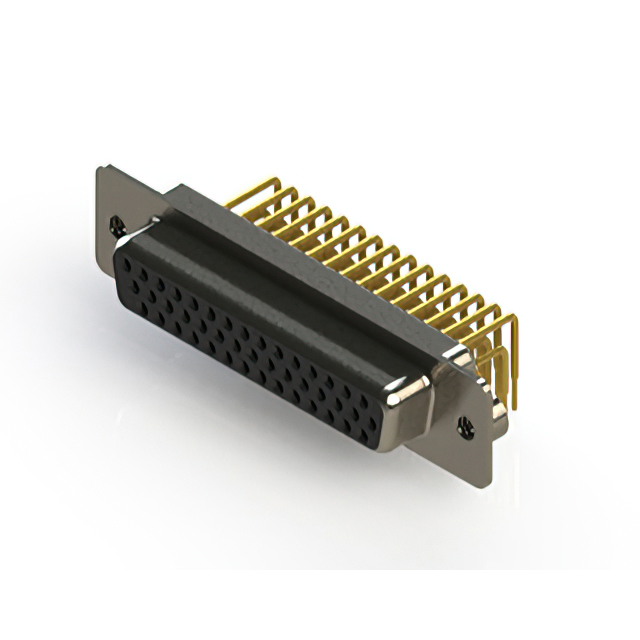

 EDAC Inc. | Copper Alloy | Black | Nylon 9T Polyamide (PA9T) | -55 C | 125 °C | Board Edge Right Angle Through Hole | Housing/Shell (Unthreaded) | 3 | 8.89 mm | 0.35 in | UL94 V-0 | 5 A | Signal | 3 | Gold | Shielded | D-Sub High Density | Receptacle Female Sockets | 44 | Solder | Nickel Plated Steel | 0.76 Ám | 30 Áin | ||

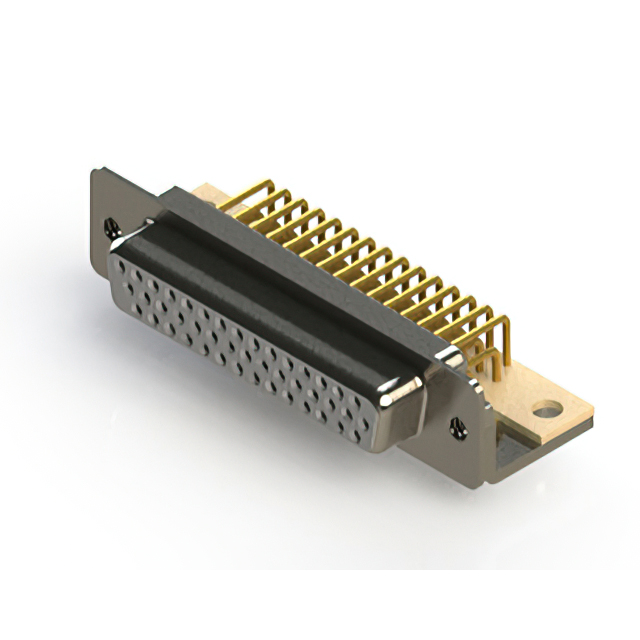

 EDAC Inc. | Copper Alloy | White | Nylon 9T Polyamide (PA9T) | -55 C | 125 °C | Board Edge Right Angle Through Hole | Housing/Shell | 4-40 | 3 | 8.89 mm | 0.35 in | Flash | UL94 V-0 | 5 A | Signal | 3 | Gold | Mounting Brackets Shielded | D-Sub High Density | Receptacle Female Sockets | 44 | Solder | |||
 EDAC Inc. | Copper Alloy | Black | Nylon 9T Polyamide (PA9T) | -55 C | 125 °C | Board Edge Right Angle Through Hole | 4-40 | 3 | 8.89 mm | 0.35 in | Flash | UL94 V-0 | 5 A | Signal | 3 | Gold | Board Lock Mounting Brackets Shielded | D-Sub High Density | Receptacle Female Sockets | 44 | Solder | Nickel Plated Steel | |||
 EDAC Inc. | Copper Alloy | Black | Nylon 9T Polyamide (PA9T) | -55 C | 125 °C | Board Edge Right Angle Through Hole | Housing/Shell | 4-40 | 3 | 8.89 mm | 0.35 in | UL94 V-0 | 5 A | Signal | 3 | Gold | Mounting Brackets Shielded | D-Sub High Density | Receptacle Female Sockets | 44 | Solder | Nickel Plated Steel | 0.76 Ám | 30 Áin | |

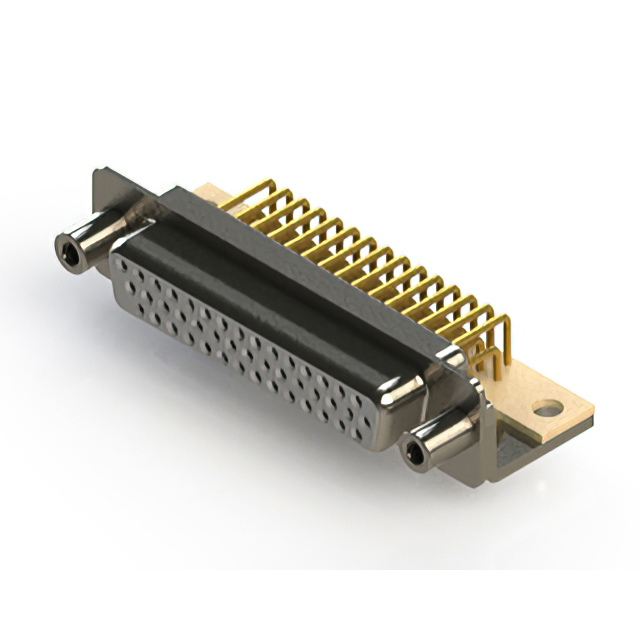

 EDAC Inc. | Copper Alloy | White | Nylon 9T Polyamide (PA9T) | -55 C | 125 °C | Board Edge Right Angle Through Hole | Housing/Shell | 4-40 | 3 | 8.89 mm | 0.35 in | UL94 V-0 | 5 A | Signal | 3 | Gold | Mounting Brackets Shielded | D-Sub High Density | Receptacle Female Sockets | 44 | Solder | 0.38 µm | 15 µin | ||
 EDAC Inc. | Copper Alloy | Black | Nylon 9T Polyamide (PA9T) | -55 C | 125 °C | Board Edge Right Angle Through Hole | Housing/Shell | 4-40 | 3 | 8.89 mm | 0.35 in | Flash | UL94 V-0 | 5 A | Signal | 3 | Gold | Board Lock Mounting Brackets Shielded | D-Sub High Density | Receptacle Female Sockets | 44 | Solder | Nickel Plated Steel | ||
 EDAC Inc. | Copper Alloy | White | Nylon 9T Polyamide (PA9T) | -55 C | 125 °C | Board Edge Right Angle Through Hole | 4-40 | 3 | 8.89 mm | 0.35 in | Flash | UL94 V-0 | 5 A | Signal | 3 | Gold | Mounting Brackets Shielded | D-Sub High Density | Receptacle Female Sockets | 44 | Solder | Nickel Plated Steel |
