842-047 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 47POS 0.100

Part	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Material - Insulation	Number of Positions/Bay/Row	Gender	Number of Positions	Termination	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Read Out	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Color	Number of Rows	Contact Type	Card Type	Contact Finish
EDAC Inc. 842-047-544-103	0.1 "	2.54 mm	125 °C	-40 C	Through Hole	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Diallyl Phthalate (DAP)	47	Female	47	Wire Wrap	0.25 Ám	10 Áin	1	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Green	1	Cantilever	Non Specified - Single Edge	Gold
EDAC Inc. 842-047-540-112	0.1 "	2.54 mm	125 °C	-40 C	Through Hole	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Diallyl Phthalate (DAP)	47	Female	47	Wire Wrap	0.25 Ám	10 Áin	1	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Green	1	Cantilever	Non Specified - Single Edge	Gold
EDAC Inc. 842-047-541-112	0.1 "	2.54 mm	125 °C	-40 C	Through Hole	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Diallyl Phthalate (DAP)	47	Female	47	Wire Wrap	0.25 Ám	10 Áin	1	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Green	1	Cantilever	Non Specified - Single Edge	Gold

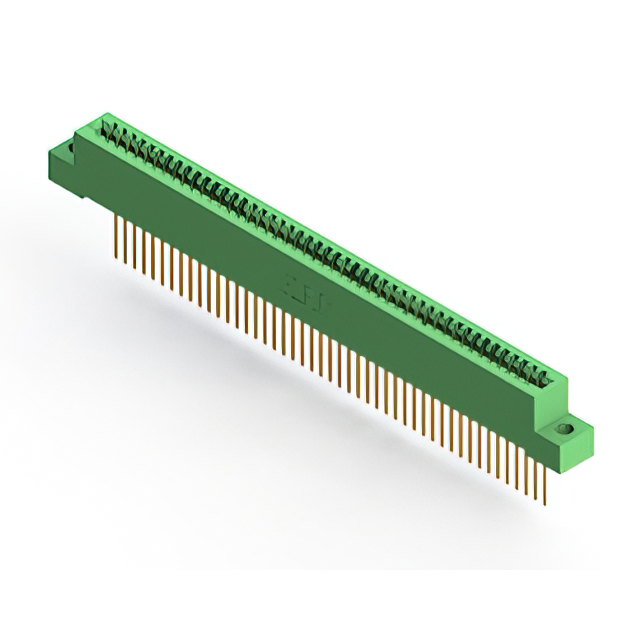

EDAC Inc. 842-047-542-104	0.1 "	2.54 mm	125 °C	-40 C	Through Hole	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Diallyl Phthalate (DAP)	47	Female	47	Wire Wrap	0.25 Ám	10 Áin	1	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Green	1	Cantilever	Non Specified - Single Edge	Gold
EDAC Inc. 842-047-540-107	0.1 "	2.54 mm	125 °C	-40 C	Through Hole		Flush Mount M3 Threaded Insert Top Opening		Diallyl Phthalate (DAP)	47	Female	47	Wire Wrap	0.25 Ám	10 Áin	1	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Green	1	Cantilever	Non Specified - Single Edge	Gold
EDAC Inc. 842-047-542-101	0.1 "	2.54 mm	125 °C	-40 C	Through Hole				Diallyl Phthalate (DAP)	47	Female	47	Wire Wrap	0.25 Ám	10 Áin	1	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Green	1	Cantilever	Non Specified - Single Edge	Gold

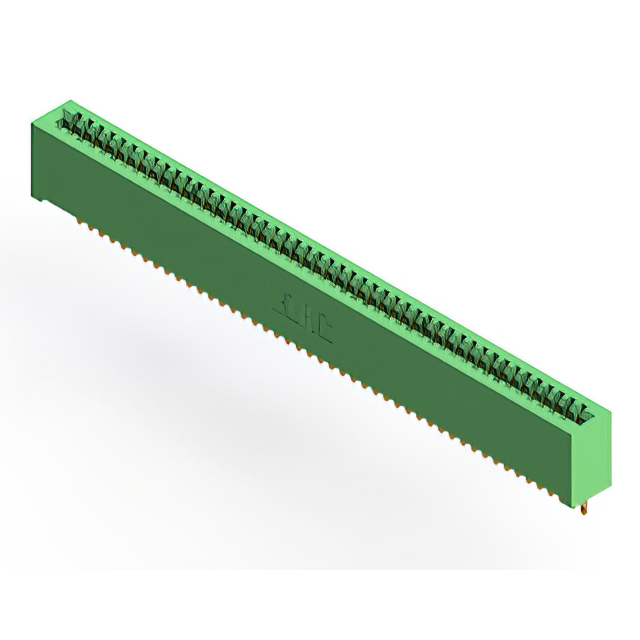

EDAC Inc. 842-047-500-101	0.1 "	2.54 mm	125 °C	-40 C	Through Hole				Diallyl Phthalate (DAP)	47	Female	47	Solder Eyelet(s)	0.25 Ám	10 Áin	1	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Green	1	Cantilever	Non Specified - Single Edge	Gold
EDAC Inc. 842-047-541-108	0.1 "	2.54 mm	125 °C	-40 C	Through Hole		4-40 Flush Mount Threaded Insert Top Opening		Diallyl Phthalate (DAP)	47	Female	47	Wire Wrap	0.25 Ám	10 Áin	1	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Green	1	Cantilever	Non Specified - Single Edge	Gold

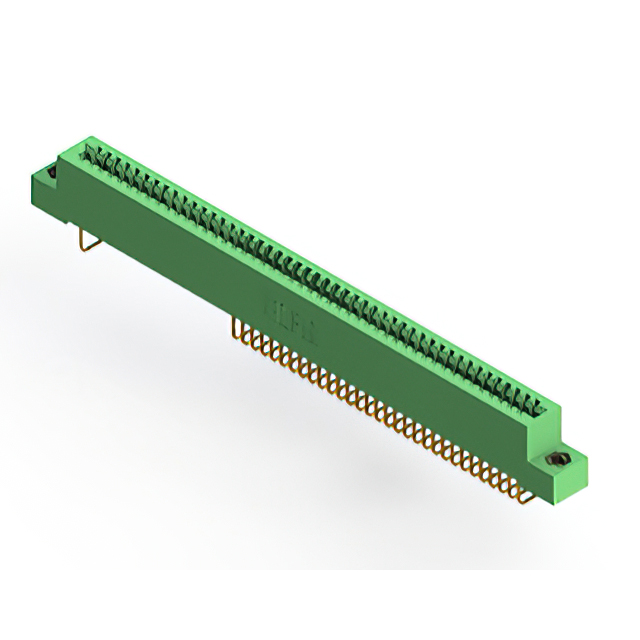

EDAC Inc. 842-047-558-108	0.1 "	2.54 mm	125 °C	-40 C	Right Angle Through Hole		4-40 Flush Mount Threaded Insert Top Opening		Diallyl Phthalate (DAP)	47	Female	47	Solder	0.25 Ám	10 Áin	1	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Green	1	Cantilever	Non Specified - Single Edge	Gold
EDAC Inc. 842-047-541-103	0.1 "	2.54 mm	125 °C	-40 C	Through Hole	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Diallyl Phthalate (DAP)	47	Female	47	Wire Wrap	0.25 Ám	10 Áin	1	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Green	1	Cantilever	Non Specified - Single Edge	Gold
