R18401 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

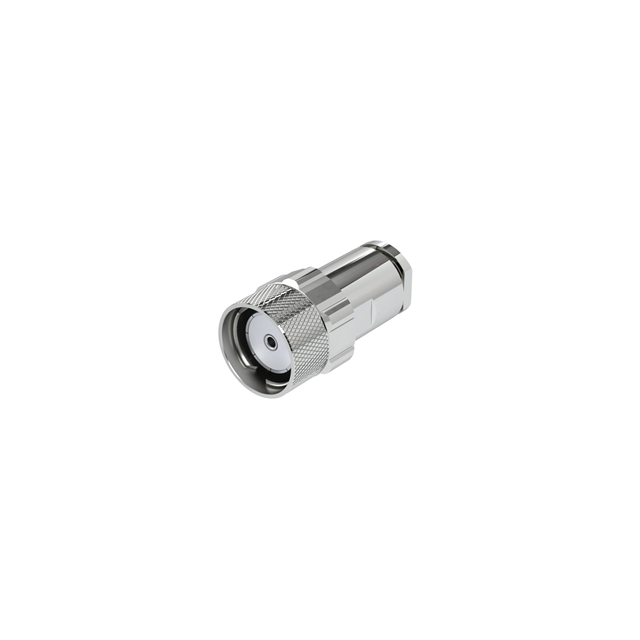

QLI / STRAIGHT PLUG CLAMP TYPE C
| Part | Body Material | Body Finish | Voltage Rating | Center Contact Plating | Dielectric Material | Frequency - Max [Max] | Number of Ports | Mounting Type | Connector Style | Center Contact Material | Ingress Protection | Impedance | Cable Group | Housing Color | Shield Termination | Connector Type | Contact Termination | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | White Bronze | 1400 V | Silver | Polytetrafluoroethylene (PTFE) | 6000 MHz | 1 | Free Hanging (In-Line) | QLI | Bronze | IP67 - Dust Tight Waterproof | 50 Ohms | 213 214 216 225 393 RG-165 | Silver | Clamp | Plug Male Pin | Solder | Bayonet Lock |
