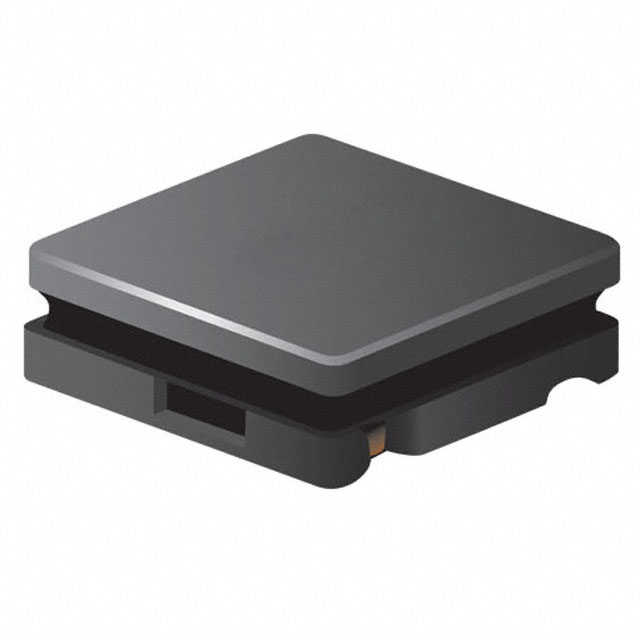

SRN3010 Series

Catalog

POWER INDUCTOR (SMD), 8.2 ΜH, 1.3 A, SEMISHIELDED, 1 A, SRN3010C SERIES

Part	Frequency - Self Resonant	Material - Core	Tolerance	DC Resistance (DCR)	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Current Rating (Amps)	Q @ Freq	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Saturation (Isat)	Mounting Type	Supplier Device Package	Inductance Frequency - Test	DC Resistance (DCR) [Max]
Bourns Inc. SRN3010C-8R2M	45 MHz	Ferrite	20 %	396 mOhm	8.2 µH	0.039 in	1 mm	Drum Core Wirewound	1 A	10 100 kHz	125 °C	-40 C	Shielded	3030 Metric	1212	3 mm	0.118 in	3 mm	0.118 "	1.3 A	Surface Mount	3010	100 kHz
Bourns Inc. SRN3010C-3R3M	86 MHz	Ferrite	20 %		3.3 µH	0.039 in	1 mm	Drum Core Wirewound	2.2 A	10 100 kHz	125 °C	-40 C	Shielded	3030 Metric	1212	3 mm	0.118 in	3 mm	0.118 "	1.4 A	Surface Mount	3010	100 kHz	156 mOhm
Bourns Inc. SRN3010C-1R5M	115 MHz	Ferrite	20 %		1.5 µH	0.039 in	1 mm	Drum Core Wirewound	2.8 A	10 100 kHz	125 °C	-40 C	Shielded	3030 Metric	1212	3 mm	0.118 in	3 mm	0.118 "	1.9 A	Surface Mount	3010	100 kHz	90 mOhm
Bourns Inc. SRN3010C-1R2M	135 MHz	Ferrite	20 %	72 mOhm	1.2 µH	0.039 in	1 mm	Drum Core Wirewound	3.1 A	10 100 kHz	125 °C	-40 C	Shielded	3030 Metric	1212	3 mm	0.118 in	3 mm	0.118 "	2.1 A	Surface Mount	3010	100 kHz
Bourns Inc. SRN3010-1R5Y	110 MHz	Ferrite	30 %		1.5 µH	0.039 in	1 mm	Drum Core Wirewound	2 A	7 7.96 MHz	125 °C	-40 C	Shielded	3030 Metric	1212	3 mm	0.118 in	3 mm	0.118 "	1.65 A	Surface Mount	3010	100 kHz	91 mOhm
Bourns Inc. SRN3010-6R8M	50 MHz	Ferrite	20 %		6.8 µH	0.039 in	1 mm	Drum Core Wirewound	1.3 A	7 7.96 MHz	125 °C	-40 C	Shielded	3030 Metric	1212	3 mm	0.118 in	3 mm	0.118 "	700 mA	Surface Mount	3010	100 kHz	312 mOhm
Bourns Inc. SRN3010-1R0Y	140 MHz	Ferrite	30 %	63 mOhm	1 µH	0.039 in	1 mm	Drum Core Wirewound	2.3 A	7 7.96 MHz	125 °C	-40 C	Shielded	3030 Metric	1212	3 mm	0.118 in	3 mm	0.118 "	2.3 A	Surface Mount	3010	100 kHz

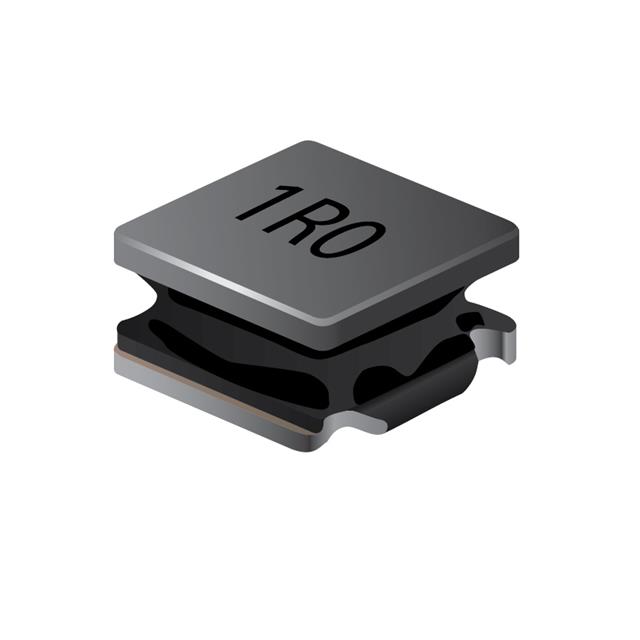

Bourns Inc. SRN3010C-1R0M	145 MHz	Ferrite	20 %		1 µH	0.039 in	1 mm	Drum Core Wirewound	3.4 A	10 100 kHz	125 °C	-40 C	Shielded	3030 Metric	1212	3 mm	0.118 in	3 mm	0.118 "	2.4 A	Surface Mount	3010	100 kHz	67 mOhm
Bourns Inc. SRN3010-100M	40 MHz	Ferrite	20 %	420 mOhm	10 µH	0.039 in	1 mm	Drum Core Wirewound	900 mA	2.52 MHz 11	125 °C	-40 C	Shielded	3030 Metric	1212	3 mm	0.118 in	3 mm	0.118 "	0.6 A	Surface Mount	3010	100 kHz
Bourns Inc. SRN3010-2R2M	85 MHz	Ferrite	20 %		2.2 µH	0.039 in	1 mm	Drum Core Wirewound	1.9 A	7 7.96 MHz	125 °C	-40 C	Shielded	3030 Metric	1212	3 mm	0.118 in	3 mm	0.118 "	1.3 A	Surface Mount	3010	100 kHz	96 mOhm
