LP75W Series

Catalog

LED DRIVER AC/DC CV 12V 6.25A

Part	Mounting Type	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Dimming	Type	Current - Output (Max) [Max]	Termination Style	Power (Watts)	Approval Agency	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Output	Voltage - Input (Max) [Max]	Ratings	Topology	Voltage - Isolation	Efficiency	Voltage - Output [Min]	Voltage - Output [Max]

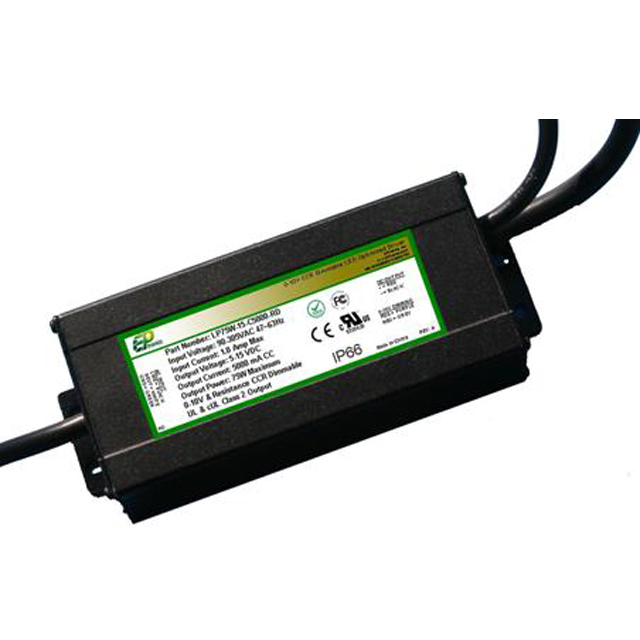

EPtronics, Inc. LP75W-12	Chassis Mount	1	-30 ░C	65 °C	90 VAC	Analog PWM	Constant Voltage	6.25 A	Wire Leads	75 W	CE cUL FCC	OCP OVP SCP	1.47 in	59.2 mm	37.3 mm	2.33 "	5.1 in	129.5 mm	12 V	305 VAC	IP66	AC DC Converter	3750 VDC	84 %
EPtronics, Inc. LP75W-42-C1790	Chassis Mount	1	-30 ░C	65 °C	90 VAC	Analog PWM	Constant Current	1.79 A	Wire Leads	75 W	CE cUL FCC	OCP OVP SCP	1.47 in	59.2 mm	37.3 mm	2.33 "	5.1 in	129.5 mm		305 VAC	IP66	AC DC Converter	3750 VDC	86 %	14 V	42 V
EPtronics, Inc. LP75W-54-C1400-RD	Chassis Mount	1	-30 ░C	65 °C	90 VAC	Analog PWM	Constant Current	1.4 A	Wire Leads	75 W	CE cUL FCC	OCP OVP SCP	1.47 in	59.2 mm	37.3 mm	2.33 "	5.1 in	129.5 mm		305 VAC	IP66	AC DC Converter	3750 VDC	88 %	18 V	54 V
EPtronics, Inc. LP75W-48	Chassis Mount	1	-30 ░C	65 °C	90 VAC	Analog PWM	Constant Voltage	1.56 A	Wire Leads	75 W	CE cUL FCC	OCP OVP SCP	1.47 in	59.2 mm	37.3 mm	2.33 "	5.1 in	129.5 mm	48 V	305 VAC	IP66	AC DC Converter	3750 VDC	88 %
EPtronics, Inc. LP75W-48-C1560-RD	Chassis Mount	1	-30 ░C	65 °C	90 VAC	Analog PWM	Constant Current	1.56 A	Wire Leads	75 W	CE cUL FCC	OCP OVP SCP	1.47 in	59.2 mm	37.3 mm	2.33 "	5.1 in	129.5 mm		305 VAC	IP66	AC DC Converter	3750 VDC	88 %	16 V	48 V
EPtronics, Inc. LP75W-72-C1050-RD	Chassis Mount	1	-30 ░C	65 °C	90 VAC	Analog PWM	Constant Current	1.05 A	Wire Leads	75 W	CE cUL FCC	OCP OVP SCP	1.47 in	59.2 mm	37.3 mm	2.33 "	5.1 in	129.5 mm		305 VAC	IP66	AC DC Converter	3750 VDC	90 %	24 V	72 V
EPtronics, Inc. LP75W-108-C0700-RD	Chassis Mount	1	-30 ░C	65 °C	90 VAC	Analog PWM	Constant Current	700 mA	Wire Leads	75 W	CE cUL FCC	OCP OVP SCP	1.47 in	59.2 mm	37.3 mm	2.33 "	5.1 in	129.5 mm		305 VAC	IP66	AC DC Converter	3750 VDC	90 %	36 V	108 V
