SA24600 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

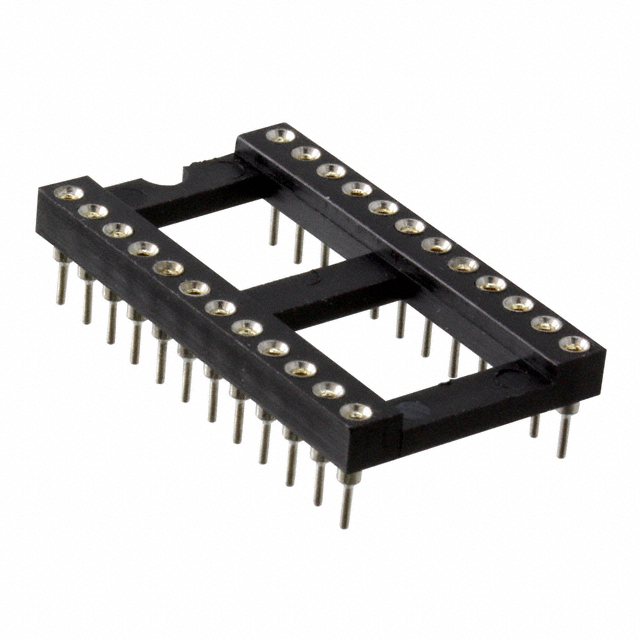

CONN IC DIP SOCKET 24POS GOLD
| Part | Contact Resistance | Current Rating (Amps) | Material Flammability Rating | Housing Material | Type [custom] | Type [custom] | Type | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Post [custom] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Post | Pitch - Post | Contact Finish Thickness - Mating | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) | Features | Contact Finish - Post | Contact Finish - Mating | Mounting Type | Termination | Contact Material - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 4 mOhm | 3 A | UL94 V-0 | Glass Filled Polyester Thermoplastic | 15.24 mm | 0.6 in | DIP | 0.1 " | 2.54 mm | -40 C | 105 ░C | Brass | 200 µin | 5.08 µm | 0.1 in | 2.54 mm | Flash | 12 | 2 | 24 | Open Frame | Tin | Gold | Through Hole | Solder | Beryllium Copper |
