2000890 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

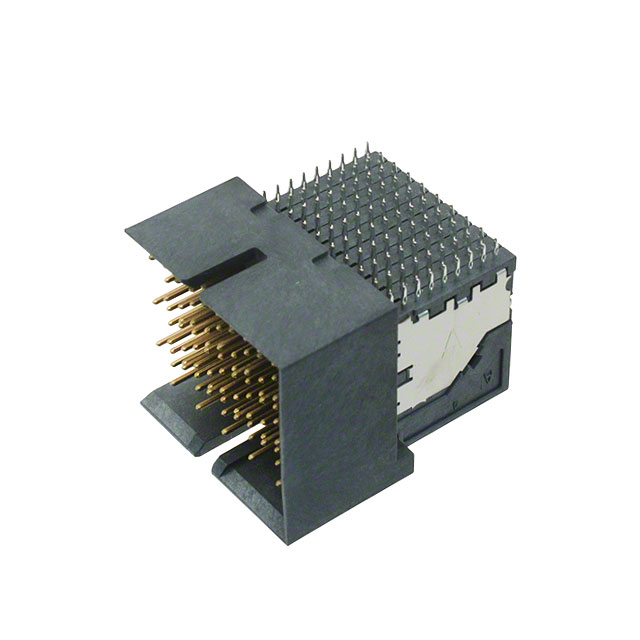

FORTIS ZD 3PR 10COL R/A LEFT MOD
| Part | Connector Usage | Number of Positions | Number of Rows | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Color | Number of Columns | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Material Flammability Rating | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Number of Positions Loaded | Connector Type | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine | ||||||||||||||||||
 TE Connectivity Aerospace, Defense and Marine | Daughtercard | 90 | 9 | Press-Fit | 125 °C | -65 ░C | Black | 10 | 50 µin | 1.27 µm | Gold | UL94 V-0 | 30 | 30 | All | Header Male Pins | Board Edge Right Angle Through Hole | Shielded |
