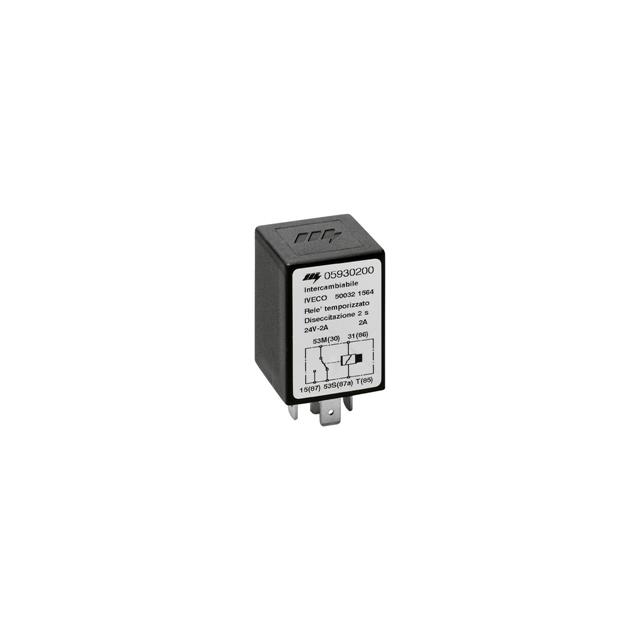

05930200 Series

Relay For Time-Delayed Deenerg. 2 Sec.

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Relay For Time-Delayed Deenerg. 2 Sec.

Part	Function	Voltage - Supply	Relay Type	Delay Time	Delay Time	Timing Adjustment Method	Termination Style	Contact Rating @ Voltage
Littelfuse/Commercial Vehicle Products 05930200	Off-Delay	24 VAC	Mechanical Relay	Fixed	2 Sec	Fixed	Plug In	5 A 32 VDC

Catalog

Relay For Time-Delayed Deenerg. 2 Sec.

Key Features

• 2 s time delay

• Deenergizing: The output deactivates after a set period of time

• Single-pole, double-throw (SPDT) circuitry

• Continuous current rating of 5 A

• Interchangeable with IVECO 500321564

Description

The 05930100 Series 32V Time Delay Relay with 24V Coil is a device with low current absorption that triggers a relay contact after a programmed time via an electronic circuit. This model (05930200) is de-energizing with a 2-second time delay. It has single-pole, double-throw (SPDT) circuitry and a continuous current rating of 5A.
