TE30A4803 Series

Manufacturer: SL POWER / Advanced Energy

Catalog

AC/DC DESKTOP ADAPTER 48V 30W

Part	Applications	Input Connector	Region Utilized	Form	Current - Output (Max) [Max]	Output Connector [diameter]	Output Connector [x]	Output Connector	Polarization	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Efficiency	Cord Length	Cord Length	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output	No Load Power Consumption	Approval Agency	Weight	Weight	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
SL POWER / Advanced Energy TE30A4803Q01	ITE (Commercial)	IEC 320-C18	International	Desktop (Class II)	630 mA	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center	264 VAC	90 VAC	30 Watts	Level VI	57 in	1.45 m	-20 ░C	70 °C	Cord (Sold Separately)	95.5 mm	54 mm	3.76 in	31 mm	1.22 in	2.13 in	48 V	100 mW	CE
SL POWER / Advanced Energy TE30A4803C01	ITE (Commercial)	NEMA 1-15P	North America	Wall Mount	630 mA	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center	264 VAC	90 VAC	30 Watts	Level VI	57 in	1.45 m	-20 ░C	40 °C	Fixed Blade			96 mm		33.6 mm	55 mm	48 V	100 mW	CB CE DEMKO UL	0.551 lb	249.93 g	3.78 in	2.17 "	1.32 in
SL POWER / Advanced Energy TE30A4803N01	ITE (Commercial)	IEC 320-C8	International	Desktop (Class II)	630 mA	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center	264 VAC	90 VAC	30 Watts	Level VI	57 in	1.45 m	-20 ░C	40 °C	Cord (Sold Separately)	95.5 mm	54 mm	3.76 in	31 mm	1.22 in	2.13 in	48 V	100 mW	CB CE CSA UL	0.551 lb	249.93 g
SL POWER / Advanced Energy TE30A4803B01	ITE (Commercial)	NEMA 1-15P Multi-Blade	North America	Wall Mount	630 mA	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center	264 VAC	90 VAC	30 Watts	Level VI	57 in	1.45 m	-20 ░C	40 °C	Fixed Blade Multi-Blade			96 mm		33.6 mm	55 mm	48 V	100 mW	CB CE DEMKO UL	0.551 lb	249.93 g	3.78 in	2.17 "	1.32 in

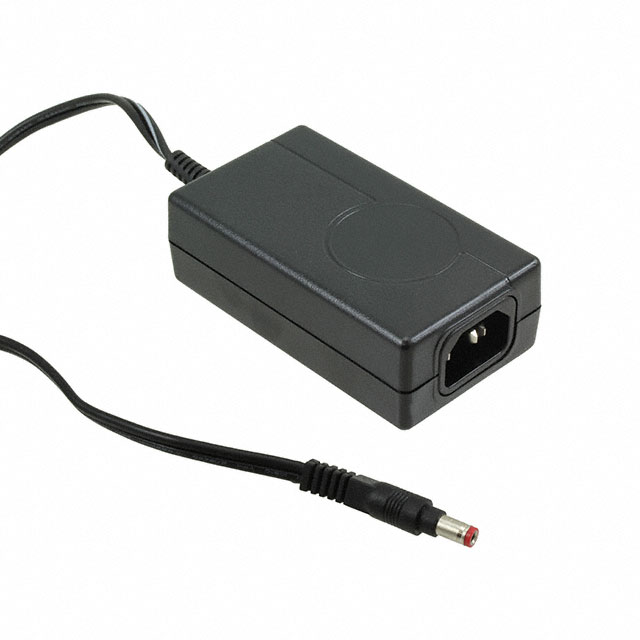

SL POWER / Advanced Energy TE30A4803F01	ITE (Commercial)	IEC 320-C14	International	Desktop (Class I)	630 mA	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center	264 VAC	90 VAC	30 Watts	Level VI	57 in	1.45 m	-20 ░C	40 °C	Cord (Sold Separately)	95.5 mm	54 mm	3.76 in	31 mm	1.22 in	2.13 in	48 V	100 mW	CB CE DEMKO UL	0.551 lb	249.93 g
