G825M08 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

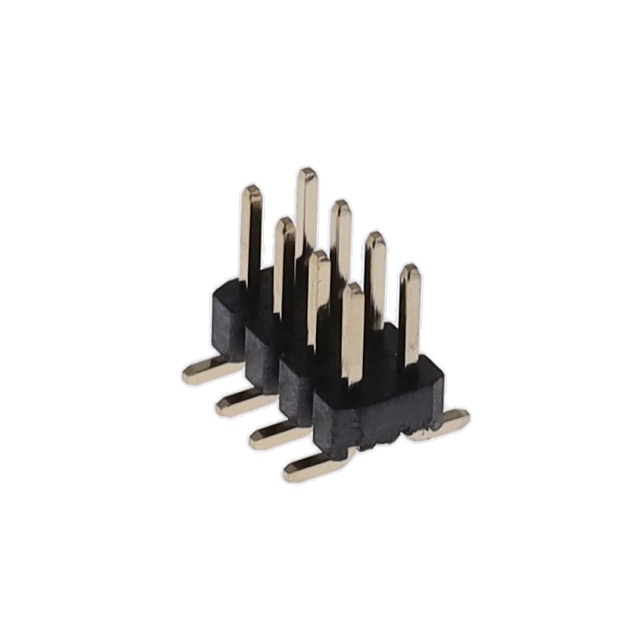

PIN HEADER 2.0MM PITCH STR,SMT,2
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Style | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Termination | Connector Type | Insulation Material | Contact Shape | Number of Rows [custom] | Insulation Height [z] | Insulation Height [z] | Insulation Color | Features | Number of Positions | Number of Positions Loaded | Contact Finish - Mating | Contact Length - Mating | Contact Length - Mating | Material Flammability Rating | Current Rating (Amps) | Fastening Type | Pitch - Mating | Pitch - Mating | Row Spacing - Mating | Row Spacing - Mating | Contact Material | Shrouding | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Flash | Flash | Board to Cable/Wire | Surface Mount | 85 °C | -25 °C | Male Pin | Solder | Header | Liquid Crystal Polymer (LCP) | Square | 2 | 2 mm | 0.079 in | Black | Pick and Place | 8 | All | Gold | 4 mm | 0.157 in | UL94 V-0 | 1.5 A | Push-Pull | 0.079 " | 2 mm | 2 mm | 0.079 in | Copper Alloy | Unshrouded | Gold |
