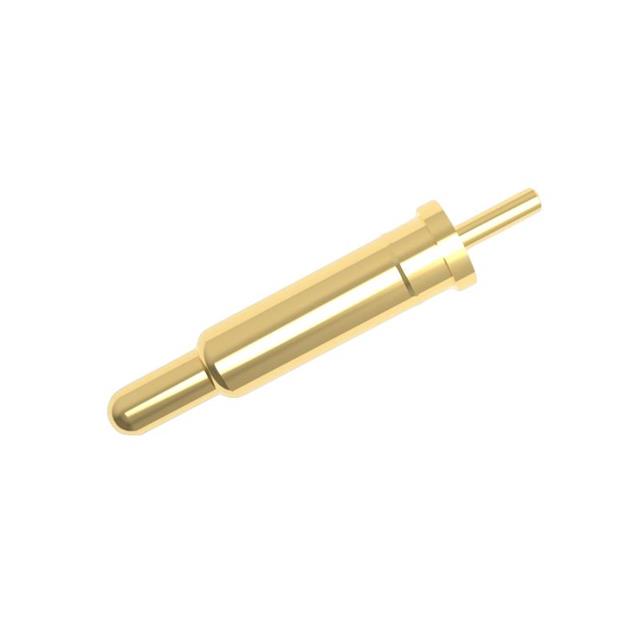

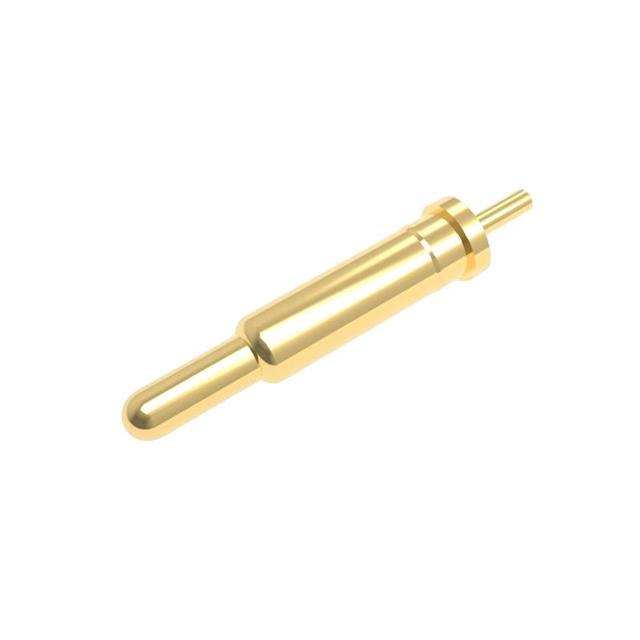

PH-MVP-53 Series
Manufacturer: Adam Tech
Beta
⌘K
CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Maximum Working Height [Max] | Maximum Working Height [Max] | Plunger Size [diameter] | Plunger Size [diameter] | Mating Cycles | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Contact Finish | Current Rating (Amps) | Operating Force - Initial | Mounting Type | Recommended Working Height | Recommended Working Height | Minimum Working Height | Minimum Working Height | Contact Material | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | -55 C | 125 °C | 0.295 in | 7.49 mm | 1 mm | 0.039 in | 1000000 | 1.8 mm | 0.071 in | Gold | 3 A | 70 gf | Through Hole | 0.256 " | 6.5 mm | 0.24 in | 6.1 mm | Brass | Sleeve & Plunger (Pogo Pins) |
