NRVHPRS1 Series

0.8 A, 50 V Surface Mount Fast Recovery

Catalog

0.8 A, 50 V Surface Mount Fast Recovery

Part	Technology	Qualification	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Reverse Recovery Time (trr)	Supplier Device Package	Mounting Type	Speed	Grade	Capacitance @ Vr, F	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]
ON Semiconductor RS1AFA	Standard	AEC-Q101	5 µA	150 °C	-55 °C	150 ns	SOD-123FA	Surface Mount	200 mA 500 ns	Automotive	10 pF	800 mA	1.3 V	SOD-123W	50 V

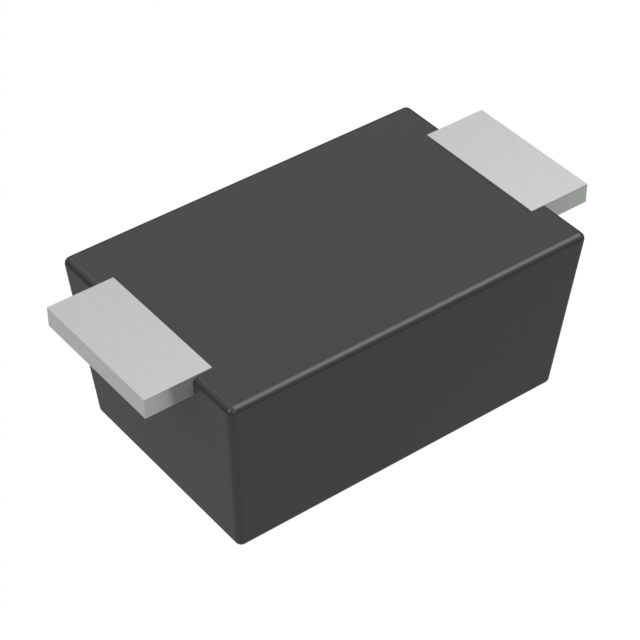

ON Semiconductor NRVHPRS1AFA	Standard		5 µA	150 °C	-55 °C	150 ns	SOD-123FL	Surface Mount	200 mA 500 ns		10 pF	800 mA	1.3 V	SOD-123F	50 V
ON Semiconductor NRVHPRS1KFA	Standard		5 µA	150 °C	-55 °C	500 ns	SOD-123FL	Surface Mount	200 mA 500 ns		10 pF	800 mA	1.3 V	SOD-123F	800 V
ON Semiconductor NRVHPRS1BFA	Standard		5 µA	150 °C	-55 °C	150 ns	SOD-123FL	Surface Mount	200 mA 500 ns		10 pF	800 mA	1.3 V	SOD-123F	100 V

0.8 A, 50 V Surface Mount Fast Recovery

• Glass Passivated Chip Junction

• Fast Switching for High Efficiency

• High Surge Capacity

• Low Forward Voltage: 1.3 V Maximum

• UL Flammability 94V-0 Classification

• MSL 1 per J-STD-020

• RoHS Compliant / Green Molding Compound

• NRVHP Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
