SM05B-SH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

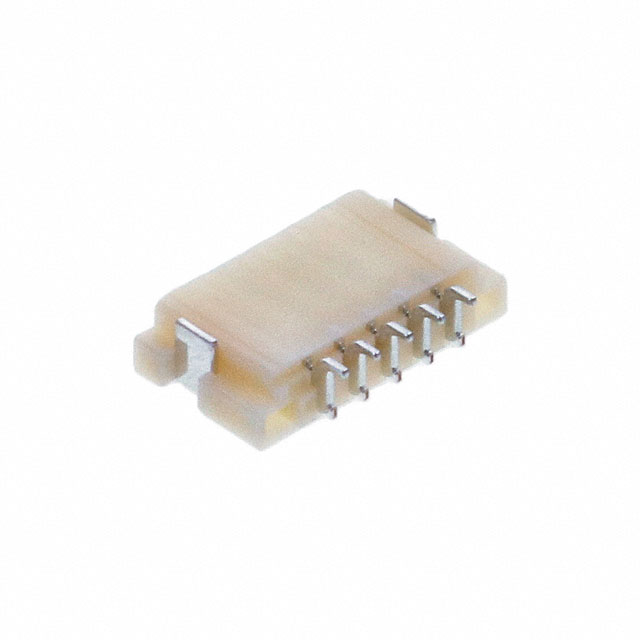

CONN HEADER SMD R/A 5POS 1MM
| Part | Termination | Contact Finish - Post | Shrouding | Pitch - Mating | Pitch - Mating | Contact Type | Insulation Color | Mounting Type | Style | Features | Insulation Height [z] | Insulation Height [z] | Number of Rows | Contact Material | Insulation Material | Number of Positions Loaded | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Number of Positions | Connector Type | Contact Shape | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Solder | Tin | Shrouded - 4 Wall | 1 mm | 0.039 in | Outer Shroud Contact | Natural | Right Angle Surface Mount | Board to Cable/Wire | Solder Retention | 0.069 in | 1.75 mm | 1 | Phosphor Bronze | Nylon Polyamide (PA) | All | Push-Pull | 85 °C | -25 °C | UL94 V-0 | 5 | Header | Rectangular | 50 V |
