D2832 Series
Manufacturer: Harwin Inc.
Beta
⌘K

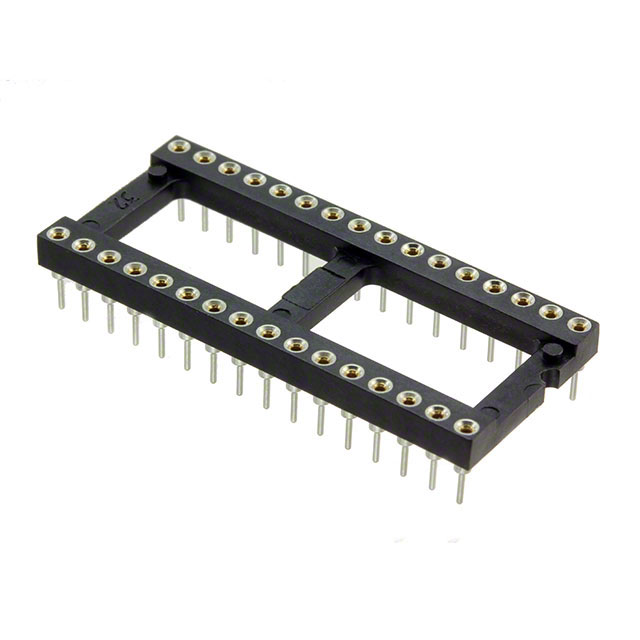

CONN IC DIP SOCKET 32POS GOLD
| Part | Current Rating (Amps) | Termination Post Length [x] | Termination Post Length [x] | Contact Resistance | Material Flammability Rating | Contact Material - Mating | Pitch - Post | Pitch - Post | Contact Material - Post [custom] | Contact Finish - Mating | Termination | Mounting Type | Pitch - Mating | Pitch - Mating | Type [custom] | Type [custom] | Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish - Post | Number of Positions or Pins (Grid) | Features | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 1 A | 3.2 mm | 0.126 in | 10 mOhm | UL94 V-0 | Beryllium Copper | 0.1 in | 2.54 mm | Brass | Gold | Solder | Through Hole | 0.1 " | 2.54 mm | 15.24 mm | 0.6 in | DIP | -55 C | 125 °C | Flash | Tin | 32 | Open Frame | 5 µm | 196.9 µin | Plastic |
