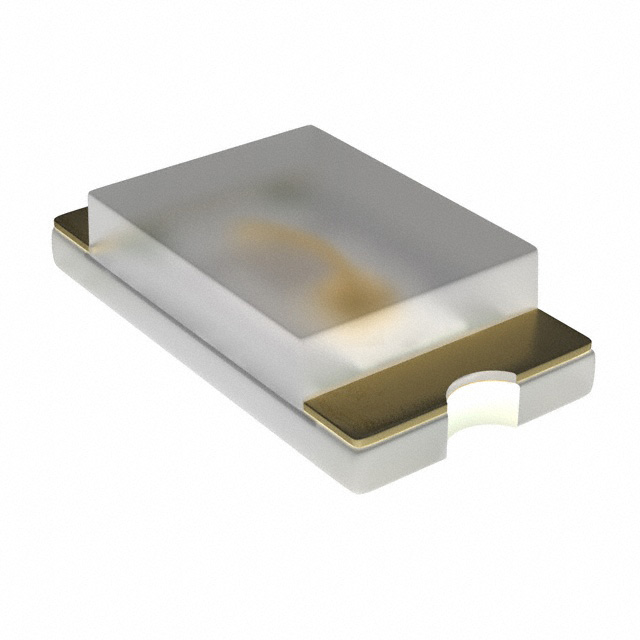

LBQ39E Series

Catalog

LED BLUE DIFFUSED 0603 SMD

Part	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case	Height (Max) [z]	Viewing Angle	Millicandela Rating	Wavelength - Dominant	Lens Color	Current - Test	Lens Size [y]	Lens Size [x]	Color	Size / Dimension [x]	Size / Dimension [y]	Lens Style	Lens Transparency	Mounting Type	Wavelength - Peak	Configuration
ams-OSRAM USA INC. LB Q39E-L2OO-35-1-5-R18	2.85 V	1608 Metric	0603	0.4 mm	130 ° 170 °	29.5 mcd	470 nm	White	5 mA	0.8 mm	1.1 mm	Blue	1.6 mm	0.8 mm	Rectangle with Flat Top	Diffused	Surface Mount	465 nm	Standard
ams-OSRAM USA INC. LB Q39E-N1OO-35-1-5-R18	2.85 V	1608 Metric	0603	0.4 mm	130 ° 170 °	42 mcd	470 nm	White	5 mA	0.8 mm	1.1 mm	Blue	1.6 mm	0.8 mm	Rectangle with Flat Top	Diffused	Surface Mount	465 nm	Standard
