PSAC30U Series
Manufacturer: Phihong USA
Beta
⌘K

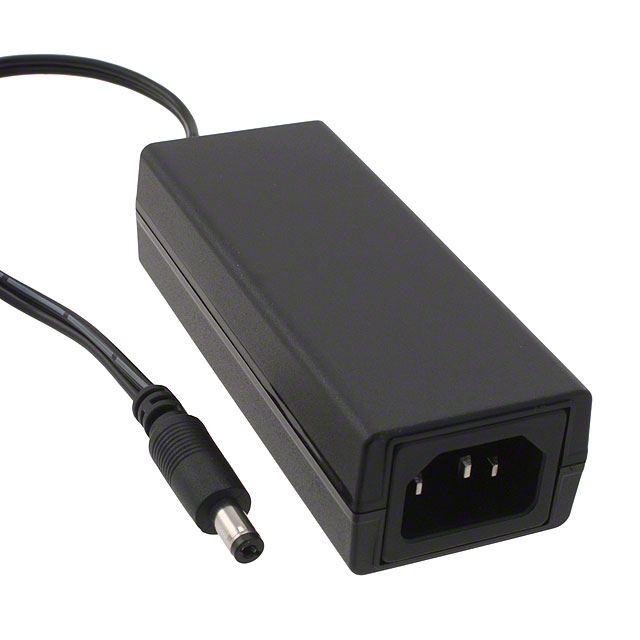

AC/DC DESKTOP ADAPTER 48V 30W
| Part | Weight [custom] | Weight [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Voltage - Output | Applications | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Approval Agency | Output Connector [x] | Output Connector [diameter] | Output Connector | Input Type | Polarization | Efficiency | Current - Output (Max) [Max] | Form | Voltage - Input [Max] | Voltage - Input [Min] | Cord Length | Cord Length | Region Utilized | Input Connector | Cord Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phihong USA | 140 g | 4.94 oz | 40 °C | 0 °C | 30 Watts | 48 V | ITE (Commercial) | 103.4 mm | 42 mm | 4.07 in | 1.13 " | 1.65 " | 28.7 mm | CE cULus | 10 mm | 2.1 mm 5.5 mm | Barrel Plug | Cord (Sold Separately) | Positive Center | Level VI | 625 mA | Desktop (Class I) | 264 VAC | 90 VAC | 1.5 m | 59 in | International | IEC 320-C14 | |
Phihong USA | 140 g | 4.94 oz | 40 °C | 0 °C | 27 W | 9 V | ITE (Commercial) | 103.4 mm | 42 mm | 4.07 in | 1.13 " | 1.65 " | 28.7 mm | CE cULus | 10 mm | 2.1 mm 5.5 mm | Barrel Plug | Cord (Sold Separately) | Positive Center | Level VI | 3 A | Desktop (Class I) | 264 VAC | 90 VAC | 1.5 m | 59 in | International | IEC 320-C14 | |
Phihong USA | 140 g | 4.94 oz | 40 °C | 0 °C | 20 W | 5 V | ITE (Commercial) | 103.4 mm | 42 mm | 4.07 in | 1.13 " | 1.65 " | 28.7 mm | CE cULus | 10 mm | 2.1 mm 5.5 mm | Barrel Plug | Cord (Sold Separately) | Positive Center | Level VI | 4 A | Desktop (Class I) | 264 VAC | 90 VAC | 39.4 in | International | IEC 320-C14 | 1 m | |
Phihong USA | 140 g | 4.94 oz | 40 °C | 0 °C | 30 Watts | 24 V | ITE (Commercial) | 103.4 mm | 42 mm | 4.07 in | 1.13 " | 1.65 " | 28.7 mm | CE cULus | 10 mm | 2.1 mm 5.5 mm | Barrel Plug | Cord (Sold Separately) | Positive Center | Level VI | 1.25 A | Desktop (Class I) | 264 VAC | 90 VAC | 1.5 m | 59 in | International | IEC 320-C14 | |
Phihong USA | 140 g | 4.94 oz | 40 °C | 0 °C | 30 Watts | 56 V | ITE (Commercial) | 103.4 mm | 42 mm | 4.07 in | 1.13 " | 1.65 " | 28.7 mm | CE cULus | 10 mm | 2.1 mm 5.5 mm | Barrel Plug | Cord (Sold Separately) | Positive Center | Level VI | 540 mA | Desktop (Class I) | 264 VAC | 90 VAC | 1.5 m | 59 in | International | IEC 320-C14 | |
Phihong USA | 140 g | 4.94 oz | 40 °C | 0 °C | 30 Watts | 12 V | ITE (Commercial) | 103.4 mm | 42 mm | 4.07 in | 1.13 " | 1.65 " | 28.7 mm | CE cULus | 10 mm | 2.1 mm 5.5 mm | Barrel Plug | Cord (Sold Separately) | Positive Center | Level VI | 2.5 A | Desktop (Class I) | 264 VAC | 90 VAC | 1.5 m | 59 in | International | IEC 320-C14 |
