B512 Series

Catalog

SCR MODULE 600V MODULE

Part	Voltage - Gate Trigger (Vgt) (Max) [Max]	Voltage - Off State	Number of SCRs, Diodes [custom]	Number of SCRs, Diodes [custom]	Mounting Type	Package / Case	Structure	Current - Gate Trigger (Igt) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)
Sensata-Crydom B512SE-2T	2.5 V	600 V	2	2	Chassis Mount	Module	Bridge Single Phase - SCRs/Diodes (Layout 1)	60 mA	-40 C	125 °C	250 A

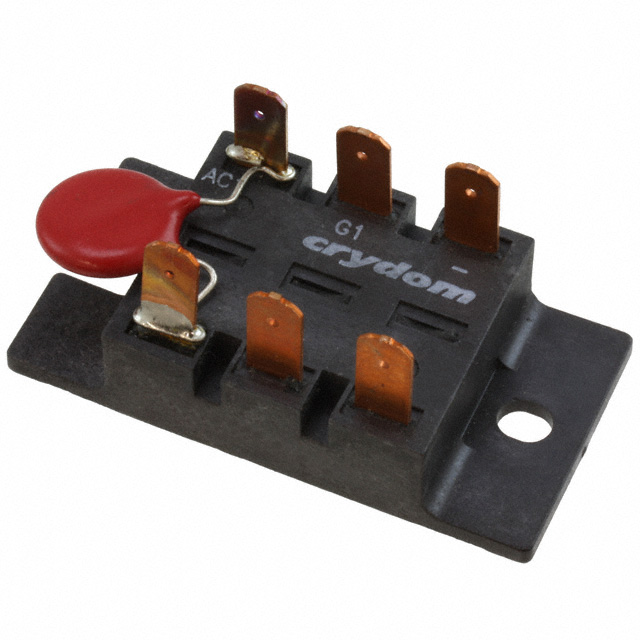

Sensata-Crydom B512FSE-2T	2.5 V	600 V	2	2	Chassis Mount	Module	Bridge Single Phase - SCRs/Diodes (Layout 1)	60 mA	-40 C	125 °C	250 A
Sensata-Crydom B512F-2-YEC	2.5 V	600 V	2	2	Chassis Mount	Module with Isolation Barriers	Bridge Single Phase - SCRs/Diodes (Layout 1)	60 mA	-40 C	125 °C	250 A
Sensata-Crydom B512FSE-2T-YEB	2.5 V	600 V	2	2	Chassis Mount	Module	Bridge Single Phase - SCRs/Diodes (Layout 1)	60 mA	-40 C	125 °C	250 A

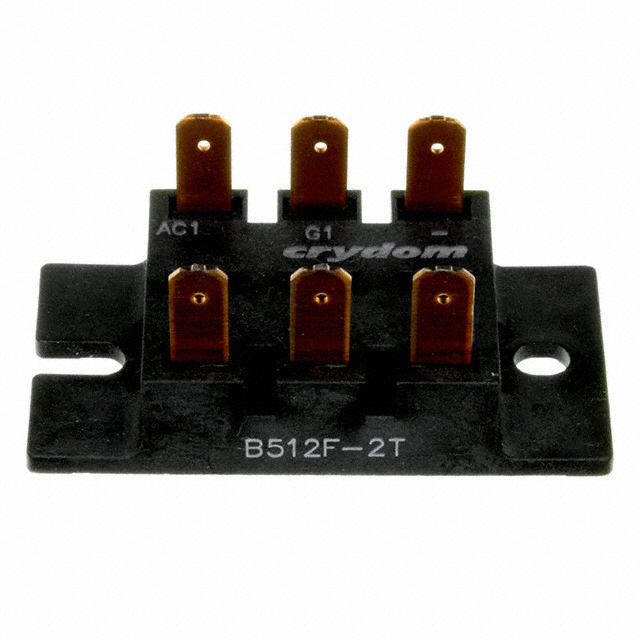

Sensata-Crydom B512F-2T	2.5 V	600 V	2	2	Chassis Mount	Module	Bridge Single Phase - SCRs/Diodes (Layout 1)	60 mA	-40 C	125 °C	250 A

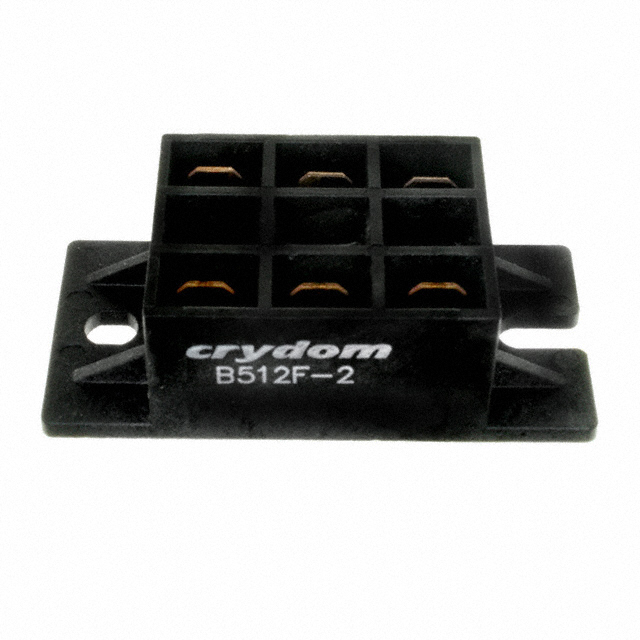

Sensata-Crydom B512F-2	2.5 V	600 V	2	2	Chassis Mount	Module	Bridge Single Phase - SCRs/Diodes (Layout 1)	60 mA	-40 C	125 °C	250 A
