HI-8190 Series

Catalog

IC SWITCH SPST-NOX4 17OHM 16SOIC

Part	Switch Circuit	Mounting Type	Voltage - Supply, Dual (V±) [Max]	Voltage - Supply, Dual (V±) [Min]	Voltage - Supply, Dual (V±)	On-State Resistance (Max) [Max]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Charge Injection	Supplier Device Package	Multiplexer/Demultiplexer Circuit	Current - Leakage (IS(off)) (Max)	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Number of Circuits	Current - Leakage (IS(off)) (Max) [Max]
Holt Integrated Circuits HI-8190PSIF	SPST - NO	Surface Mount	3.3 V	-3.3 V	15 V	17 Ohms	20 ns	35 ns	5 pF	20 pF	4 pC	16-SOIC	1:1	5 nA	3.3 V	15 V	85 C	-40 ¯C	16-SOIC	0.154 in 3.9 mm	4

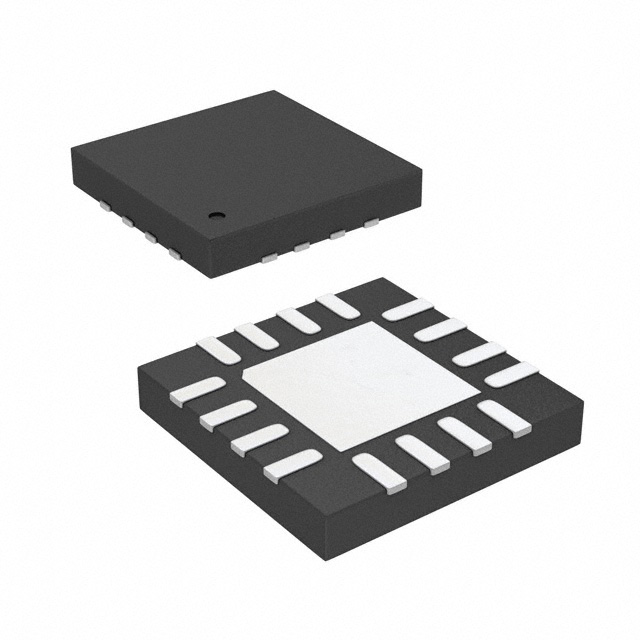

Holt Integrated Circuits HI-8190PCTF	SPST - NO	Surface Mount	3.3 V	-3.3 V	15 V	17 Ohms	20 ns	35 ns			4 pC	16-CSP	1:1		3.3 V	15 V	125 °C	-55 °C	16-WQFN Exposed Pad CSP		4	5 nA
Holt Integrated Circuits HI-8190PCIF	SPST - NO	Surface Mount	3.3 V	-3.3 V	15 V	17 Ohms	20 ns	35 ns	5 pF	20 pF	4 pC	16-CSP	1:1	5 nA	3.3 V	15 V	85 C	-40 ¯C	16-WQFN Exposed Pad CSP		4
Holt Integrated Circuits HI-8190PSTF	SPST - NO	Surface Mount	3.3 V	-3.3 V	15 V	17 Ohms	20 ns	35 ns			4 pC	16-SOIC	1:1		3.3 V	15 V	125 °C	-55 °C	16-SOIC	0.154 in 3.9 mm	4	5 nA
