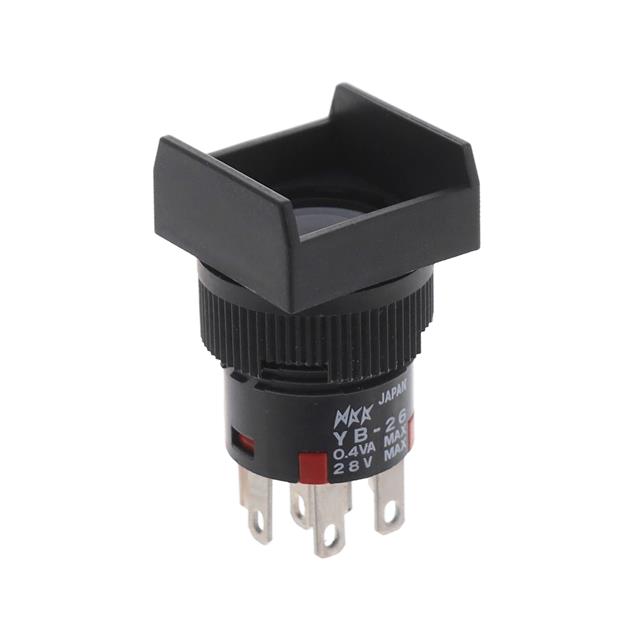

YB26SK Series

Catalog

DPDT ON-ON SQUARE BUSHING MOUNT

Part	Mechanical Life	Electrical Life	Voltage Rating - AC	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Type	Mounting Type	Illumination Voltage (Nominal)	Switch Function	Features	Voltage Rating - DC	Illumination Type, Color	Color - Actuator/Cap	Termination Style	Actuator Marking	Panel Cutout Dimensions [diameter]	Current Rating (Amps)
NKK Switches YB26SKW03-5F05-JF	200000 Cycles	100000 Cycles	125 V	DPDT	50 °C	-25 °C	Button Square	Illuminated Standard	Panel Mount Front	5 VDC	On-On	Voltage Reduction Lighting	30 V	Green LED	Clear	PC Pin	No Marking	16 mm	3 A
NKK Switches YB26SKW01-5F-JB	200000 Cycles	100000 Cycles	125 V	DPDT	50 °C	-25 °C	Button Square	Illuminated Standard	Panel Mount Front	2.2 VDC	On-On	Voltage Reduction Lighting	30 V	Green LED	Clear	Solder Quick Connect - 0.110" (2.8mm)	No Marking	16 mm	3 A
NKK Switches YB26SKW03	200000 Cycles	100000 Cycles	125 V	DPDT	70 °C	-25 °C	Plunger for Cap	Standard	Panel Mount Front		On-On	Voltage Reduction Lighting	30 V			PC Pin	No Marking	16 mm	3 A
NKK Switches YB26SKW01-5D-JB	200000 Cycles	100000 Cycles	125 V	DPDT	50 °C	-25 °C	Button Square	Illuminated Standard	Panel Mount Front	2 VDC	On-On	Voltage Reduction Lighting	30 V	Amber LED	Clear	Solder Quick Connect - 0.110" (2.8mm)	No Marking	16 mm	3 A
NKK Switches YB26SKW01-1F12-JA	200000 Cycles	100000 Cycles	125 V	DPDT	50 °C	-25 °C	Button Square	Illuminated Standard	Panel Mount Front	12 VDC	On-On	Voltage Reduction Lighting	30 V	Green LED	Clear	Solder Quick Connect - 0.110" (2.8mm)	No Marking	16 mm	3 A
NKK Switches YB26SKW01-5D12-JD	200000 Cycles	100000 Cycles	125 V	DPDT	50 °C	-25 °C	Button Square	Illuminated Standard	Panel Mount Front	12 VDC	On-On	Voltage Reduction Lighting	30 V	Amber LED	Clear	Solder Quick Connect - 0.110" (2.8mm)	No Marking	16 mm	3 A
NKK Switches YB26SKW01-6B-JB	200000 Cycles	100000 Cycles	125 V	DPDT	50 °C	-25 °C	Button Square	Illuminated Standard	Panel Mount Front	3.3 VDC	On-On	Voltage Reduction Lighting	30 V	LED White	Clear	Solder Quick Connect - 0.110" (2.8mm)	No Marking	16 mm	3 A
NKK Switches YB26SKW01-5D24-JB	200000 Cycles	100000 Cycles	125 V	DPDT	50 °C	-25 °C	Button Square	Illuminated Standard	Panel Mount Front	24 V	On-On	Voltage Reduction Lighting	30 V	Amber LED	Clear	Solder Quick Connect - 0.110" (2.8mm)	No Marking	16 mm	3 A
NKK Switches YB26SKW01-2CF05-JB	200000 Cycles	100000 Cycles	125 V	DPDT	50 °C	-25 °C	Button Square	Illuminated Standard	Panel Mount Front	5 VDC	On-On	Voltage Reduction Lighting	30 V	Green/Red LED	Clear	Solder Quick Connect - 0.110" (2.8mm)	No Marking	16 mm	3 A
NKK Switches YB26SKW01-1F24-JF	200000 Cycles	100000 Cycles	125 V	DPDT	50 °C	-25 °C	Button Square	Illuminated Standard	Panel Mount Front	24 V	On-On	Voltage Reduction Lighting	30 V	Green LED	Clear	Solder Quick Connect - 0.110" (2.8mm)	No Marking	16 mm	3 A
