109E1348 Series

Catalog

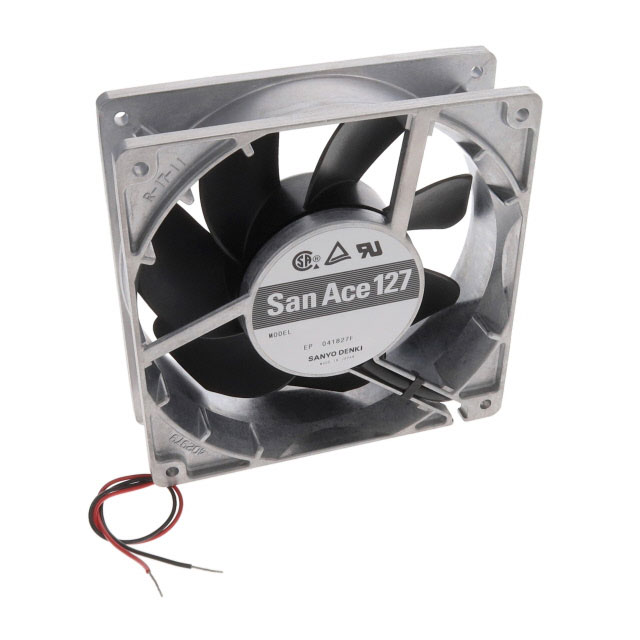

FAN AXIAL 127X38MM 48VDC WIRE

Part	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Material - Frame	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Width [y]	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Bearing Type	Power (Watts)	Fan Type	Noise	Voltage - Rated	Termination	Weight [custom]	Weight [custom]	Features	Air Flow	Air Flow	RPM
Sanyo Denki America Inc. 109E1348S1D01	55.2 VDC	40.8 VDC	Plastic	Aluminum	0.28 A	-20 ░C	70 °C	125 Pa	0.502 in H2O	38 mm	CSA TUV UL	5 in	5 "	Ball	13.4 W	Tubeaxial	49 dB	48 VDC	3 Wire Leads	0.882 lb	400.07 g	Locked Rotor Sensor	4.31 m³/min	154 CFM	3450 RPM
Sanyo Denki America Inc. 109E1348A102	55.2 VDC	40.8 VDC	Plastic	Aluminum	360 mA	-20 ░C	70 °C	155 Pa	0.622 in H2O	38 mm	CSA TUV UL	5 in	5 "	Ball	17.3 W	Tubeaxial	52 dB	48 VDC	2 Wire Leads	0.882 lb	400.07 g		4.76 m³/min	170 CFM	3850 RPM
Sanyo Denki America Inc. 109E1348A101	55.2 VDC	40.8 VDC	Plastic	Aluminum	360 mA	-20 ░C	70 °C	155 Pa	0.622 in H2O	38 mm	CSA TUV UL	5 in	5 "	Ball	17.3 W	Tubeaxial	52 dB	48 VDC	3 Wire Leads	0.882 lb	400.07 g	Speed Sensor (Tach)	4.76 m³/min	170 CFM	3850 RPM
