5277-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

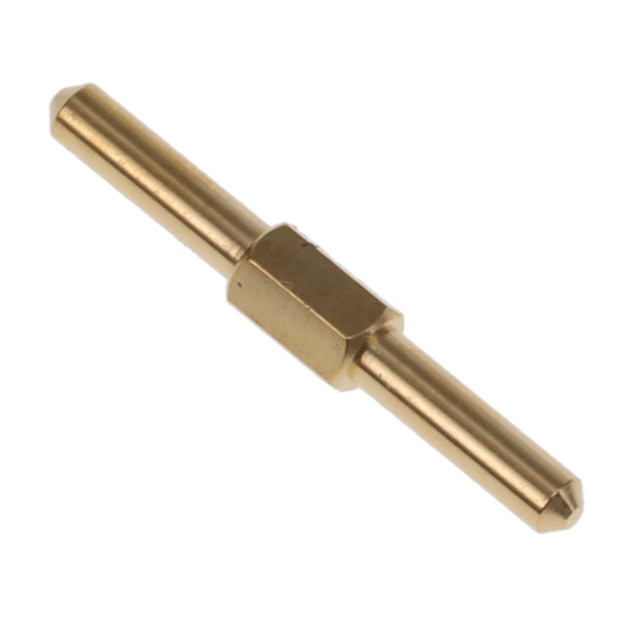

PRESS-FIT DOUBLE TAIL HEADER PIN
| Part | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish | Termination | Contact Material | Insulation | Contact Finish Thickness | Contact Finish Thickness | Terminal Style | Mounting Type | Length - Overall [x] | Length - Overall [x] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Terminal Type | Length - Below Flange [x] | Length - Below Flange [x] | Pin Size - Above Flange | Pin Size - Above Flange [diameter] | Length - Above Flange [x] | Length - Above Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.061 in | 1.55 mm | Gold | Hex Press-Fit | Brass Alloy | Non-Insulated | 0.25 Ám | 10 Áin | Double End | Through Hole | 8.26 mm | 0.325 in | 0.038 in | 0.97 mm | 1.45 mm | 0.057 in | PC Pin | 3.78 mm | 0.149 " | 0.97 mm | 0.038 in | 0.091 in | 2.31 mm |
