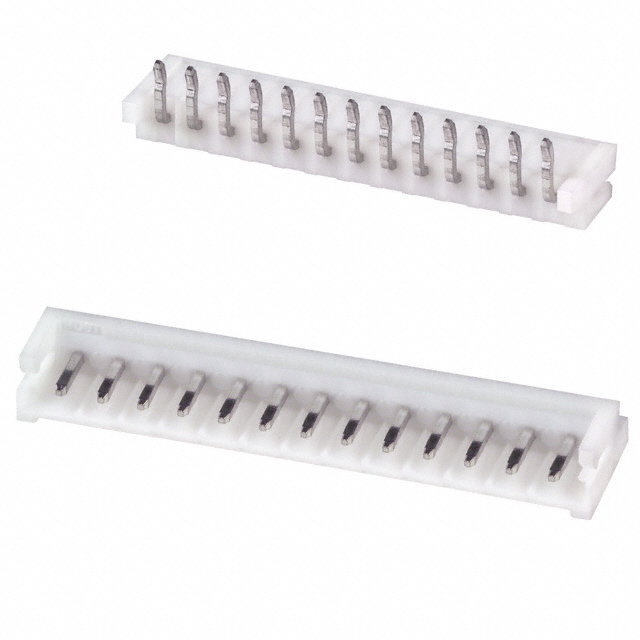

S13B-EH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 13POS 2.5MM
| Part | Number of Positions | Contact Shape | Connector Type | Contact Length - Post [x] | Contact Length - Post [x] | Pitch - Mating | Pitch - Mating | Contact Material | Termination | Contact Length - Mating | Contact Length - Mating | Mounting Type | Voltage Rating | Fastening Type | Number of Positions Loaded | Style | Current Rating (Amps) | Contact Finish - Post | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding | Insulation Material | Number of Rows | Insulation Height | Insulation Height | Material Flammability Rating | Insulation Color | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 13 | Square | Header | 0.126 " | 3.2 mm | 2.5 mm | 0.098 in | Brass | Press-Fit Solder | 4 mm | 0.157 in | Right Angle Through Hole | 250 V | Latch Lock | All | Board to Cable/Wire | 3 A | Tin | 85 °C | -25 °C | Shrouded - 3 Wall | Nylon 6/6 Polyamide (PA66) | 1 | 0.165 in | 4.2 mm | UL94 V-0 | Natural | Male Pin |
