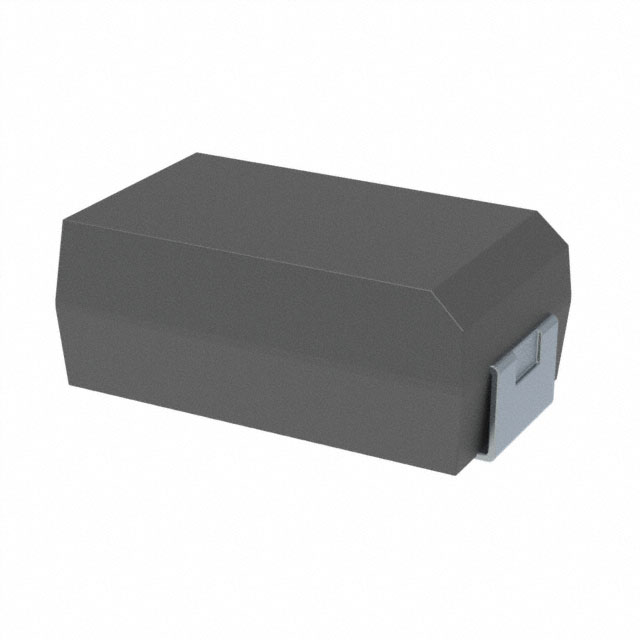

T520D Series
Manufacturer: KEMET
Beta
⌘K
TANTALUM POLYMER CAPACITOR, 680 ΜF, ± 20%, 4 V, D, 0.012 OHM, 2917 [7343 METRIC]
| Part | Manufacturer Size Code | Tolerance | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Capacitance | Features | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Mounting Type | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | D | 20 % | 2917 (7343 Metric) | 0.122 in | 3.1 mm | 680 µF | General Purpose | 12 mOhm | 2000 Hrs | Surface Mount | Molded | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | -55 C | 105 ░C | 4 V |
 KEMET | D | 20 % | 2917 (7343 Metric) | 0.122 in | 3.1 mm | 470 µF | General Purpose | 7 mOhm | 2000 Hrs | Surface Mount | Molded | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | -55 C | 105 ░C | 2.5 V |
 KEMET | D | 20 % | 2917 (7343 Metric) | 0.122 in | 3.1 mm | 220 µF | General Purpose | 18 mOhm | 2000 Hrs | Surface Mount | Molded | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | -55 C | 105 ░C | 10 V |
 KEMET | D | 20 % | 2917 (7343 Metric) | 0.122 in | 3.1 mm | 150 µF | General Purpose | 7 mOhm | 2000 Hrs | Surface Mount | Molded | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | -55 C | 105 ░C | 6.3 VDC |
KEMET | D | 20 % | 2917 (7343 Metric) | 0.122 in | 3.1 mm | 330 µF | General Purpose | 18 mOhm | 2000 Hrs | Surface Mount | Molded | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | -55 C | 105 ░C | 6.3 VDC |
 KEMET | D | 20 % | 2917 (7343 Metric) | 0.122 in | 3.1 mm | 150 µF | General Purpose | 6 mOhm | 2000 Hrs | Surface Mount | Molded | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | -55 C | 105 ░C | 6.3 VDC |
KEMET | D | 20 % | 2917 (7343 Metric) | 0.122 in | 3.1 mm | 1000 µF | General Purpose | 6 mOhm | 2000 Hrs | Surface Mount | Molded | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | -55 C | 105 ░C | 2.5 V |
 KEMET | D | 20 % | 2917 (7343 Metric) | 0.122 in | 3.1 mm | 330 µF | General Purpose | 6 mOhm | 2000 Hrs | Surface Mount | Molded | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | -55 C | 105 ░C | 4 V |
 KEMET | D | 20 % | 2917 (7343 Metric) | 0.122 in | 3.1 mm | 220 µF | General Purpose | 40 mOhm | 2000 Hrs | Surface Mount | Molded | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | -55 C | 105 ░C | 6.3 VDC |
KEMET | D | 20 % | 2917 (7343 Metric) | 0.122 in | 3.1 mm | 680 µF | General Purpose | 15 mOhm | 2000 Hrs | Surface Mount | Molded | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | -55 C | 105 ░C | 3 VDC |
