333-029 Series
Manufacturer: EDAC Inc.
Beta
⌘K

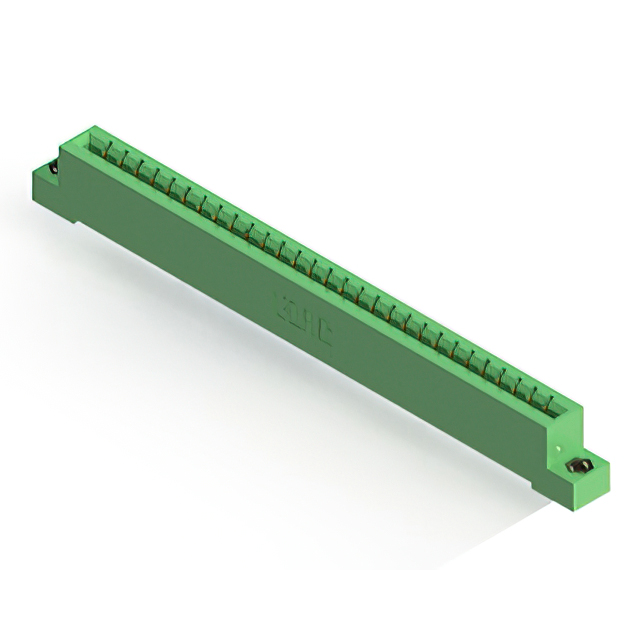

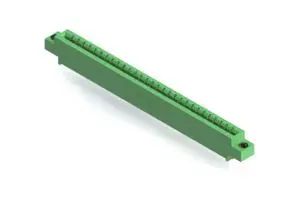

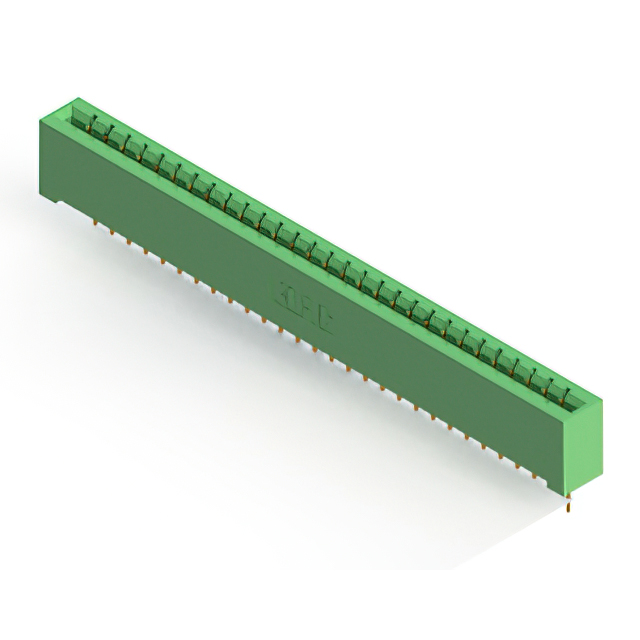

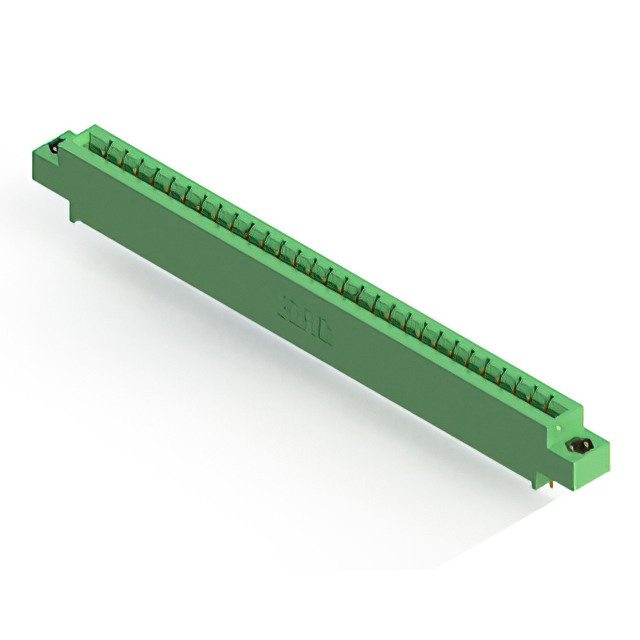

CONN EDGE SGL FMALE 29POS 0.156
| Part | Material - Insulation | Termination Rows | Contact Material | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Contact Type | Mounting Type | Termination | Number of Positions/Bay/Row | Flange Feature | Number of Positions | Contact Finish | Color | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Read Out | Card Thickness [Max] | Card Thickness [Min] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Female | -40 C | 105 ░C | Non Specified - Single Edge | Cantilever | Through Hole | Solder | 29 | 4-40 Flush Mount Threaded Insert Top Opening | 29 | Gold | Green | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Female | -40 C | 105 ░C | Non Specified - Single Edge | Cantilever | Through Hole | Solder | 29 | 4-40 Threaded Insert Top Mount Opening | 29 | Gold | Green | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Female | -40 C | 105 ░C | Non Specified - Single Edge | Cantilever | Through Hole | Wire Wrap | 29 | Floating Bobbin Top Mount Opening | 29 | Gold | Green | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Female | -40 C | 105 ░C | Non Specified - Single Edge | Cantilever | Through Hole | Wire Wrap | 29 | Floating Bobbin Flush Mount | 29 | Gold | Green | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Female | -40 C | 105 ░C | Non Specified - Single Edge | Cantilever | Through Hole | Solder | 29 | Flush Mount Top Opening Unthreaded | 29 | Gold | Green | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.156 " | 3.96 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Female | -40 C | 105 ░C | Non Specified - Single Edge | Cantilever | Through Hole | Wire Wrap | 29 | M3 Threaded Insert Top Mount Opening | 29 | Gold | Green | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Female | -40 C | 105 ░C | Non Specified - Single Edge | Cantilever | Through Hole | Wire Wrap | 29 | 29 | Gold | Green | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Female | -40 C | 105 ░C | Non Specified - Single Edge | Cantilever | Through Hole | Wire Wrap | 29 | Floating Bobbin Flush Mount | 29 | Gold | Green | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Female | -40 C | 105 ░C | Non Specified - Single Edge | Cantilever | Through Hole | Solder | 29 | 29 | Gold | Green | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Female | -40 C | 105 ░C | Non Specified - Single Edge | Cantilever | Through Hole | Wire Wrap | 29 | Side Mount Opening Unthreaded | 29 | Gold | Green | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm |
