UJT035 Series
Manufacturer: OmniOn Power™
Beta
⌘K
DC DC CONVERTER 0.51-3.63V
| Part | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Control Features | Voltage - Output 1 [Min] [custom] | Voltage - Output 1 [Max] [custom] | Number of Outputs | Supplier Device Package | Voltage - Input (Min) [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Features | Type | Efficiency | Package / Case | Voltage - Input (Max) [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

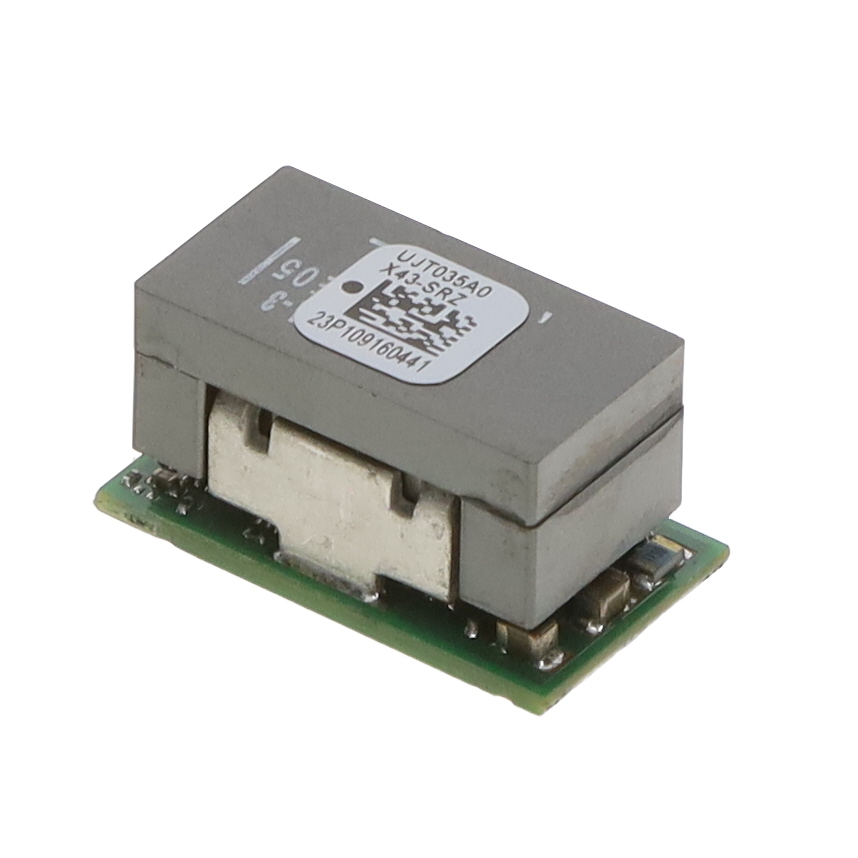

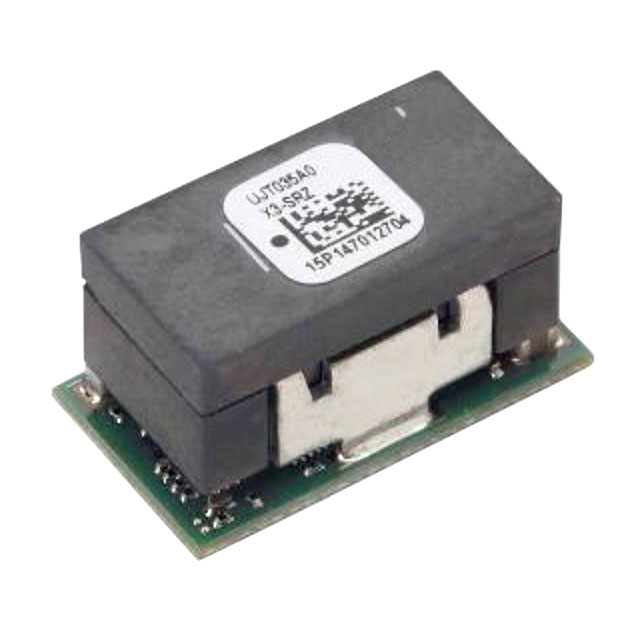

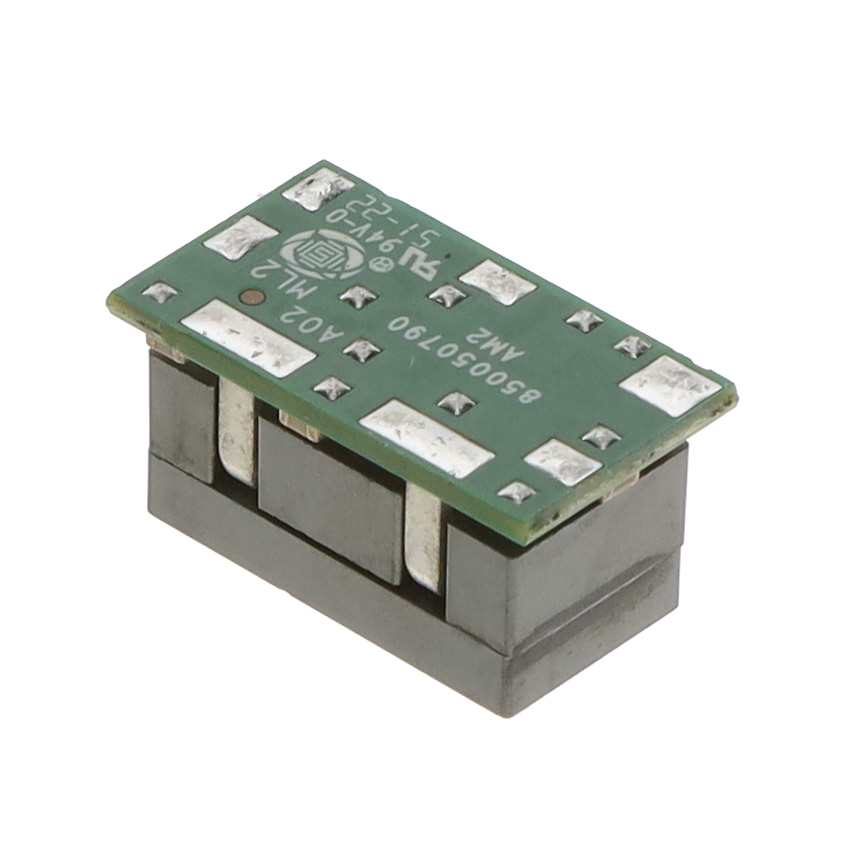

 OmniOn Power™ | 35 A | 85 °C | -40 C | ITE (Commercial) | Active Low Enable | 0.51 V | 3.63 V | 1 | Module | 4.5 V | 0.45 in | 0.8 " | 0.43 in | 11 mm | 11.4 mm | 20.3 mm | OCP OTP Remote On/Off UVLO | Non-Isolated PoL Module Digital | 94.3 % | 17-SMD Module | 14.4 V | Surface Mount |
OmniOn Power™ | 35 A | 85 °C | -40 C | ITE (Commercial) | Active Low Enable | 0.51 V | 3.63 V | 1 | Module | 4.5 V | 0.45 in | 0.8 " | 0.43 in | 11 mm | 11.4 mm | 20.3 mm | OCP OTP Remote On/Off UVLO | Non-Isolated PoL Module Digital | 94.3 % | 17-SMD Module | 14.4 V | Surface Mount |
 OmniOn Power™ | 35 A | 85 °C | -40 C | ITE (Commercial) | Active High Enable | 0.51 V | 3.63 V | 1 | Module | 4.5 V | 0.45 in | 0.8 " | 0.43 in | 11 mm | 11.4 mm | 20.3 mm | OCP OTP Remote On/Off UVLO | Non-Isolated PoL Module Digital | 94.3 % | 17-SMD Module | 14.4 V | Surface Mount |
OmniOn Power™ | 35 A | 85 °C | -40 C | ITE (Commercial) | Active High Enable | 0.51 V | 3.63 V | 1 | Module | 4.5 V | 0.45 in | 0.8 " | 0.43 in | 11 mm | 11.4 mm | 20.3 mm | OCP OTP Remote On/Off UVLO | Non-Isolated PoL Module Digital | 94.3 % | 17-SMD Module | 14.4 V | Surface Mount |
