3SU1106 Series

Manufacturer: Siemens

Catalog

ILLUMINATED PUSHBUTTON, MOM, GRN

Part	Electrical Life	Mechanical Life	Illumination Type, Color	Circuit	Type	Panel Cutout Dimensions [diameter]	Mounting Type	Actuator Type	Ingress Protection	Illumination Voltage (Nominal)	Voltage Rating - DC	Current Rating (Amps)	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Color - Actuator/Cap	Termination Style
Siemens 3SU11060AB403BA0	10000000 Cycles	3000000 Cycles	Green LED	SPST-NO	Illuminated Standard	22.3 mm	Panel Mount Front	Button Round	IP66 IP67 IP69K	230 VAC	500 V	10 A	500 V	-25 °C	70 °C	Off-Mom	Green	Spring Terminal

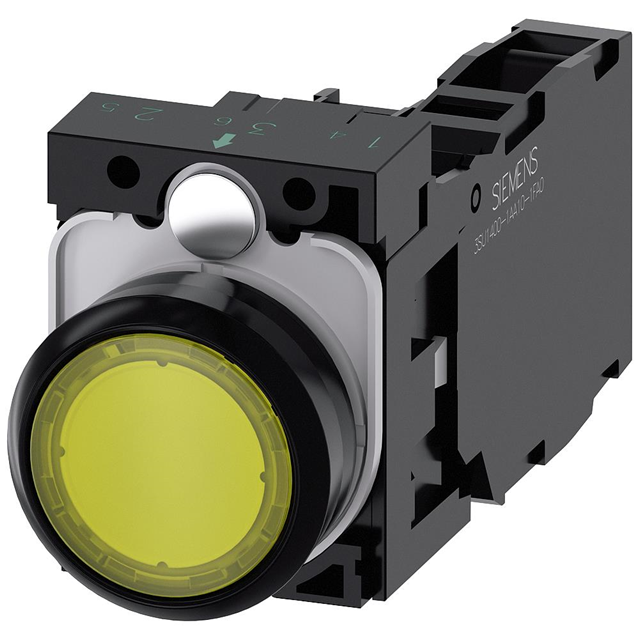

Siemens 3SU11060AB301BA0	10000000 Cycles	3000000 Cycles	LED Yellow	SPST-NO	Illuminated Standard	22.3 mm	Panel Mount Front	Button Round	IP66 IP67 IP69K	230 VAC	500 V	10 A	500 V	-25 °C	70 °C	Off-Mom	Yellow	Screw Terminal
Siemens 3SU11060AB201CA0	10000000 Cycles	3000000 Cycles	LED Red	SPST-NC	Illuminated Standard	22.3 mm	Panel Mount Front	Button Round	IP66 IP67 IP69K	230 VAC	500 V	10 A	500 V	-25 °C	70 °C	On-Mom	Red	Screw Terminal

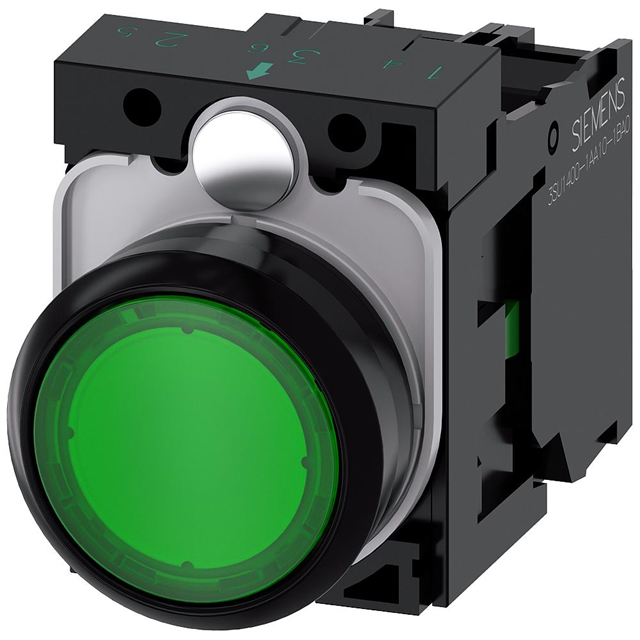

Siemens 3SU11060AB401BA0	10000000 Cycles	3000000 Cycles	Green LED	SPST-NO	Illuminated Standard	22.3 mm	Panel Mount Front	Button Round	IP66 IP67 IP69K	230 VAC	500 V	10 A	500 V	-25 °C	70 °C	Off-Mom	Green	Screw Terminal

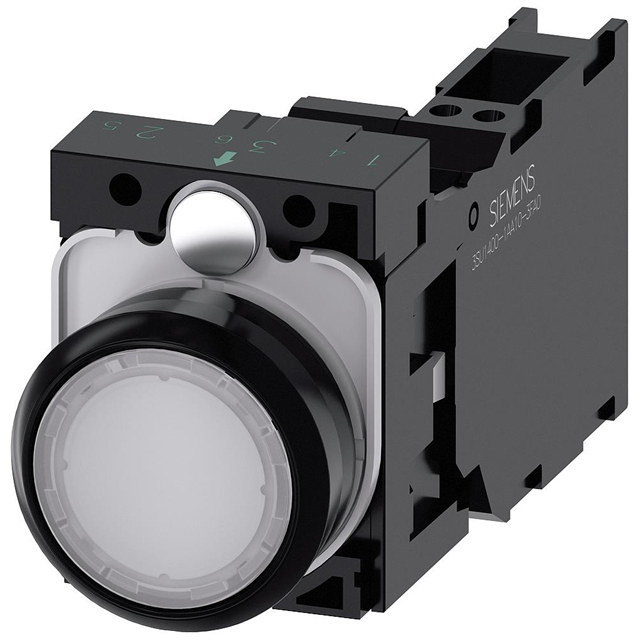

Siemens 3SU11060AB603FA0	10000000 Cycles	3000000 Cycles	LED White	DPST-NO/NC	Illuminated Standard	22.3 mm	Panel Mount Front	Button Round	IP66 IP67 IP69K	230 VAC	500 V	10 A	500 V	-25 °C	70 °C	Off-Mom On-Mom	White	Spring Terminal
Siemens 3SU11060AB501BA0	10000000 Cycles	3000000 Cycles	Blue LED	SPST-NO	Illuminated Standard	22.3 mm	Panel Mount Front	Button Round	IP66 IP67 IP69K	230 VAC	500 V	10 A	500 V	-25 °C	70 °C	Off-Mom	Blue	Screw Terminal
Siemens 3SU11060AB701BA0	10000000 Cycles	3000000 Cycles	LED White	SPST-NO	Illuminated Standard	22.3 mm	Panel Mount Front	Button Round	IP66 IP67 IP69K	230 VAC	500 V	10 A	500 V	-25 °C	70 °C	Off-Mom	Clear	Screw Terminal
Siemens 3SU11060AB401FA0	10000000 Cycles	3000000 Cycles	Green LED	DPST-NO/NC	Illuminated Standard	22.3 mm	Panel Mount Front	Button Round	IP66 IP67 IP69K	230 VAC	500 V	10 A	500 V	-25 °C	70 °C	Off-Mom On-Mom	Green	Screw Terminal
Siemens 3SU11060AB603BA0	10000000 Cycles	3000000 Cycles	LED White	SPST-NO	Illuminated Standard	22.3 mm	Panel Mount Front	Button Round	IP66 IP67 IP69K	230 VAC	500 V	10 A	500 V	-25 °C	70 °C	Off-Mom	White	Spring Terminal
