PPTC361 Series

Catalog

CONN HDR 36POS 0.1 TIN PCB

Part	Insulation Material	Contact Material	Contact Shape	Contact Type	Number of Rows	Contact Finish - Post	Mounting Type	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Insulation Color	Current Rating (Amps)	Number of Positions	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Termination	Connector Type	Contact Length - Post	Contact Length - Post

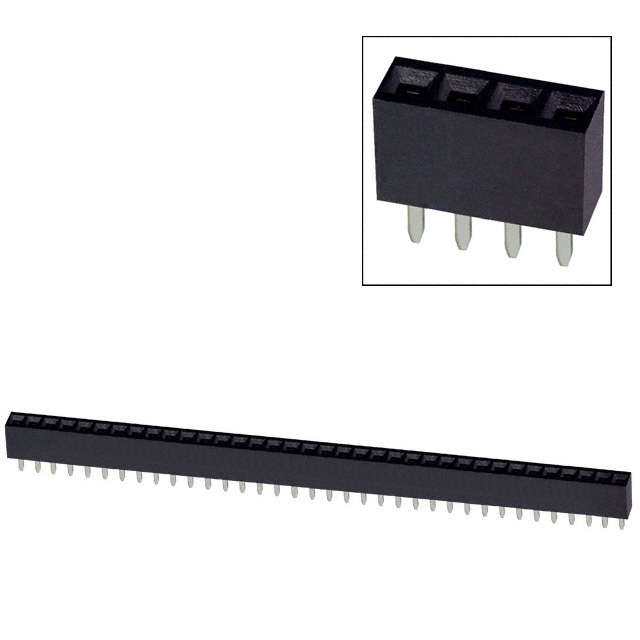

Sullins Connector Solutions PPTC361LFBN	Polyester	Phosphor Bronze	Square	Female Socket	1	Tin	Through Hole	0.335 "	8.51 mm	0.126 "	3.2 mm	Push-Pull	All	-40 C	105 ░C	250 V	Black	3 A	36	0.1 "	2.54 mm	UL94 V-0	Solder	Header
Sullins Connector Solutions PPTC361KFXC	Polyester	Phosphor Bronze	Square	Female Socket	1	Tin	Surface Mount	0.28 in	7.1 mm			Push-Pull	All	-40 C	105 ░C	250 V	Black	3 A	36	0.1 "	2.54 mm	UL94 V-0	Solder	Header Top or Bottom Entry

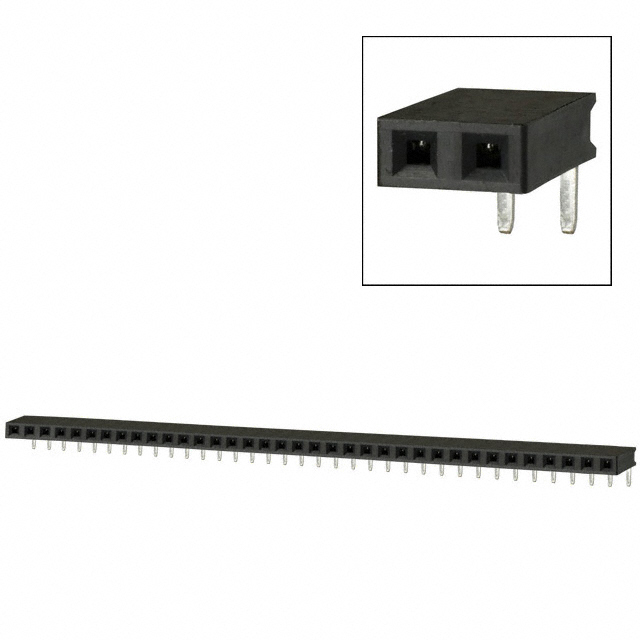

Sullins Connector Solutions PPTC361LGBN	Polyester	Phosphor Bronze	Square	Female Socket	1	Tin	Right Angle Through Hole	0.1 in	2.54 mm			Push-Pull	All	-40 C	105 ░C	250 V	Black	3 A	36	0.1 "	2.54 mm	UL94 V-0	Solder	Header	0.124 in	3.15 mm
Sullins Connector Solutions PPTC361LGBN-RC	Polyester	Phosphor Bronze	Square	Female Socket	1	Tin	Right Angle Through Hole	0.1 in	2.54 mm			Push-Pull	All	-40 C	105 ░C	250 V	Black	3 A	36	0.1 "	2.54 mm	UL94 V-0	Solder	Header	0.124 in	3.15 mm
