MDL65 Series

Manufacturer: ETA-USA

Catalog

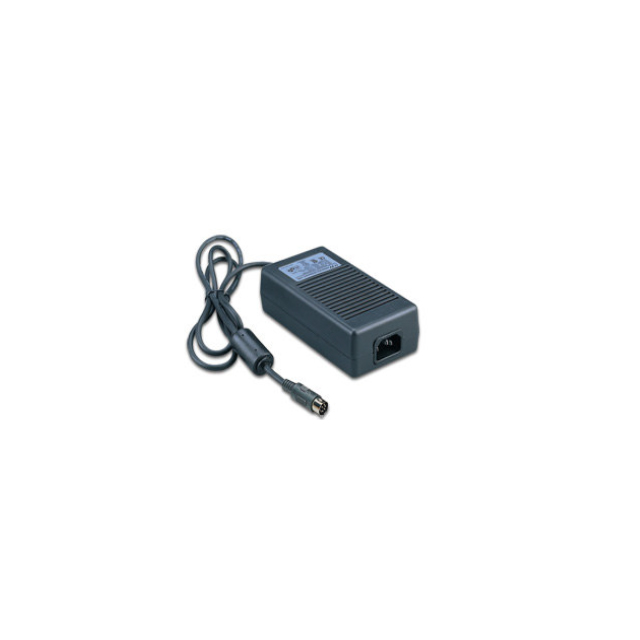

AC/DC DESKTOP ADAPTER 12V 60W

Part	Efficiency	Standard Number	Current - Output (Max)	Approval Agency	Form	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Polarization	Cord Length	Cord Length	Applications	Power (Watts)	Region Utilized	Output Connector	Output Connector [x]	Output Connector [diameter]	Input Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	No Load Power Consumption	Operating Temperature [Min]	Operating Temperature [Max]	Input Connector	Current - Output (Max) [Max]
ETA-USA MDL65-12SX-W6	CoC Tier 2 Level VI	60601-1	5 A	CE FCC	Desktop (Class I)	264 VAC	90 VAC	12 V	Positive Center	1 m	39.4 in	Medical	60 W	International	Barrel Plug	10 mm	2.5 mm 5.5 mm	Cord (Sold Separately)	1.57 "	132 mm	5.2 in	2.72 "	40 mm	69 mm	150 mW	-20 ░C	60 °C	IEC 320-C14
ETA-USA MDL65-24SX-W6	CoC Tier 2 Level VI	60601-1		CE FCC	Desktop (Class I)	264 VAC	90 VAC	24 V	Positive Center	1 m	39.4 in	Medical	65 W	International	Barrel Plug	11 mm	2.5 mm 5.5 mm	Cord (Sold Separately)	1.57 "	132 mm	5.2 in	2.72 "	40 mm	69 mm	150 mW	-20 ░C	60 °C	IEC 320-C14	2.71 A
ETA-USA MDL65-28SX-W6	CoC Tier 2 Level VI	60601-1		CE FCC	Desktop (Class I)	264 VAC	90 VAC	28 V	Positive Center	1 m	39.4 in	Medical	65 W	International	Barrel Plug	10 mm	2.5 mm 5.5 mm	Cord (Sold Separately)	1.57 "	132 mm	5.2 in	2.72 "	40 mm	69 mm	150 mW	-20 ░C	60 °C	IEC 320-C14	2.32 A
