09300320 Series

Manufacturer: HARTING

Catalog

HAN B BASE SURFACE HC 2 LEVERS 2 ENTRIES ROHS COMPLIANT: NA

Part	Lock Location	Size	Housing Material	Ingress Protection	Connector Type	Thread Size	Housing Color	Housing Finish	Features	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Style

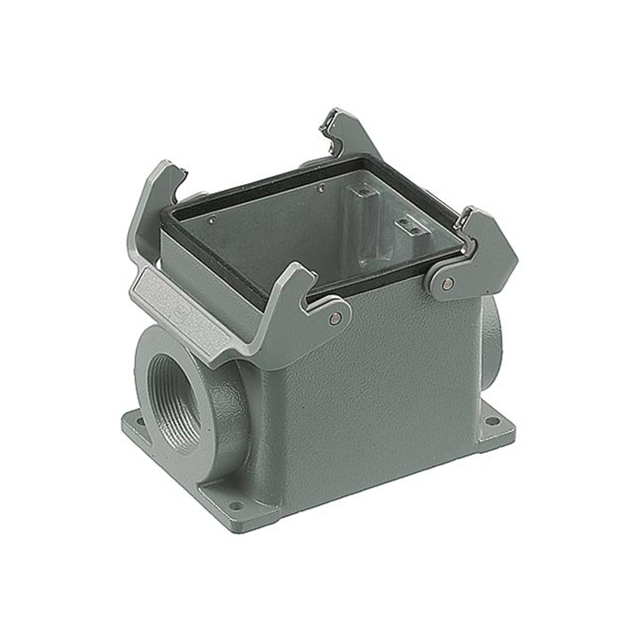

HARTING 09300320272	Locking Clip (2) on Base Bottom	32 B	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Base - Box Mount	PG36	Gray	Powder Coated	Feed Through	125 °C	-40 C	3.543 "	90 mm	125 mm	3.425 in	4.921 in	87 mm	Side Entry
HARTING 09300320801
HARTING 09300320422	Locking Clip (2) on Base Bottom	32 B	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Hood	PG36	Gray	Powder Coated		125 °C	-40 C	3.701 "	94 mm	94 mm	3.248 "	3.701 in	82.5 mm	Top Entry

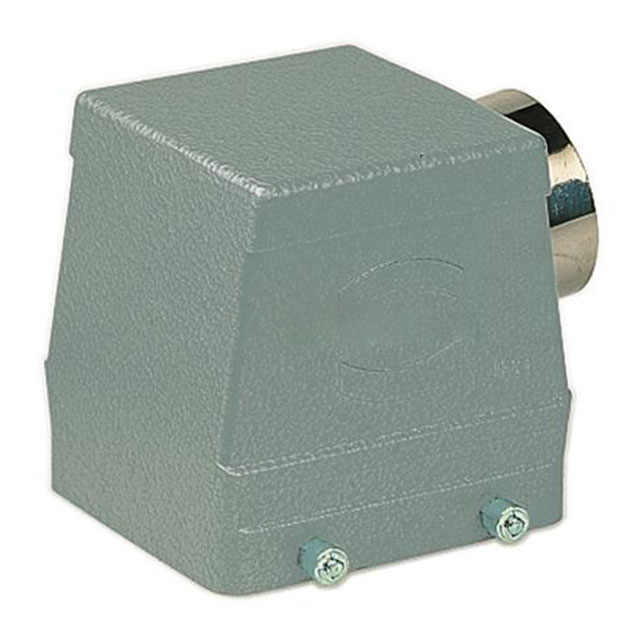

HARTING 09300320522	Locking Clip (2) on Base Bottom	32 B	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Hood	PG36	Gray	Powder Coated		125 °C	-40 C	3.701 "	94 mm	94 mm	3.248 "	3.701 in	82.5 mm	Side Entry

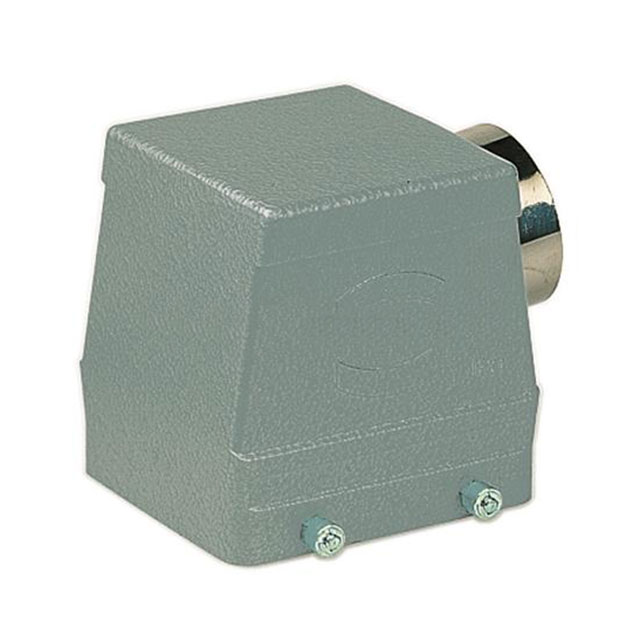

HARTING 09300320523	Locking Clip (2) on Base Bottom	32 B	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Hood	PG42	Gray	Powder Coated		125 °C	-40 C	3.701 "	94 mm	94 mm	3.248 "	3.701 in	82.5 mm	Side Entry

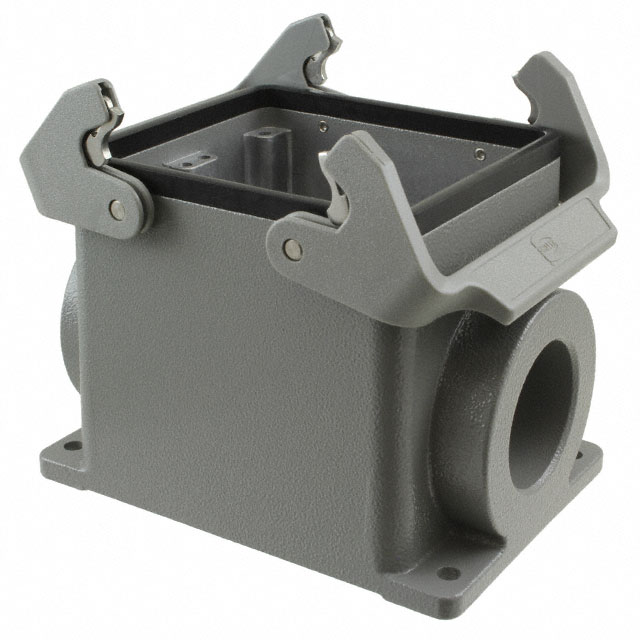

HARTING 09300320231	Locking Clip (2) on Base Bottom	32 B	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Base - Box Mount	PG29	Gray	Powder Coated		125 °C	-40 C	3.543 "	90 mm	125 mm	3.425 in	4.921 in	87 mm	Side Entry

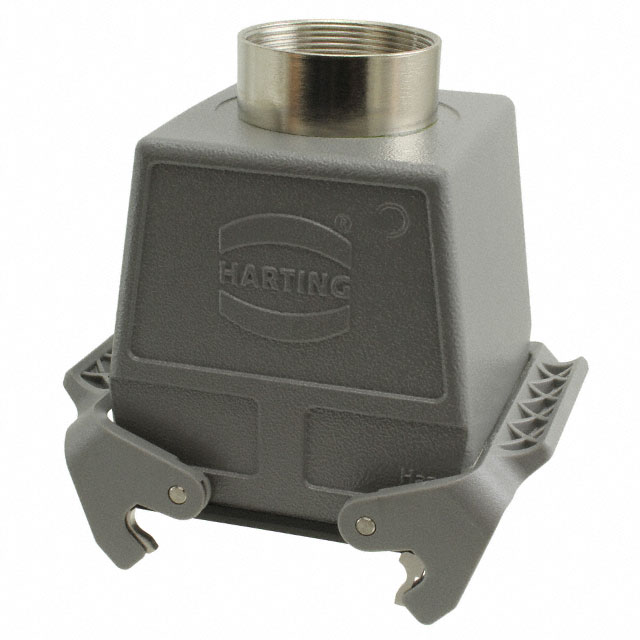

HARTING 09300320732	Locking Clip (2) on Hood Top	32 B	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Hood - Coupling	PG36	Gray	Powder Coated	Cable to Cable	125 °C	-40 C	3.795 "	96.4 mm	94 mm	3.248 "	3.701 in	82.5 mm	Bottom Entry Top or Bottom Entry
