T100F Series
Manufacturer: Panduit Corp
Beta
⌘K

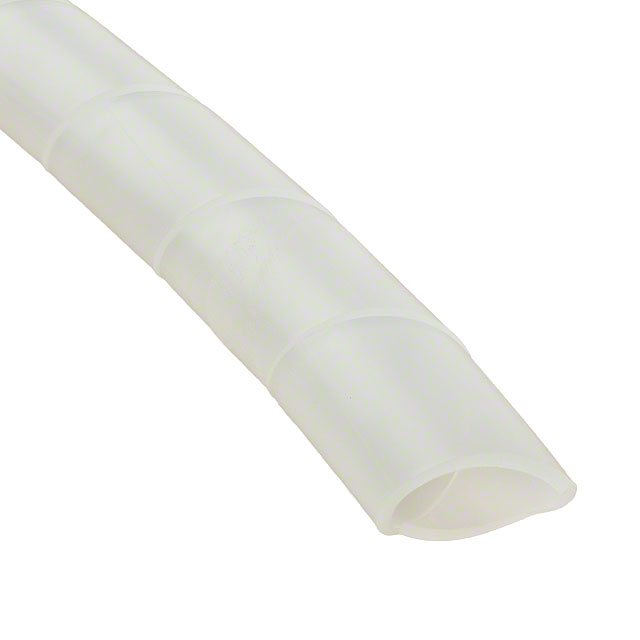

SPIRAL WRAP 1.00"X15M POLY NAT J
| Part | Material Flammability Rating | Type Attributes | Material | Diameter - Inside, Expanded [diameter] | Diameter - Inside, Expanded [diameter] | Wall Thickness | Wall Thickness | Color | Diameter - Outside, Non-Expanded [diameter] | Diameter - Outside, Non-Expanded [diameter] | Type | Abrasion Protection | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Environment Protection | Heat Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | ||||||||||||||||||
 Panduit Corp | UL94 HB | Harness | Polyethylene (PE) | 152.4 mm | 6 in | 1.78 mm | 0.07 in | Natural | 25.4 mm | 1 in | Spiral Wrap | Abrasion Resistant | -40 C | 50 °C | 100 ' | 30.48 m | ||
 Panduit Corp | UL94 HB | Harness | Polyethylene (PE) | 152.4 mm | 6 in | 1.78 mm | 0.07 in | Black | 25.4 mm | 1 in | Spiral Wrap | Abrasion Resistant | -40 C | 50 °C | 100 ' | 30.48 m | Weather Resistant | |
 Panduit Corp | UL94 V-0 | Harness | Polyethylene (PE) | 152.4 mm | 6 in | 1.78 mm | 0.07 in | Black | 25.4 mm | 1 in | Spiral Wrap | Abrasion Resistant | -20 ░C | 50 °C | 100 ' | 30.48 m | Flame Retardant |
