206997 Series
CP-4.5 Plug Housing, 4.50mm Pitch, Dual Row, 4 Circuits, Black, Glow-Wire Capable
Manufacturer: Molex
Catalog
CP-4.5 Plug Housing, 4.50mm Pitch, Dual Row, 4 Circuits, Black, Glow-Wire Capable
CP-4.5 Plug Housing, 4.50mm Pitch, Dual Row, 4 Circuits, Black, Glow-Wire Capable
CP-4.5 Plug Housing, 4.50mm Pitch, Dual Row, 4 Circuits, Black, Glow-Wire Capable
CP-4.5 Plug Housing, 4.50mm Pitch, Dual Row, 4 Circuits, Black, Glow-Wire Capable
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Number of Positions | Row Spacing | Row Spacing | Note | Number of Rows | Contact Termination | Connector Type | Pitch [x] | Pitch [x] | Color | Insulation Material | Fastening Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | -40 °C | 120 °C | Male Pin | 6 | 0.232 in | 5.9 mm | Contacts Not Included | 2 | Crimp | Plug | 0.177 in | 4.5 mm | Black | Polyamide (PA66) Nylon 6/6 | Latch Lock | Free Hanging (In-Line) |

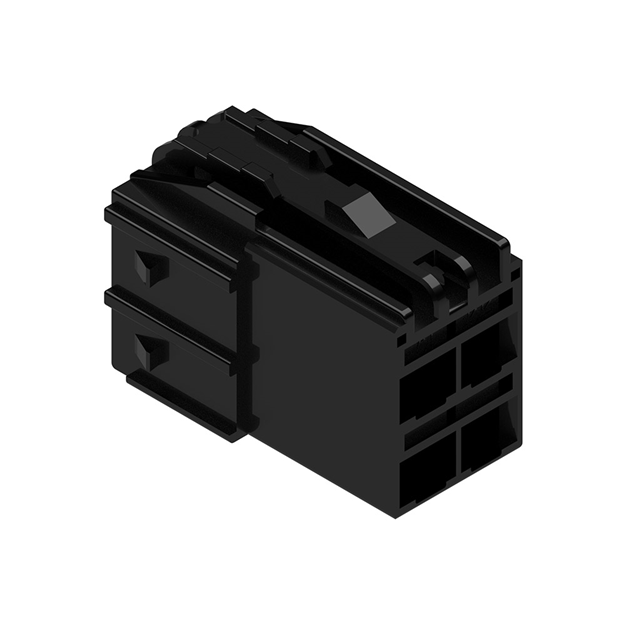

Molex | -40 °C | 120 °C | Male Pin | 4 | 0.232 in | 5.9 mm | Contacts Not Included | 2 | Crimp | Plug | 0.177 in | 4.5 mm | Black | Polyamide (PA66) Nylon 6/6 | Latch Lock | Free Hanging (In-Line) |
Molex | -40 °C | 120 °C | Male Pin | 2 | Contacts Not Included | 1 | Crimp | Plug | 0.177 in | 4.5 mm | Blue | Polyamide (PA66) Nylon 6/6 | Latch Lock | Free Hanging (In-Line) | ||

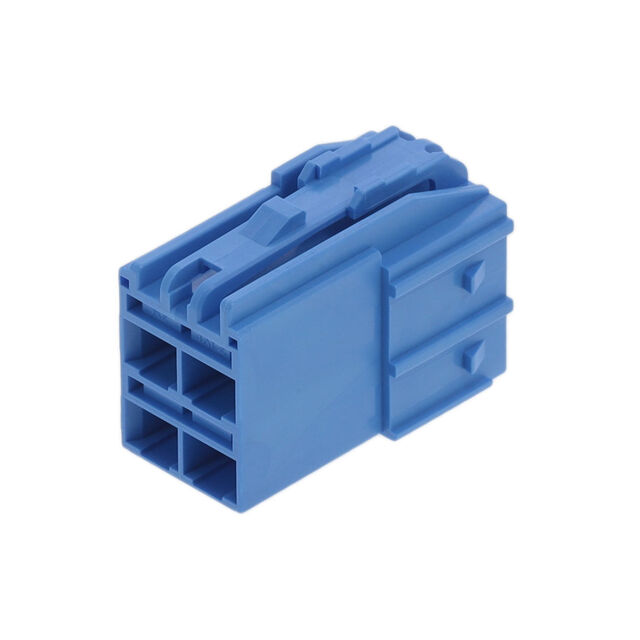

Molex | -40 °C | 120 °C | Male Pin | 4 | 0.232 in | 5.9 mm | Contacts Not Included | 2 | Crimp | Plug | 0.177 in | 4.5 mm | Blue | Polyamide (PA66) Nylon 6/6 | Latch Lock | Free Hanging (In-Line) |
Molex | -40 °C | 120 °C | Male Pin | 6 | 0.232 in | 5.9 mm | Contacts Not Included | 2 | Crimp | Plug | 0.177 in | 4.5 mm | Blue | Polyamide (PA66) Nylon 6/6 | Latch Lock | Free Hanging (In-Line) |

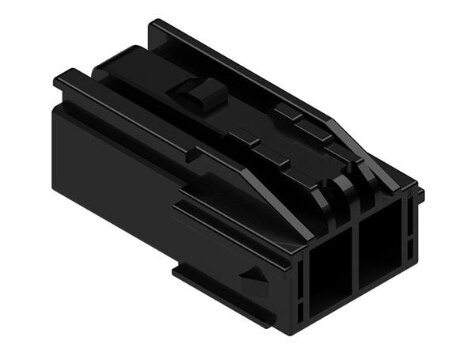

Molex | -40 °C | 120 °C | Male Pin | 2 | Contacts Not Included | 1 | Crimp | Plug | 0.177 in | 4.5 mm | Black | Polyamide (PA66) Nylon 6/6 | Latch Lock | Free Hanging (In-Line) | ||

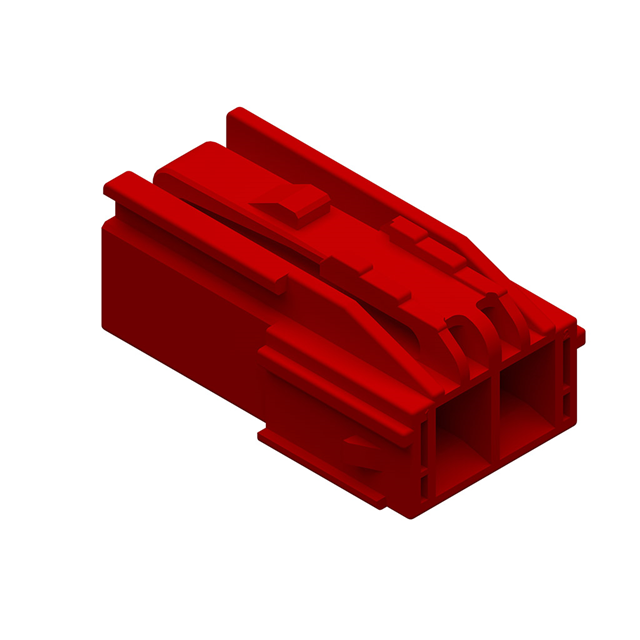

Molex | -40 °C | 120 °C | Male Pin | 2 | Contacts Not Included | 1 | Crimp | Plug | 0.177 in | 4.5 mm | Red | Polyamide (PA66) Nylon 6/6 | Latch Lock | Free Hanging (In-Line) | ||
Molex | -40 °C | 120 °C | Male Pin | 4 | 0.232 in | 5.9 mm | Contacts Not Included | 2 | Crimp | Plug | 0.177 in | 4.5 mm | Natural | Polyamide (PA66) Nylon 6/6 | Latch Lock | Free Hanging (In-Line) |
