FA5S045H Series

Catalog

CONN FPC BOTTOM 45POS 0.5MM R/A

Part	Mating Cycles	Housing Color	Actuator Color	Current Rating (Amps)	Cable End Type	Actuator Material	Termination	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Voltage Rating	Features	Material Flammability Rating	Number of Positions	Flat Flex Type	Contact Material	Connector/Contact Type	Height Above Board [z]	Height Above Board [z]	FFC, FCB Thickness	Pitch	Pitch	Locking Feature	Housing Material

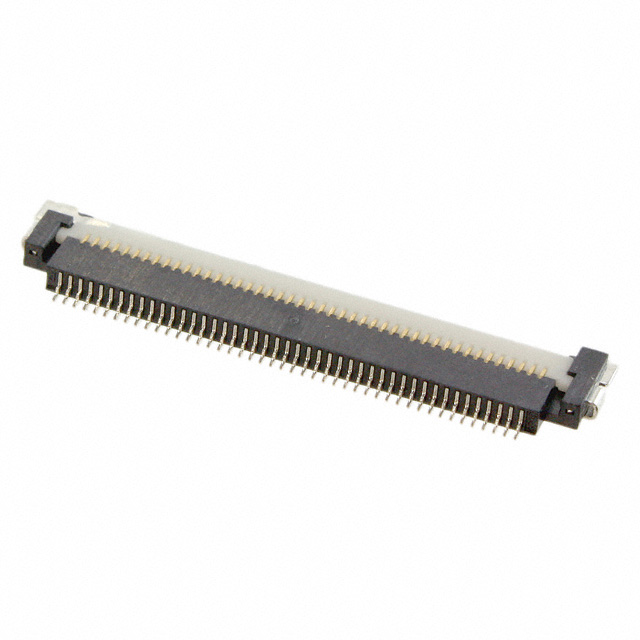

JAE Electronics FA5S045HP1	20	Black	White	0.8 A	Tapered	Glass Filled Nylon Polyamide (PA)	Solder	Right Angle Surface Mount	85 °C	-40 C	Gold	50 V	Solder Retention Zero Insertion Force (ZIF)	UL94 V-0	45	FPC	Copper Alloy	Contacts Bottom	1.45 mm	0.057 in	0.3 mm	0.02 "	0.5 mm	Flip Lock	Glass Filled Liquid Crystal Polymer (LCP)
