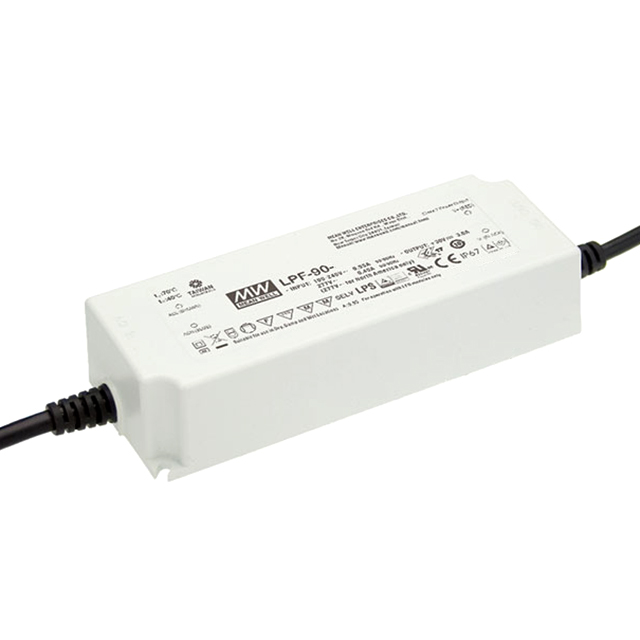

LPF-90 Series

Catalog

LED DRVR CC AC/DC 25.2-42V 2.15A

Part	Mounting Type	Features	Approval Agency	Number of Outputs	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Power (Watts)	Termination Style	Voltage - Output [Max]	Voltage - Output [Min]	Voltage - Input (Max) [Max]	Topology	Voltage - Input (Min) [Min]	Efficiency	Dimming	Current - Output (Max) [Max]	Current - Output (Max)
MEAN WELL USA Inc. LPF-90D-42	Chassis Mount	OCP OTP OVP	CB CCC CE cURus PSE TUV	1	Constant Current	161 mm	2.4 in	6.34 in	61 mm	1.42 "	36 mm	IP67	70 °C	-40 C	3750 VDC	90 W	Wire Leads	42 V	25.2	305 VAC	AC DC Converter	90 VAC	90.5 %	Analog PWM	2.15 A
MEAN WELL USA Inc. LPF-90-54	Chassis Mount	OCP OTP OVP	CB CCC CE PSE TUV UR	1	Constant Current Voltage	161 mm	2.4 in	6.34 in	61 mm	1.42 "	36 mm	IP67	70 °C	-40 C	3750 VDC	90 W	Wire Leads	54 V	32.4 V	305 VAC	AC DC Converter	90 VAC	91 %		1.67 A
MEAN WELL USA Inc. LPF-90D-15	Chassis Mount	OCP OTP OVP	CB CCC CE cURus PSE TUV	1	Constant Current	161 mm	2.4 in	6.34 in	61 mm	1.42 "	36 mm	IP67	70 °C	-40 C	3750 VDC	75 W	Wire Leads	15 V	9 V	305 VAC	AC DC Converter	90 VAC	89 %	Analog PWM		5 A
MEAN WELL USA Inc. LPF-90-15	Chassis Mount	OCP OTP OVP	CB CCC CE cURus PSE TUV	1	Constant Current Voltage	161 mm	2.4 in	6.34 in	61 mm	1.42 "	36 mm	IP67	70 °C	-40 C	3750 VDC	75 W	Wire Leads	15 V	9 V	305 VAC	AC DC Converter	90 VAC	89 %			5 A
MEAN WELL USA Inc. LPF-90-24	Chassis Mount	OCP OTP OVP	CB CCC CE cURus PSE TUV	1	Constant Current Voltage	161 mm	2.4 in	6.34 in	61 mm	1.42 "	36 mm	IP67	70 °C	-40 C	3750 VDC	90 W	Wire Leads	24 V	14.4 V	305 VAC	AC DC Converter	90 VAC	90.5 %		3.75 A
MEAN WELL USA Inc. LPF-90-30	Chassis Mount	OCP OTP OVP	CB CCC CE cURus PSE TUV	1	Constant Current Voltage	161 mm	2.4 in	6.34 in	61 mm	1.42 "	36 mm	IP67	70 °C	-40 C	3750 VDC	90 W	Wire Leads			305 VAC	AC DC Converter	90 VAC	91 %		3 A
MEAN WELL USA Inc. LPF-90D-54	Chassis Mount	OCP OTP OVP	CB CCC CE PSE TUV UR	1	Constant Current	161 mm	2.4 in	6.34 in	61 mm	1.42 "	36 mm	IP67	70 °C	-40 C	3750 VDC	90 W	Wire Leads	54 V	32.4 V	305 VAC	AC DC Converter	90 VAC	90.5 %	Analog PWM	1.67 A
MEAN WELL USA Inc. LPF-90-42	Chassis Mount	OCP OTP OVP	CB CCC CE cURus PSE TUV	1	Constant Current Voltage	161 mm	2.4 in	6.34 in	61 mm	1.42 "	36 mm	IP67	70 °C	-40 C	3750 VDC	90 W	Wire Leads	42 V	25.2	305 VAC	AC DC Converter	90 VAC	91 %		2.15 A
MEAN WELL USA Inc. LPF-90-36	Chassis Mount	OCP OTP OVP	CB CCC CE cURus PSE TUV	1	Constant Current Voltage	161 mm	2.4 in	6.34 in	61 mm	1.42 "	36 mm	IP67	70 °C	-40 C	3750 VDC	90 W	Wire Leads	36 V	21.6 V	305 VAC	AC DC Converter	90 VAC	91 %		2.5 A
MEAN WELL USA Inc. LPF-90D-48	Chassis Mount	OCP OTP OVP	CB CCC CE PSE TUV UR	1	Constant Current	161 mm	2.4 in	6.34 in	61 mm	1.42 "	36 mm	IP67	70 °C	-40 C	3750 VDC	90 W	Wire Leads	48 V	28.8 V	305 VAC	AC DC Converter	90 VAC	90.5 %	Analog PWM	1.88 A
