R19172 Series

Catalog

N MALE - 7-16 MALE STRAIGHT ADAP

Part	Body Finish	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Center Contact Material	Dielectric Material	Convert From (Adapter End)	Adapter Type	Center Contact Plating	Adapter Series	Conversion Type	Impedance	Mounting Type	Style	Center Gender	Convert To (Adapter End)	Frequency - Max [Max]

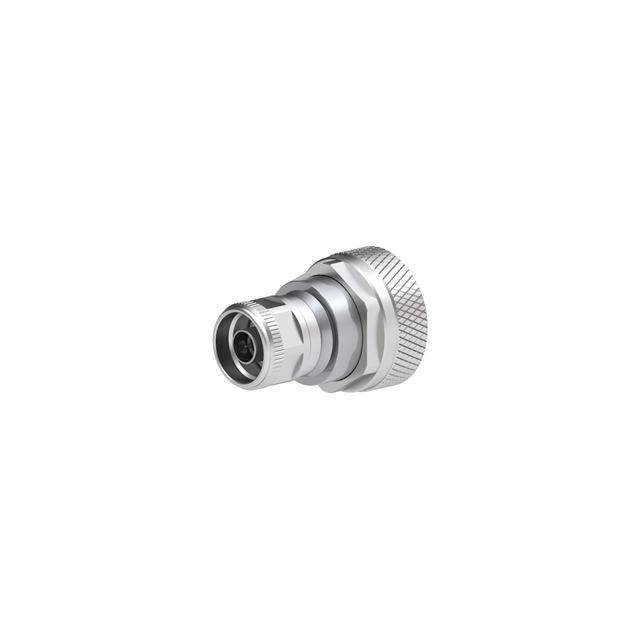

Radiall USA, Inc. R191721000	White Bronze	500	155 C	-55 C	Brass	Beryllium Copper	Polytetrafluoroethylene (PTFE)	N Plug Male Pin	Plug to Plug	Silver	N to 7/16	Between Series	50 Ohms	Free Hanging (In-Line)	Straight	Male to Male	7/16 Plug Male Pin	7.5 GHz

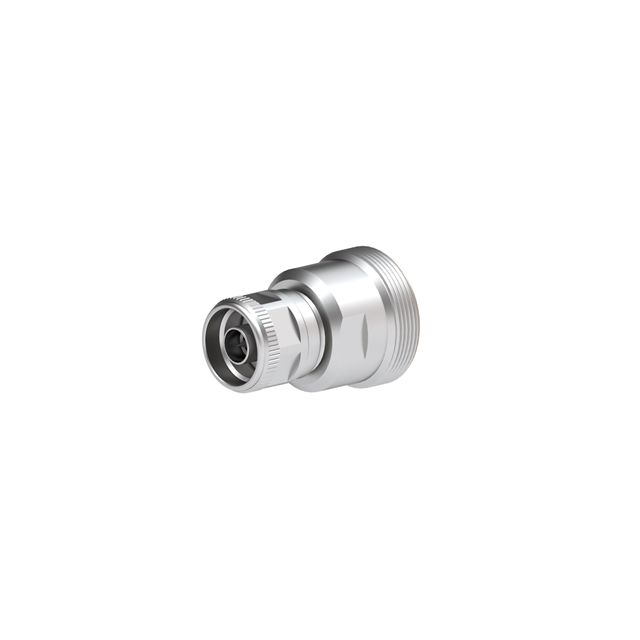

Radiall USA, Inc. R191720000	White Bronze	500	155 C	-55 C	Brass	Beryllium Copper	Polytetrafluoroethylene (PTFE)	N Plug Male Pin	Plug to Jack	Silver	N to 7/16	Between Series	50 Ohms	Free Hanging (In-Line)	Straight		7/16 Jack Female Socket	7.5 GHz

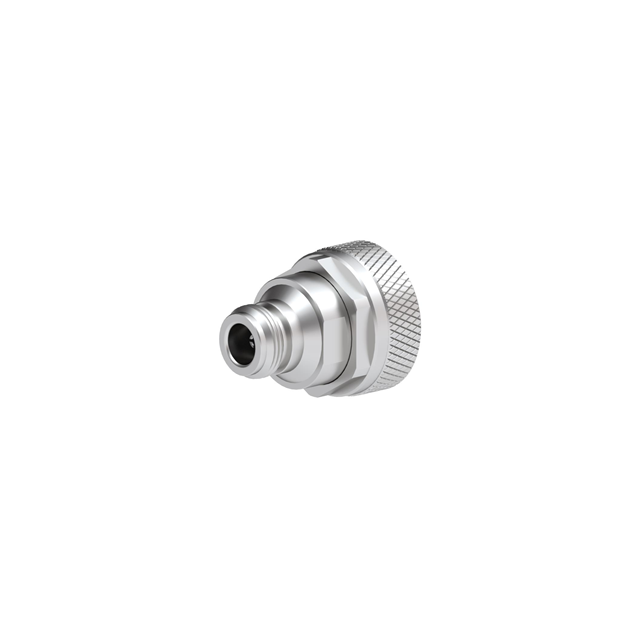

Radiall USA, Inc. R191722000	White Bronze	500	155 C	-55 C	Brass	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Female Socket N Jack	Plug to Jack	Silver	N to 7/16	Between Series	50 Ohms	Free Hanging (In-Line)	Straight		7/16 Plug Male Pin	7.5 GHz

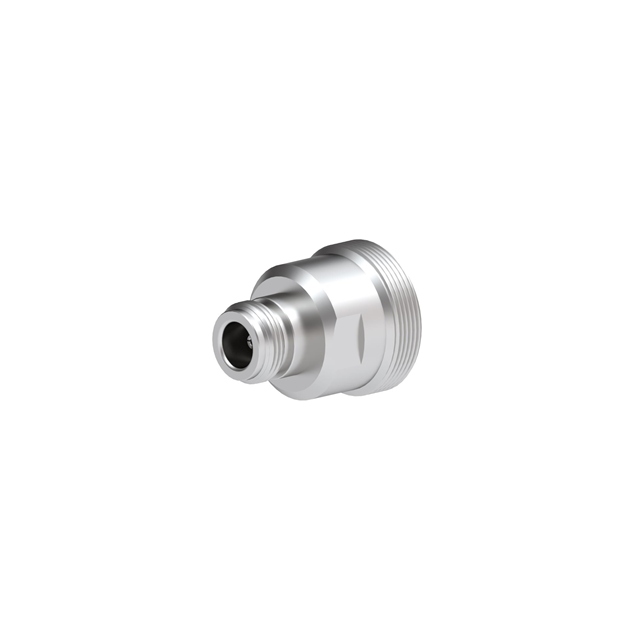

Radiall USA, Inc. R191723000	White Bronze	500	155 C	-55 C	Brass	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Female Socket N Jack	Jack to Jack	Silver	N to 7/16	Between Series	50 Ohms	Free Hanging (In-Line)	Straight	Female to Female	7/16 Jack Female Socket	7.5 GHz
