M20-995 Series

Catalog

HEADER CONNECTOR,PCB MOUNT,RECEPT,10 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL ROHS COMPLIANT: YES

Part	Connector Type	Insulation Color	Insulation Material	Contact Material	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Finish - Mating	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Contact Length - Post	Contact Length - Post	Contact Type	Material Flammability Rating	Number of Positions Loaded	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Shrouding	Number of Positions	Contact Shape	Mounting Type	Termination	Contact Finish - Post
Harwin Inc. M20-9950545	Header Cuttable	Black	Nylon 6T Polyamide (PA6T)	Brass	0.2 in	5.08 mm	-40 C	105 ░C	Push-Pull	Gold	2	0.1 in	2.54 mm	Board to Board Cable	0.118 in	3 mm	Male Pin	UL94 V-0	All	3 A	0.1 "	2.54 mm	0.24 in	6.1 mm	Unshrouded	10	Square	Right Angle Through Hole	Solder
Harwin Inc. M20-9953645	Header Cuttable	Black	Nylon 6T Polyamide (PA6T)	Brass	0.2 in	5.08 mm	-40 C	105 ░C	Push-Pull	Gold	2	0.1 in	2.54 mm	Board to Board Cable	0.118 in	3 mm	Male Pin	UL94 V-0	All	3 A	0.1 "	2.54 mm	0.24 in	6.1 mm	Unshrouded	72	Square	Right Angle Through Hole	Solder
Harwin Inc. M20-9950845	Header Cuttable	Black	Nylon 6T Polyamide (PA6T)	Brass	0.2 in	5.08 mm	-40 C	105 ░C	Push-Pull	Gold	2	0.1 in	2.54 mm	Board to Board Cable	0.118 in	3 mm	Male Pin	UL94 V-0	All	3 A	0.1 "	2.54 mm	0.24 in	6.1 mm	Unshrouded	16	Square	Right Angle Through Hole	Solder
Harwin Inc. M20-9951046	Header Cuttable	Black	Nylon 6T Polyamide (PA6T)	Brass	0.2 in	5.08 mm	-40 C	105 ░C	Push-Pull		2	0.1 in	2.54 mm	Board to Board Cable	0.118 in	3 mm	Male Pin	UL94 V-0	All	3 A	0.1 "	2.54 mm	0.24 in	6.1 mm	Unshrouded	20	Square	Right Angle Through Hole	Solder	Tin
Harwin Inc. M20-9951346	Header Cuttable	Black	Nylon 6T Polyamide (PA6T)	Brass	0.2 in	5.08 mm	-40 C	105 ░C	Push-Pull		2	0.1 in	2.54 mm	Board to Board Cable	0.118 in	3 mm	Male Pin	UL94 V-0	All	3 A	0.1 "	2.54 mm	0.24 in	6.1 mm	Unshrouded	26	Square	Right Angle Through Hole	Solder	Tin

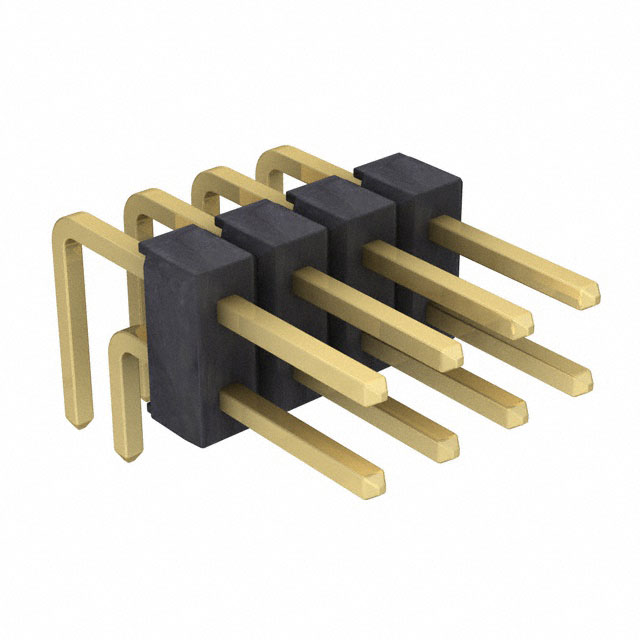

Harwin Inc. M20-9950445	Header Cuttable	Black	Nylon 6T Polyamide (PA6T)	Brass	0.2 in	5.08 mm	-40 C	105 ░C	Push-Pull	Gold	2	0.1 in	2.54 mm	Board to Board Cable	0.118 in	3 mm	Male Pin	UL94 V-0	All	3 A	0.1 "	2.54 mm	0.24 in	6.1 mm	Unshrouded	8	Square	Right Angle Through Hole	Solder
Harwin Inc. M20-9951045	Header Cuttable	Black	Nylon 6T Polyamide (PA6T)	Brass	0.2 in	5.08 mm	-40 C	105 ░C	Push-Pull	Gold	2	0.1 in	2.54 mm	Board to Board Cable	0.118 in	3 mm	Male Pin	UL94 V-0	All	3 A	0.1 "	2.54 mm	0.24 in	6.1 mm	Unshrouded	20	Square	Right Angle Through Hole	Solder

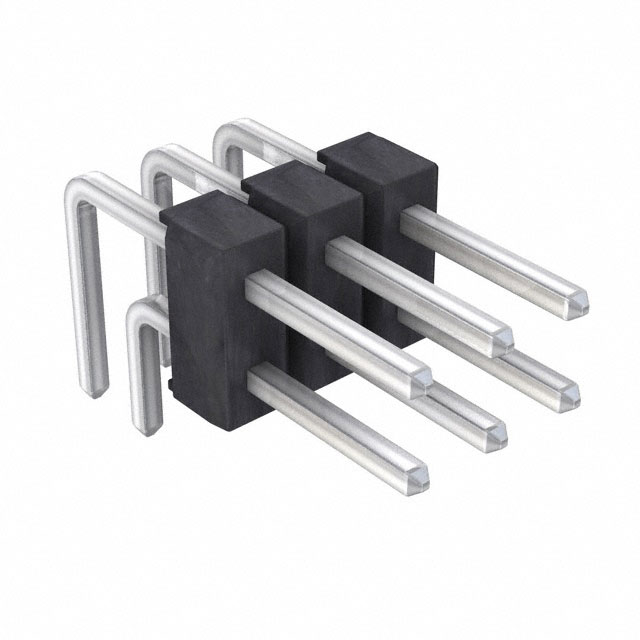

Harwin Inc. M20-9950346	Header Cuttable	Black	Nylon 6T Polyamide (PA6T)	Brass	0.2 in	5.08 mm	-40 C	105 ░C	Push-Pull		2	0.1 in	2.54 mm	Board to Board Cable	0.118 in	3 mm	Male Pin	UL94 V-0	All	3 A	0.1 "	2.54 mm	0.24 in	6.1 mm	Unshrouded	6	Square	Right Angle Through Hole	Solder	Tin
Harwin Inc. M20-9950846	Header Cuttable	Black	Nylon 6T Polyamide (PA6T)	Brass	0.2 in	5.08 mm	-40 C	105 ░C	Push-Pull		2	0.1 in	2.54 mm	Board to Board Cable	0.118 in	3 mm	Male Pin	UL94 V-0	All	3 A	0.1 "	2.54 mm	0.24 in	6.1 mm	Unshrouded	16	Square	Right Angle Through Hole	Solder	Tin
Harwin Inc. M20-9950745	Header Cuttable	Black	Nylon 6T Polyamide (PA6T)	Brass	0.2 in	5.08 mm	-40 C	105 ░C	Push-Pull	Gold	2	0.1 in	2.54 mm	Board to Board Cable	0.118 in	3 mm	Male Pin	UL94 V-0	All	3 A	0.1 "	2.54 mm	0.24 in	6.1 mm	Unshrouded	14	Square	Right Angle Through Hole	Solder
