SSCDANT Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SENSOR 30PSIG 0.19" 12BIT 8DIP

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Port Size	Port Size	Pressure Type	Output Type	Accuracy	Port Style	Operating Temperature [Max]	Operating Temperature [Min]	Output	Supplier Device Package	Package / Case	Package / Case	Operating Pressure	Operating Pressure	Features	Applications	Maximum Pressure [Max]	Maximum Pressure [Max]	Termination Style	Output [Min]	Output [Max]	Maximum Pressure	Maximum Pressure	Operating Pressure [custom]	Operating Pressure [custom]
Honeywell Sensing and Productivity Solutions SSCDANT030PG2A3	3.6 V	3 V	Through Hole	4.93 mm	0.19 "	Vented Gauge	I2C	0.25 %	Barbed	85 °C	-40 °C	12 b	8-DIP	0.524 " 13.3 mm	8-DIP	206.84 kPa	30 PSI	Amplified Output Temperature Compensated	Board Mount	60 PSI	413.69 kPa	PC Pin
Honeywell Sensing and Productivity Solutions SSCDANT015PDAA3	3.6 V	3 V	Through Hole	4.93 mm	0.19 "	Differential	Analog Voltage	0.25 %	Barbed	85 °C	-40 °C		8-DIP	0.524 " 13.3 mm	8-DIP	103.42 kPa	15 PSI	Amplified Output Temperature Compensated	Board Mount			PC Pin	0.33 V	2.97 V	±30PSI	±206.84kPa
Honeywell Sensing and Productivity Solutions SSCDANT030PASA5	5.25 V	4.75 V	Through Hole	4.93 mm	0.19 "		SPI	0.25 %	Barbed	85 °C	-40 °C	12 b	8-DIP	0.524 " 13.3 mm	8-DIP	206.84 kPa	30 PSI	Amplified Output Temperature Compensated	Board Mount	60 PSI	413.69 kPa	PC Pin

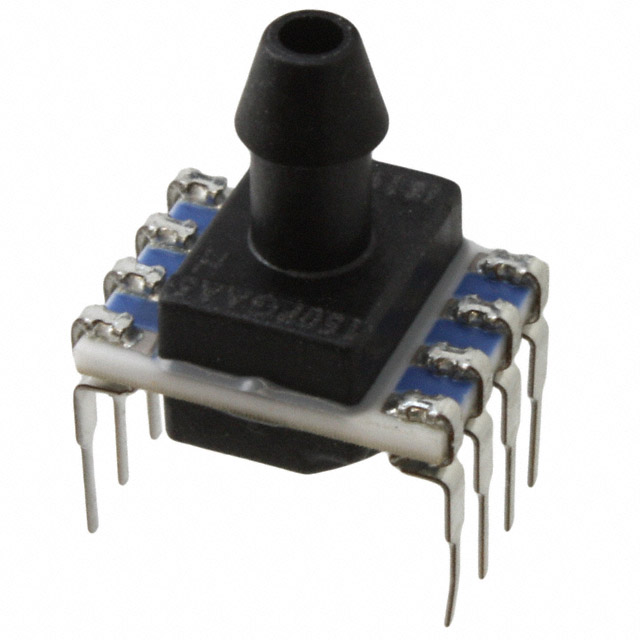

Honeywell Sensing and Productivity Solutions SSCDANT150PGAA5	5.25 V	4.75 V	Through Hole	4.93 mm	0.19 "	Vented Gauge	Analog Voltage	0.25 %	Barbed	85 °C	-40 °C		8-DIP	0.524 " 13.3 mm	8-DIP	1034.21 kPa	150 PSI	Amplified Output Temperature Compensated	Board Mount	250 PSI	1723.69 kPa	PC Pin	0.5 V	4.5 V
Honeywell Sensing and Productivity Solutions SSCDANT015PGAA3	3.6 V	3 V	Through Hole	4.93 mm	0.19 "	Vented Gauge	Analog Voltage	0.25 %	Barbed	85 °C	-40 °C		8-DIP	0.524 " 13.3 mm	8-DIP			Amplified Output Temperature Compensated	Board Mount	30 PSI	206.84 kPa	PC Pin	0.33 V	2.97 V			15 PSI	103.42 kPa
