C8RRG-1 Series

Catalog

DIP CABLE - CDR16G/AE16G/CDR16G

Part	Features	Usage	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Number of Rows [custom]	Number of Positions	Shielding	Length [x]	Length [x]	Contact Finish	Length	Length	Color
CW Industries C8RRG-1618G	Strain Relief	Board In Socket (0.3")	DIP to DIP Reversed	0.25 Ám	10 Áin	IDC	0.05 in	1.27 mm	0.1 in	2.54 mm	2	16	Unshielded	457.2 mm	1.5 ft	Gold
CW Industries C8RRG-1636G	Strain Relief	Board In Socket (0.3")	DIP to DIP Reversed	0.25 Ám	10 Áin	IDC	0.05 in	1.27 mm	0.1 in	2.54 mm	2	16	Unshielded			Gold	91.44 cm	3 ft
CW Industries C8RRG-1618M	Strain Relief	Board In Socket (0.3")	DIP to DIP Reversed	0.25 Ám	10 Áin	IDC	0.05 in	1.27 mm	0.1 in	2.54 mm	2	16	Unshielded	457.2 mm	1.5 ft	Gold			Multiple Ribbon

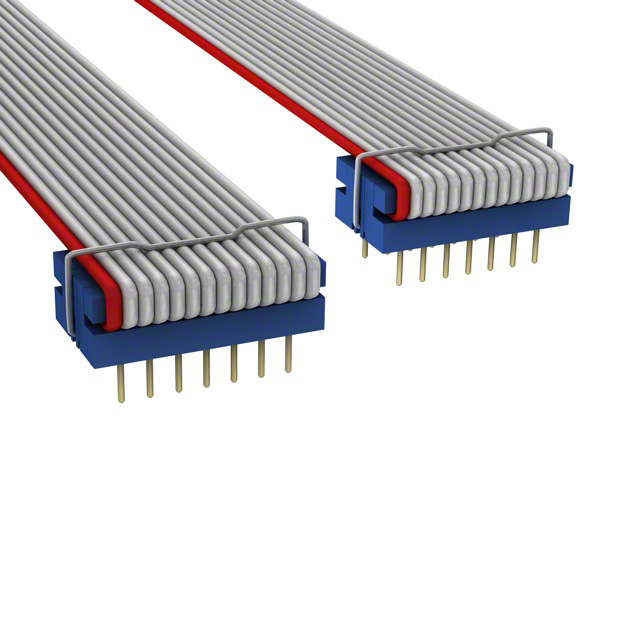

CW Industries C8RRG-1418G	Strain Relief	Board In Socket (0.3")	DIP to DIP Reversed	0.25 Ám	10 Áin	IDC	0.05 in	1.27 mm	0.1 in	2.54 mm	2	14	Unshielded	457.2 mm	1.5 ft	Gold
CW Industries C8RRG-1636M	Strain Relief	Board In Socket (0.3")	DIP to DIP Reversed	0.25 Ám	10 Áin	IDC	0.05 in	1.27 mm	0.1 in	2.54 mm	2	16	Unshielded			Gold	91.44 cm	3 ft	Multiple Ribbon

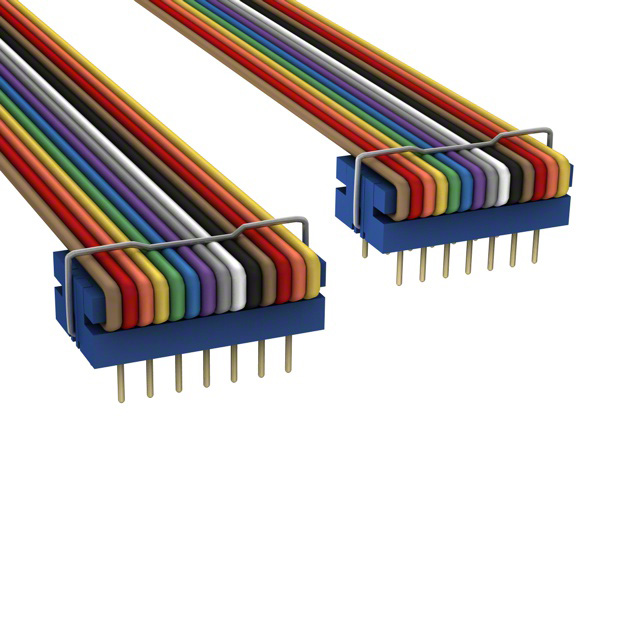

CW Industries C8RRG-1436M	Strain Relief	Board In Socket (0.3")	DIP to DIP Reversed	0.25 Ám	10 Áin	IDC	0.05 in	1.27 mm	0.1 in	2.54 mm	2	14	Unshielded			Gold	91.44 cm	3 ft	Multiple Ribbon
