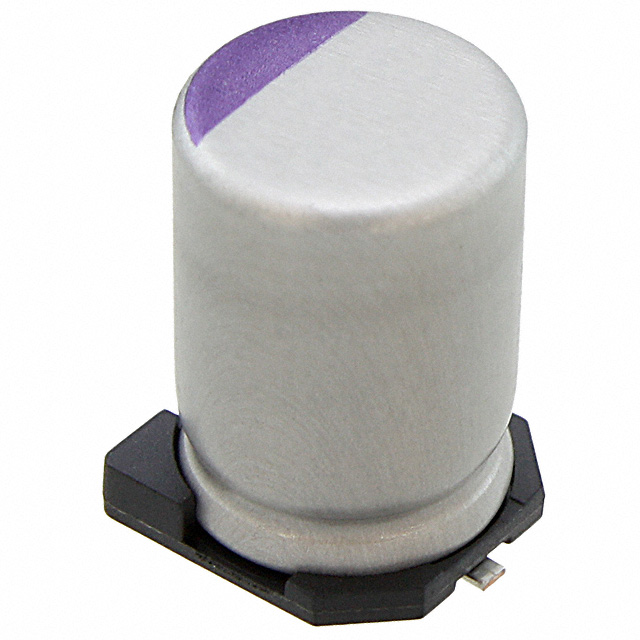

20SVPF Series

Catalog

CAP, 560UF, 20VDC, ALU POLYMER, SMD

Part	ESR (Equivalent Series Resistance)	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Ripple Current @ Low Frequency	Voltage - Rated	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Capacitance	Lifetime @ Temp.	Tolerance	Height - Seated (Max)
Panasonic Electronic Components 20SVPF560M	12 mOhms	Surface Mount	0.394 in	10 mm	5.4 A	Polymer	General Purpose	-55 C	105 ░C	0.5 in	12.7 mm	Radial Can - SMD	270 mA	20 V	0.406 "	0.406 in	10.3 mm	10.3 mm	560 µF	5000 Hrs	20 %
Panasonic Electronic Components 20SVPF390M	14 mOhms	Surface Mount	0.315 in	8 mm	4.95 A	Polymer	General Purpose	-55 C	105 ░C	0.472 in		Radial Can - SMD	247.5 mA	20 V	0.327 in	0.327 in	8.3 mm	8.3 mm	390 µF	5000 Hrs	20 %	12 mm
Panasonic Electronic Components 20SVPF180M	25 mOhm	Surface Mount	0.315 in	8 mm	3.2 A	Polymer	General Purpose	-55 C	105 ░C	0.276 in	7 mm	Radial Can - SMD	160 mA	20 V	0.327 in	0.327 in	8.3 mm	8.3 mm	180 µF	5000 Hrs 5000 Hrs	20 % 20 %
