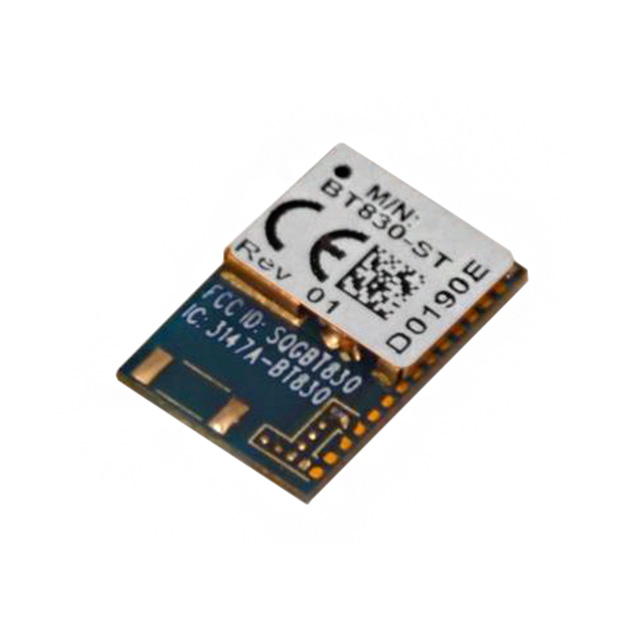

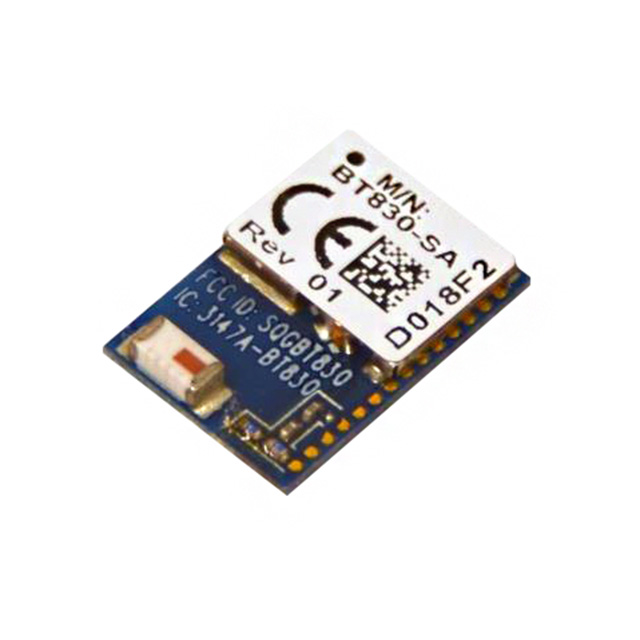

BT830 Series
Manufacturer: Ezurio LLC
Beta
⌘K
BLUETOOTH V4.0 (BLE) + EDR SMART SOC CLASS I 3MBPS 3.3V 30-PIN SMD MODULE EACH
| Part | Package / Case | Data Rate | Antenna Type | Serial Interfaces | Current - Transmitting | Mounting Type | Current - Receiving | Utilized IC / Part | RF Family/Standard | Operating Temperature [Max] | Operating Temperature [Min] | Sensitivity | Protocol | Frequency | Power - Output | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ezurio LLC | Module | 3 Mbps | Chip Integrated | I2S SPI UART | 7.1 mA | Surface Mount | 7.1 mA | CSR8811 | Bluetooth | 85 °C | -30 ░C | -89 dBm | Bluetooth v4.0 | 2.4 GHz | 7 dBm | 3.3 V |
 Ezurio LLC | Module | 3 Mbps | Antenna Not Included Castellation | I2S SPI UART | 7.1 mA | Surface Mount | 7.1 mA | CSR8811 | Bluetooth | 85 °C | -30 ░C | -89 dBm | Bluetooth v4.0 | 2.4 GHz | 7 dBm | 3.3 V |
 Ezurio LLC | Module | 3 Mbps | Antenna Not Included Castellation | I2S SPI UART | 7.1 mA | Surface Mount | 7.1 mA | CSR8811 | Bluetooth | 85 °C | -30 ░C | -89 dBm | Bluetooth v4.0 | 2.4 GHz | 7 dBm | 3.3 V |
Ezurio LLC | Module | 3 Mbps | Antenna Not Included Castellation | I2S SPI UART | 7.1 mA | Surface Mount | 7.1 mA | CSR8811 | Bluetooth | 85 °C | -30 ░C | -89 dBm | Bluetooth v4.0 | 2.4 GHz | 7 dBm | 3.3 V |
Ezurio LLC | Module | 3 Mbps | Chip Integrated | I2C SPI UART | 7.1 mA | Surface Mount | 7.1 mA | CSR8811 | Bluetooth | 85 °C | -30 ░C | -89 dBm | Bluetooth v4.0 | 2.4 GHz | 7 dBm | 3.3 V |
Ezurio LLC | Module | 3 Mbps | Chip Integrated | I2C SPI UART | 7.1 mA | Surface Mount | 7.1 mA | CSR8811 | Bluetooth | 85 °C | -30 ░C | -89 dBm | Bluetooth v4.0 | 2.4 GHz | 7 dBm | 3.3 V |
Ezurio LLC | Module | 3 Mbps | Antenna Not Included Castellation | I2S SPI UART | 7.1 mA | Surface Mount | 7.1 mA | CSR8811 | Bluetooth | 85 °C | -30 ░C | -89 dBm | Bluetooth v4.0 | 2.4 GHz | 7 dBm | 3.3 V |
