LM2731 Series

Catalog

0.6/1.6 MHZ BOOST CONVERTERS WITH 22V INTERNAL FET SWITCH IN SOT-23

Part	Current - Output	Voltage - Input (Max) [Max]	Supplier Device Package	Topology	Voltage - Input (Min) [Min]	Number of Outputs	Frequency - Switching	Output Configuration	Package / Case	Voltage - Output (Max) [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Min/Fixed)	Output Type	Function	Utilized IC / Part	Main Purpose	Regulator Topology	Outputs and Type	Outputs and Type	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Board Type
Texas Instruments LM2731XMF	1.8 A	14 V	SOT-23-5	Boost	2.7 V	1	1.6 MHz	Positive	SC-74A SOT-753	22 V	Surface Mount	-40 °C	125 ¯C	2.7 V	Adjustable	Step-Up

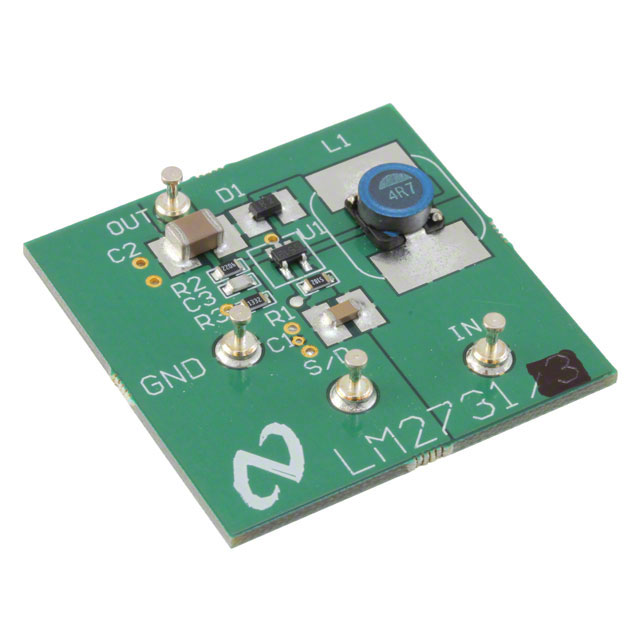

Texas Instruments LM2731YEVAL/NOPB	1.8 A						600 kHz										LM2731	DC/DC Step Up	Boost	Non-Isolated	1	14 V	2.7 V	Board(s)	Fully Populated
Texas Instruments LM2731YMF	1.8 A	14 V	SOT-23-5	Boost	2.7 V	1	600 kHz	Positive	SC-74A SOT-753	22 V	Surface Mount	-40 °C	125 ¯C	1.23 V	Adjustable	Step-Up
Texas Instruments LM2731YEVAL	1.8 A						600 kHz										LM2731	DC/DC Step Up	Boost	Non-Isolated	1	14 V	2.7 V	Board(s)	Fully Populated
Texas Instruments LM2731XMF/NOPB	1.8 A	14 V	SOT-23-5	Boost	2.7 V	1	1.6 MHz	Positive	SC-74A SOT-753	22 V	Surface Mount	-40 °C	125 ¯C	2.7 V	Adjustable	Step-Up
Texas Instruments LM2731XMFX	1.8 A	14 V	SOT-23-5	Boost	2.7 V	1	1.6 MHz	Positive	SC-74A SOT-753	22 V	Surface Mount	-40 °C	125 ¯C	2.7 V	Adjustable	Step-Up
Texas Instruments LM2731XEVAL	1.8 A						1.6 MHz										LM2731	DC/DC Step Up	Boost	Non-Isolated	1	14 V	2.7 V	Board(s)	Fully Populated
Texas Instruments LM2731YMF/NOPB	1.8 A	14 V	SOT-23-5	Boost	2.7 V	1	600 kHz	Positive	SC-74A SOT-753	22 V	Surface Mount	-40 °C	125 ¯C	2.7 V	Adjustable	Step-Up
Texas Instruments LM2731XMFX/NOPB	1.8 A	14 V	SOT-23-5	Boost	2.7 V	1	1.6 MHz	Positive	SC-74A SOT-753	22 V	Surface Mount	-40 °C	125 ¯C	2.7 V	Adjustable	Step-Up
